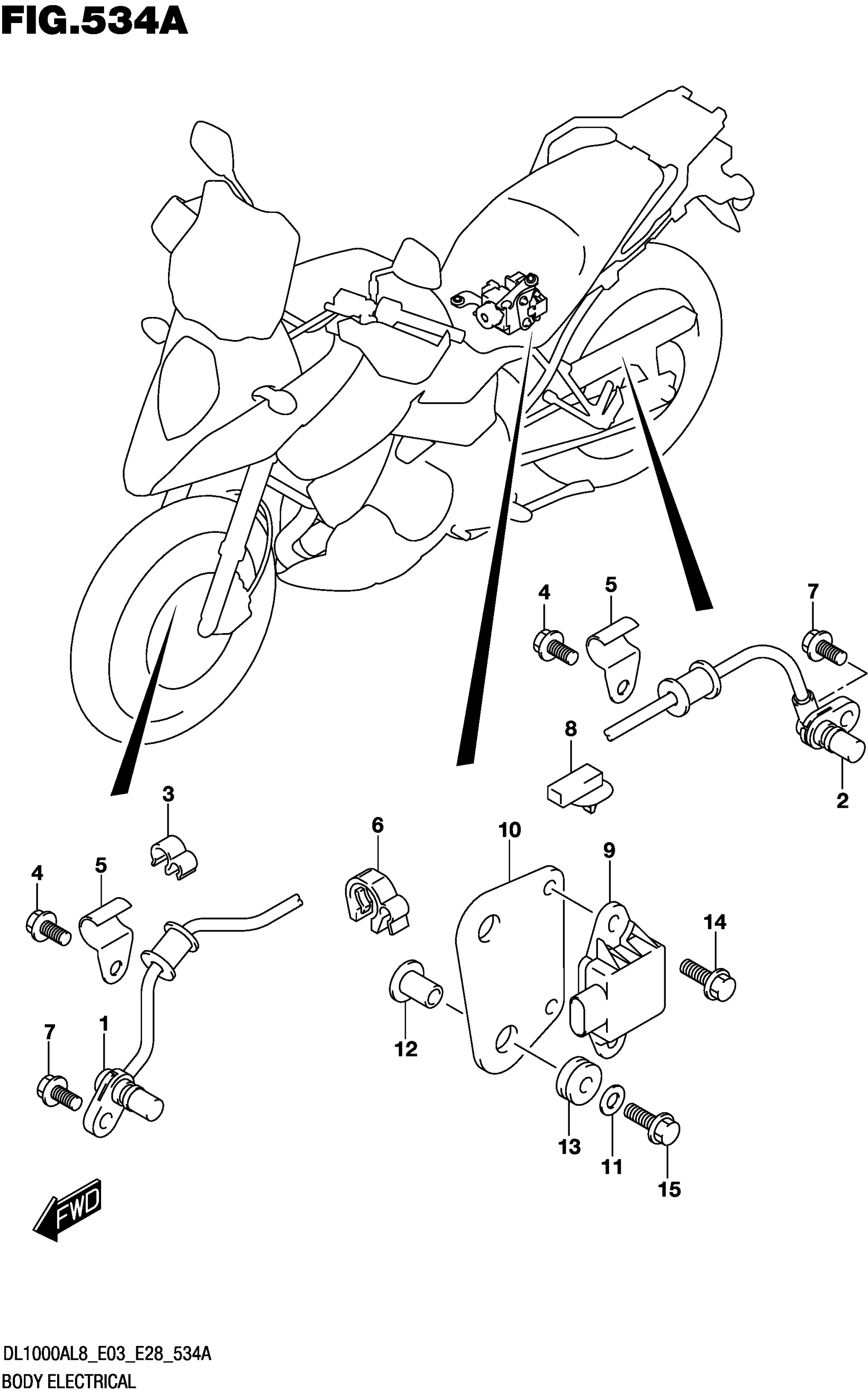

Suzuki DL1000AL8 (2018) BODY ELECTRICAL Diagram

#

Description
Price

1

SENSOR, FRONT WHEEL ABS

55710-31J10

$211.40

2

SENSOR, REAR WHEEL ABS

65710-31J10

Unavailable

3

CLAMP

09408-00266

$2.51

4

BOLT

01547-0612A

$2.03

5

CLAMP, SENSOR LEAD

55731-23H00

Unavailable

6

CLAMP

09408-00307

$2.97

7

BOLT

01547-0612A

$2.03

8

CLAMP

39988-62R00

$3.07

9

SENSOR, INERTIAL

55750-31J00

Unavailable

10

BRACKET, INERTIAL SENSOR

55760-31J00

Unavailable

11

WASHER (6.5X18X1.6)

09160-06109

$1.49

12

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

13

CUSHION

09320-08501

$3.23

14

BOLT

01550-0616A

$1.97

15

BOLT

01550-0620A

$1.97
