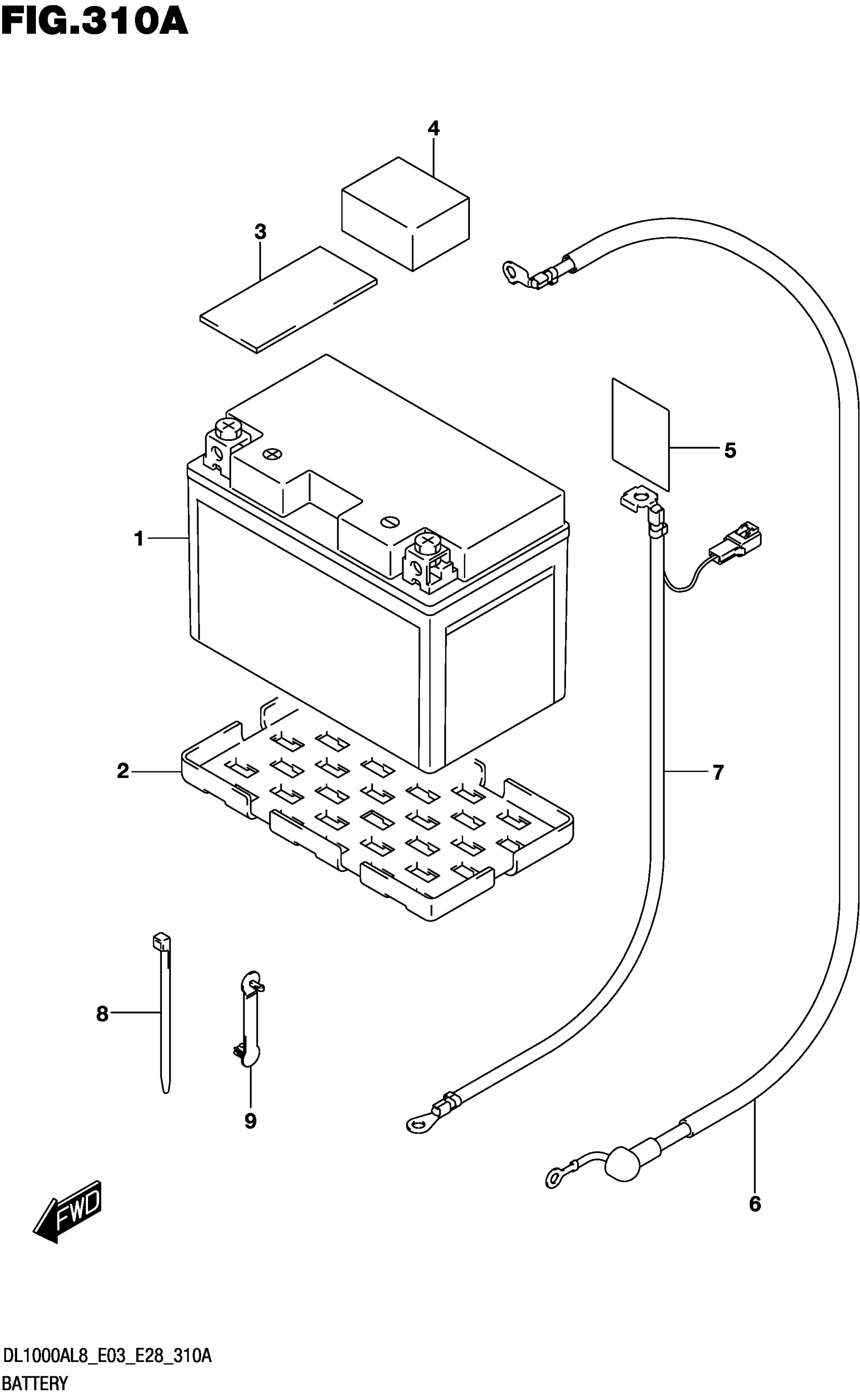

Suzuki DL1000AL8 (2018) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (FTZ14S,12V/11.2 This part replaces 33620-31J00.

33620-31J01

$119.69

1

BATTERY ASSY (FTZ14S,12V/11.2 This part replaces 33620-31J00.

33620-31J01

$119.69

2

PROTECTOR,BATTERY

33652-16G00

$11.95

3

PROTECTOR

33652-28C00

Unavailable

4

PROTECTOR, BATTRY

33652-31J00

Unavailable

5

CUSHION (50X42X2.0)

51553-15D40

$7.18

6

WIRE, STARTER MOTOR LEAD

33810-31J10

Unavailable

7

WIRE, BATTERY MINUS

33860-31J10

Unavailable

8

CLAMP (L:145)

09407-14407

$3.57

9

CLAMP (L:63)

36651-48E00

$3.25
