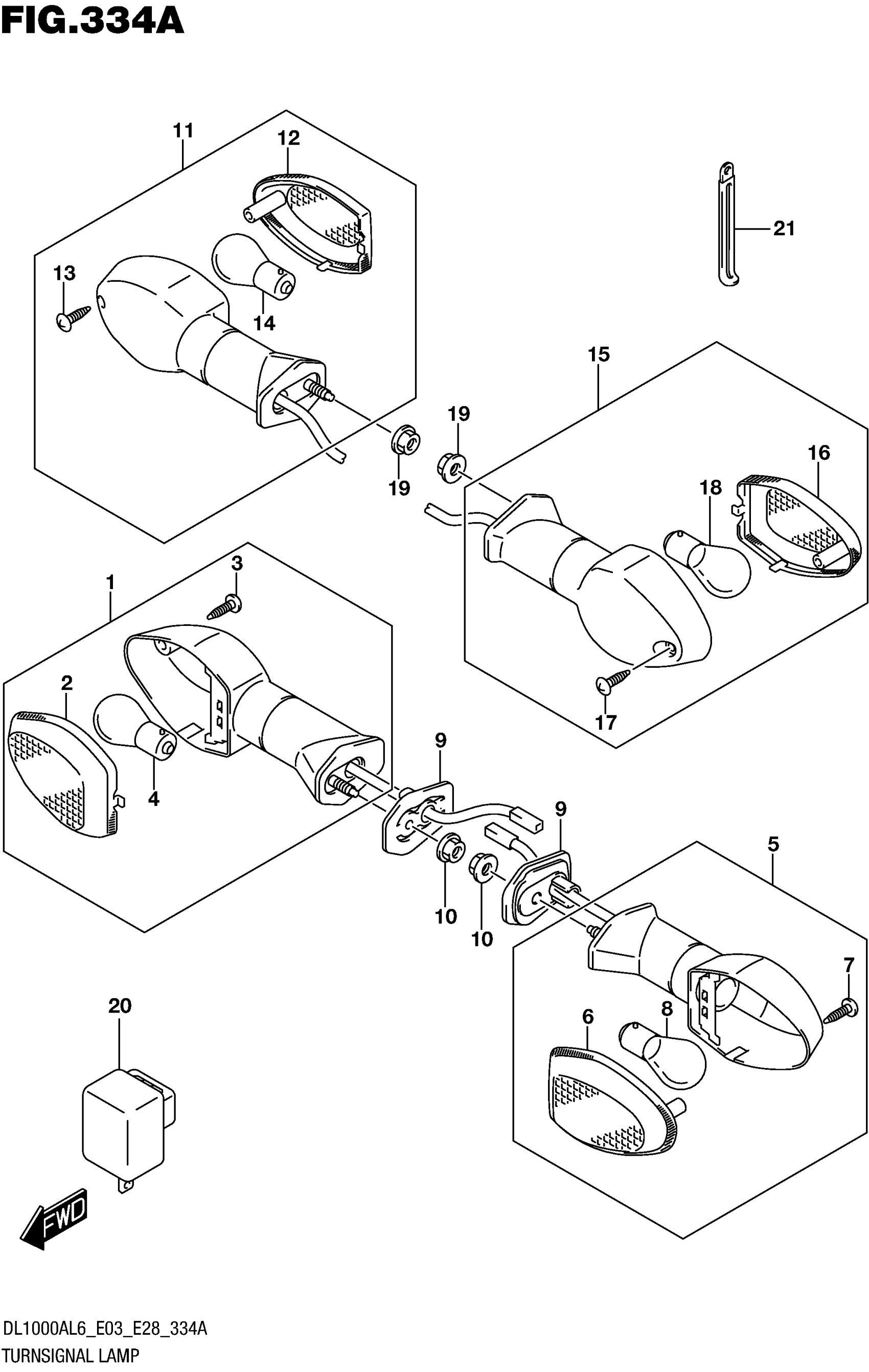

Suzuki DL1000AL6 (2016) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FR TURNSIGNAL RH

35601-08JA0

$99.75

2

.LENS

35612-08JA0

$12.47

3

.SCREW

03211-0414B

$1.77

4

.BULB (12V,21W)

09471-12186

$12.66

5

LAMP ASSY, FR TURNSIGNAL LH

35602-08JA0

$101.17

6

.LENS

35632-08JA0

$12.47

7

.SCREW

03211-0414B

$1.77

8

.BULB (12V,21W)

09471-12186

$12.66

9

PLATE, FR TURNSIGNAL

35629-18G00

$2.42

10

NUT

08316-1005A

$2.19

11

LAMP ASSY, RR TURNSIGNAL RH

35603-08JA0

$110.53

12

.LENS

35632-08JA0

$12.47

13

.SCREW

03211-0414B

$1.77

14

.BULB (12V,21W)

09471-12186

$12.66

15

LAMP ASSY, RR TURNSIGNAL LH

35604-08JA0

$110.53

16

.LENS

35612-08JA0

$12.47

17

.SCREW

03211-0414B

$1.77

18

.BULB (12V,21W)

09471-12186

$12.66

19

NUT

08316-1005A

$2.19

20

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-06F00.

38610-06F01

$82.18

21

CLAMP (L:45)

09404-06429

$1.83
