Description

Price

1

STAND,PROP

42310-31J11

$135.92

2

BOLT (10X37.5)

09111-10058

$6.66

3

NUT, PROP STAND

42321-03FK0

$5.17

4

SPRING | NO.1

09443-14058

$5.64

5

SPRING | NO.2

09443-19011

$5.75

6

BRACKET,PROP STAND

42330-31J00

$111.43

7

BOLT

01550-1235A

$3.75

8

PEDAL, BRAKE

43111-31J00

$83.13

9

WASHER (18X24X1)

09160-18022

$2.92

10

SPRING

09448-41005

$4.32

11

CIRCLIP

08331-3118A

$2.13

12

BRACKET,STOP LAMP SWITCH

43251-31J00

$7.47

13

BOLT

01550-0612A

$1.97

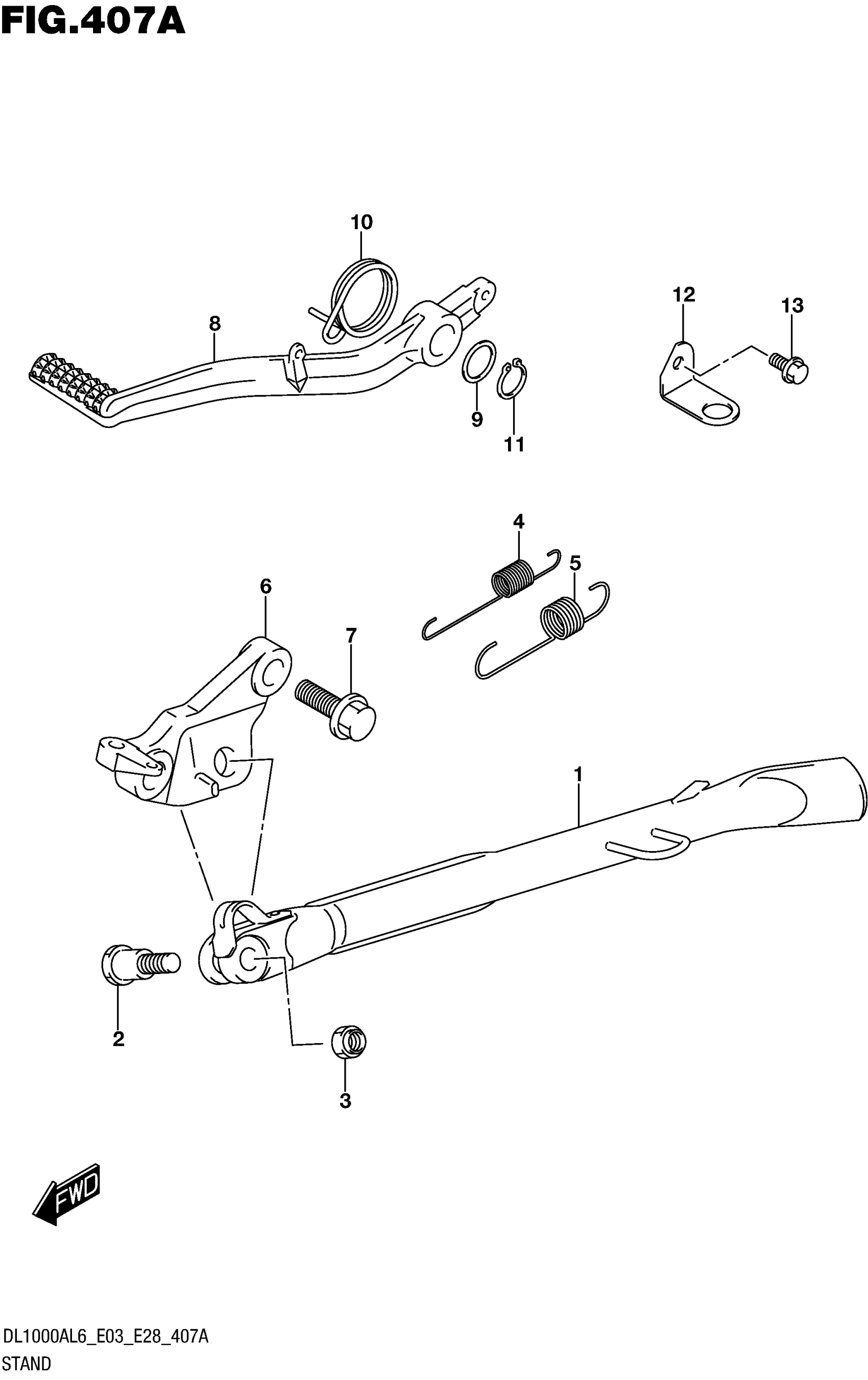

Suzuki DL1000AL6 (2016) STAND Diagram

STAND,PROP

BOLT (10X37.5)

NUT, PROP STAND

SPRING | NO.1

SPRING | NO.2

BRACKET,PROP STAND

BOLT

PEDAL, BRAKE

WASHER (18X24X1)

SPRING

CIRCLIP

BRACKET,STOP LAMP SWITCH

BOLT
