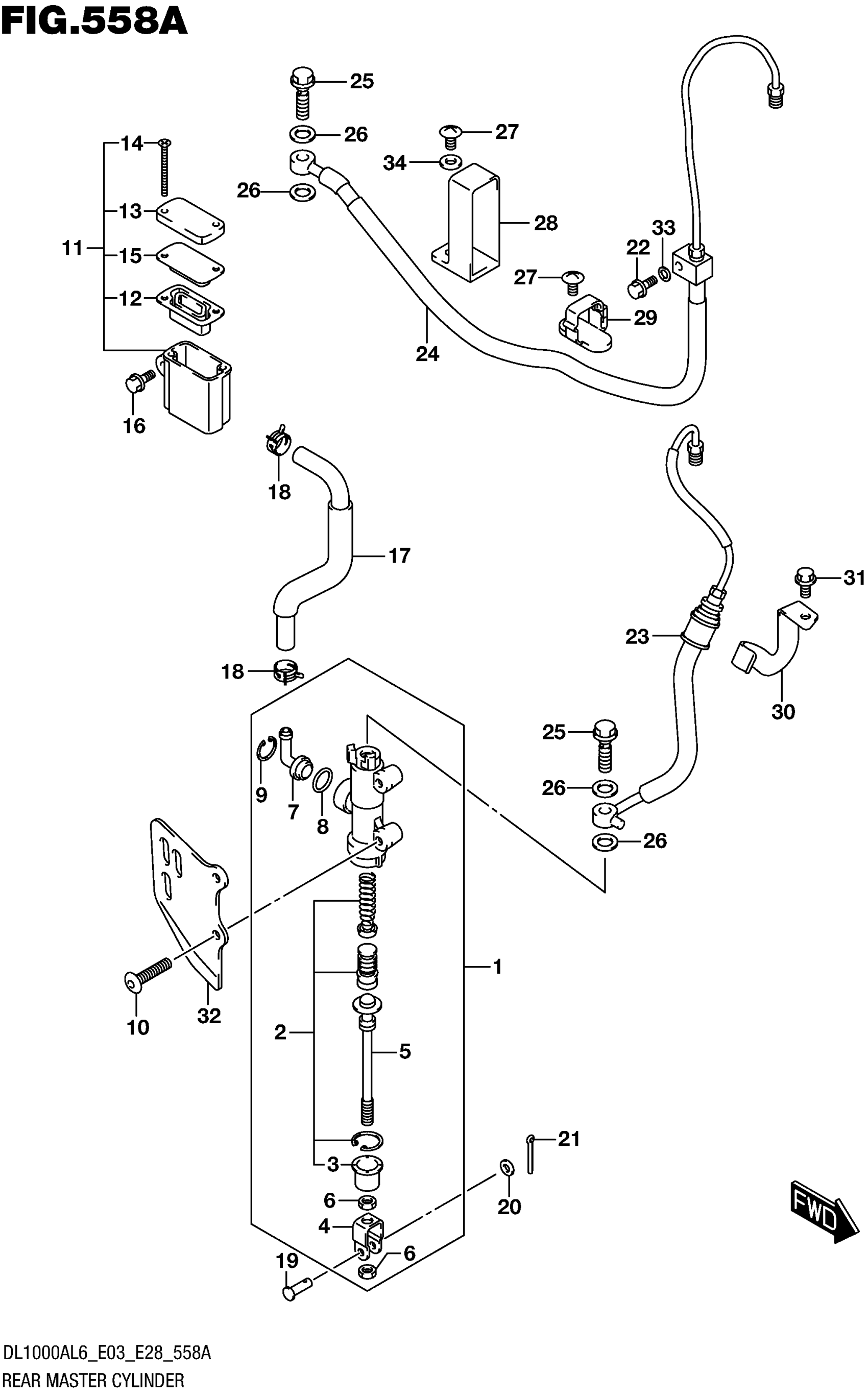

Suzuki DL1000AL6 (2016) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-31J00

$267.83

2

.PISTON / CAP SET

69600-34830

$40.18

3

.BOOT

69691-00A00

$5.00

4

.YOKE

69692-44H00

$19.03

5

.ROD, PUSH

69670-31J00

$38.28

6

.NUT

69693-05A00

$1.86

7

.CONNECTOR

69672-00B20

$6.42

8

.O RING

69686-34200

$2.80

9

.CIRCLIP

69674-00B20

$3.73

10

SCREW (6X25)

09139-06029

$4.84

11

TANK ASSY,RESERVOIR This part replaces 69740-01H10.

69740-18K00

$25.72

12

.DIAPHRAGM

69667-01H00

$7.12

13

.CAP

69669-01H00

Unavailable

14

.SCREW

69689-01H00

$5.02

15

.PLATE, DIAPHRAGM

69668-01H00

$6.75

16

BOLT (6X16.5)

09111-06116

$2.88

17

HOSE, RR RESERVOIR TANK

69730-31J00

Unavailable

18

CLIP

09401-12404

$2.37

19

PIN (6X18.2)

09200-06068

$3.71

20

WASHER

08322-0106A

$1.83

21

PIN

04111-2015A

$1.22

22

BOLT

01547-0612A

$2.01

23

HOSE ASSY, REAR BRAKE NO.1

69200-31J00

Unavailable

24

HOSE ASSY, REAR BRAKE NO.2

69400-31J00

Unavailable

25

UNION

09360-10062

$5.81

26

WASHER (10X15X1.5)

09161-10009

$1.83

27

SCREW

02142-0616A

$1.37

28

GUIDE, REAR BRAKE HOSE

69243-16G00

Unavailable

29

GUIDE,RR BRAKE HOSE

61196-44H00

Unavailable

30

CLAMP, RR BRAKE HOSE

69261-31J00

Unavailable

31

BOLT

01547-0612A

$2.01

32

COVER, REAR MASTER CYLINDER

69641-31J01

Unavailable

33

CUSHION,REAR BRAKE HOSE

69273-31J00

$2.67

34

WASHER,REAR BRAKE HOSE GUIDE

69486-31J00

Unavailable
