2016 Suzuki DL1000AL6 Rear Caliper Diagram

← All diagrams

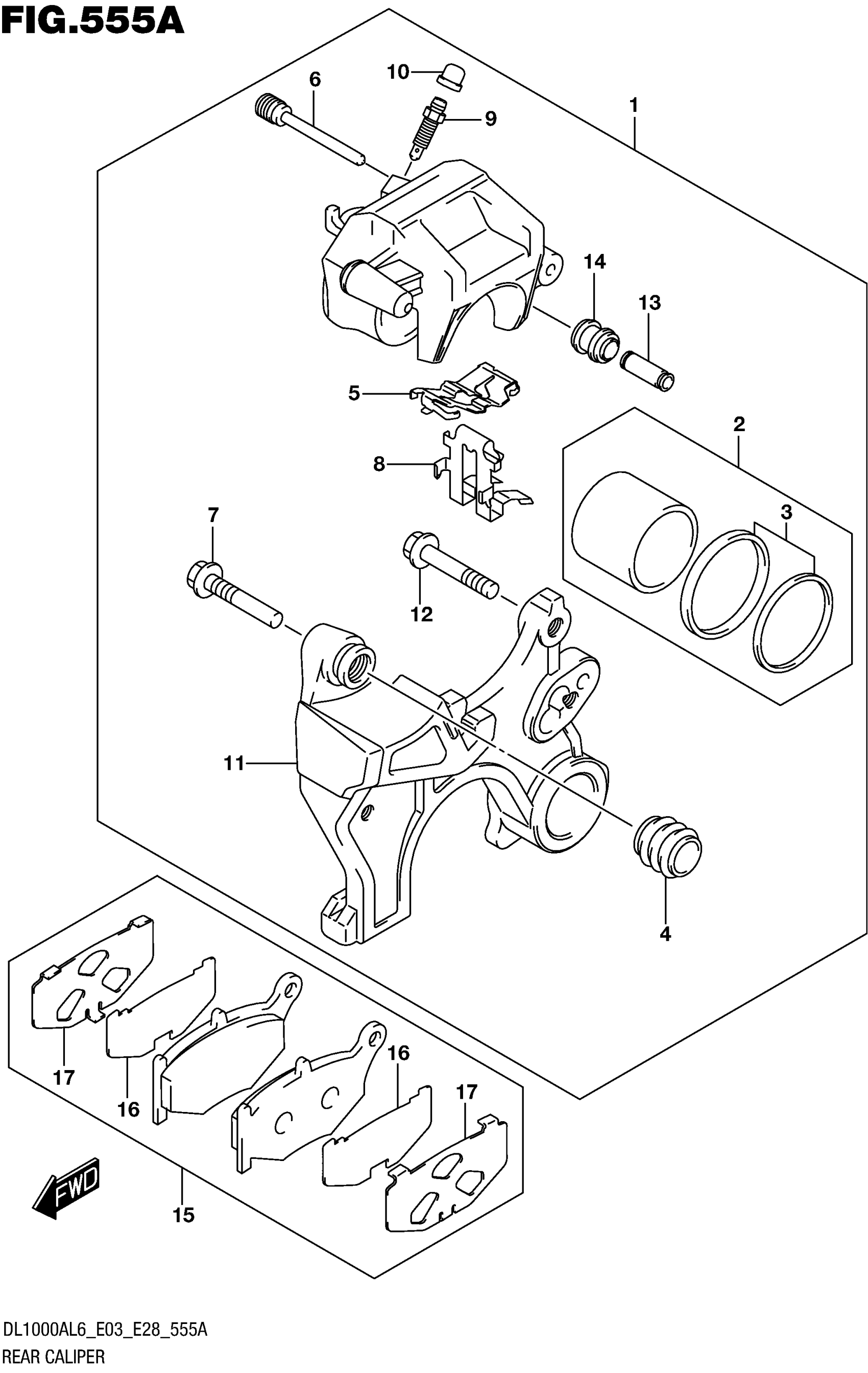

Find the part on the Rear Caliper diagram for your 2016 Suzuki DL1000AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki DL1000AL6 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,RR

69100-31J00-999

1
Out of stock

2

.PISTON SET

69100-44890

1
Out of stock

3

..SEAL SET, PISTON

69102-05880

1
Out of stock

4

.BOOT, AXLE

59112-44B00

1
Out of stock

5

.SPRING, PAD

69115-44G00

1
Out of stock

6

.PIN, PAD

59141-40F00

1
Out of stock

7

.PIN, BOLT

69105-44G00

1
Out of stock

8

.RETAINER

69116-44G00

1
Out of stock

9

.BLEEDER

59121-18410

1
Out of stock

10

.CAP, BLEEDER PLUG

55156-66310

1
Out of stock

11

.BRACKET

69150-31J00

1
Out of stock

12

.BOLT

69182-44G00

1
Out of stock

13

.SLEEVE

69185-44G00

1
Out of stock

14

.BOOT, SLEEVE

69186-44G00

1
Out of stock

15

PAD & SHIM SET

69101-44890

1
Out of stock

16

.INSULATOR

69132-44G10

2
Out of stock

17

.SHIM

69133-44G00

2
Out of stock
