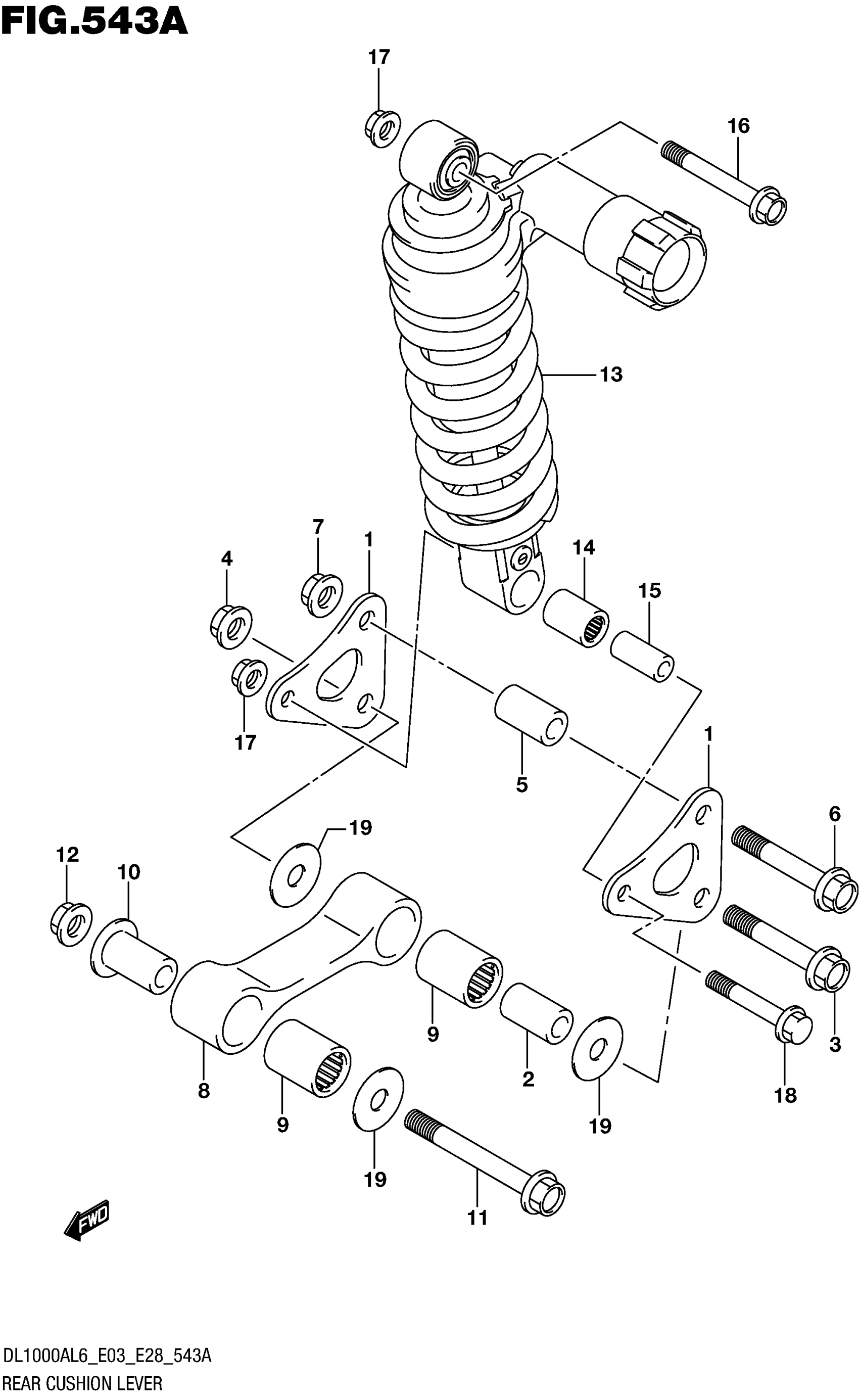

Suzuki DL1000AL6 (2016) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER,REAR CUSHION

62611-31J00

Unavailable

2

SPACER, LOWER

62317-27C10

$15.78

3

BOLT, LOWER

62668-42A02

$12.03

4

NUT

09159-12056

$6.65

5

SPACER, UPPER

62317-44B00

$23.73

6

BOLT, UPPER

62668-42A02

$12.03

7

NUT

09159-12056

$6.65

8

ROD SET,RR CUSHION This part replaces 62641-31J00.

62600-31850

$98.65

9

.BEARING This part replaces 09263-20074.

09263-20116

$28.11

10

SPACER, ROD

62647-47H00

$39.83

11

BOLT, ROD

62658-37F10

$11.70

12

NUT

09159-12056

$6.65

13

ABSORBER ASSY,R This part replaces 62100-31JB0-YKS.

62100-31JB1-YKS

$1,240.33

13

ABSORBER ASSY,R This part replaces 62100-31JB0-YKS.

62100-31JB1-YKS

$1,240.33

14

BEARING (17X24X32)

09263-17046

$45.05

15

SPACER, SHOCK ABS LOWER

62317-47H00

$23.08

16

BOLT (10X70)

09103-10033

$5.64

17

NUT

09159-10115

$3.21

18

BOLT (10X58)

09103-10428

$5.52

19

WASHER (12X34X1)

09160-12037

$3.52
