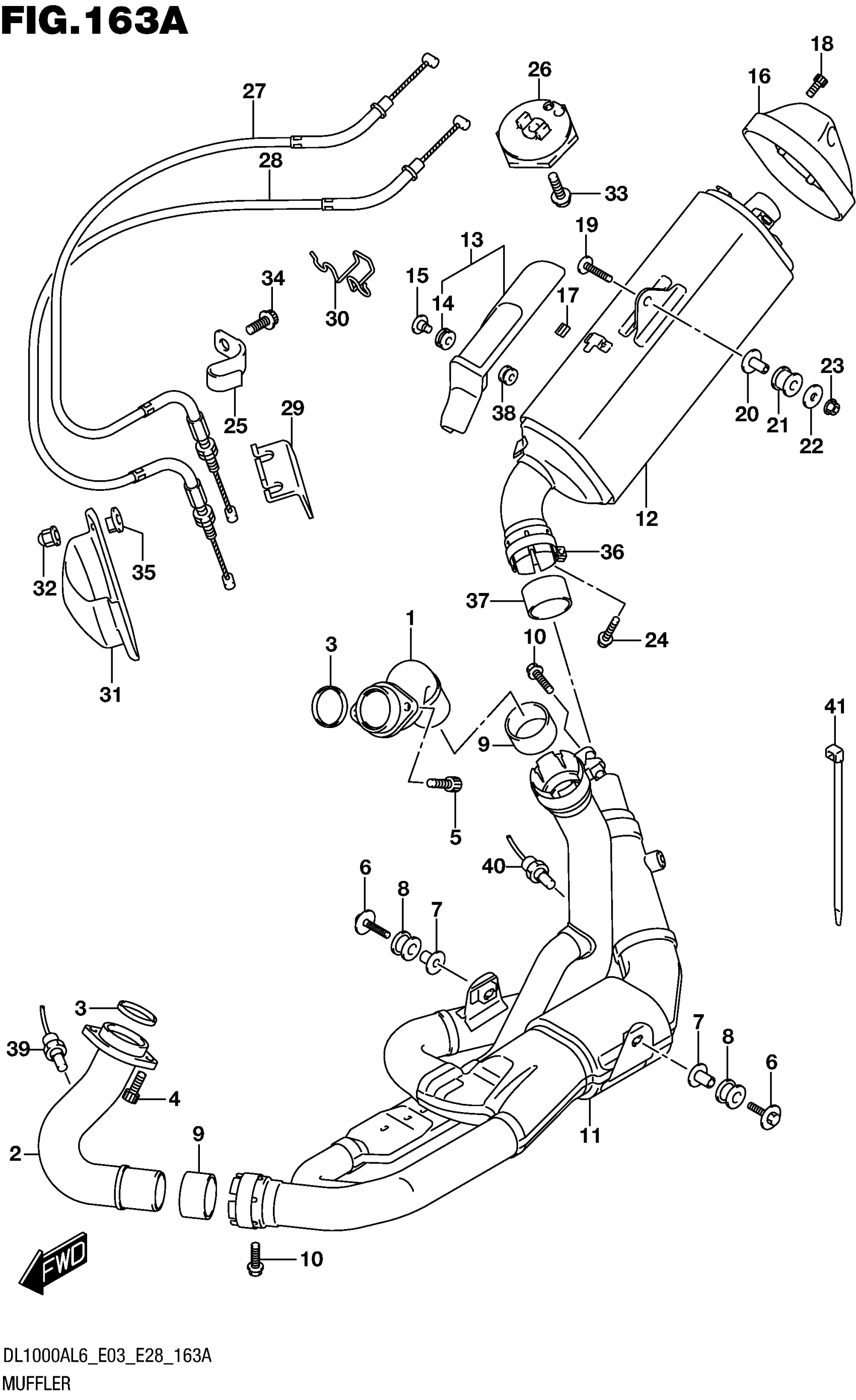

Suzuki DL1000AL6 (2016) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RR

14150-31J00

Unavailable

2

PIPE, EXHAUST FR

14160-31J00

Unavailable

3

GASKET, EXHAUST PIPE

14181-31D00

$10.28

4

BOLT (8X25)

09106-08178

$3.24

5

BOLT

07130-0825A

$3.04

6

BOLT (8X45)

09118-08152-A05

$5.24

7

SPACER (8.6X12X24.2)

09180-08152

$5.83

8

CUSHION

09320-12077

$11.78

9

CONNECTOR, EXHAUST

14771-42F40

$25.95

10

BOLT (8X35)

09106-08197

$4.18

11

PIPE, EXHAUST CENTER

14205-31J01

$1,401.00

12

BODY, MUFFLER

14310-31J30-H01

$729.03

13

COVER, MUFFLER FR

14780-31J00

$252.98

14

CUSHION (8.4X18X6)

09320-08066

$8.24

15

SCREW (6X12)

09139-06128

$5.67

16

COVER, MUFFLER RR

14791-31J00

Unavailable

17

GROMMET, MUFFLER COVER

14795-10FA0

$5.58

18

BOLT (6X15) This part replaces 09106-06069.

09106-06078

$3.37

19

BOLT (8X45)

09106-08164

$6.38

20

SPACER (8.6X12X27.1)

09180-08156

$6.70

21

CUSHION

09320-12049

$10.68

22

WASHER (8.5X33X1.5)

09160-08146

$2.60

23

NUT

08316-1008A

$2.45

24

BOLT (8X40)

09106-08162

$4.77

25

CLAMP

09403-11307

Unavailable

26

PULLEY, CONTROLLER

11269-18G01

$28.78

27

CABLE, EXHAUST VALVE NO.1

11276-31J00

Unavailable

28

CABLE, EXHAUST VALVE NO.2

11277-31J00

Unavailable

29

BRACKET, EXHAUST VALVE CABLE

14250-21H00

$9.90

30

GUIDE, EXHAUST VALVE CABLE

14252-14J00

$7.37

31

COVER, EXHAUST VALVE

14280-08J00

$27.85

32

NUT (M6)

09159-06100

$2.81

33

BOLT

01547-0516A

$1.55

34

BOLT

07120-0612A

$2.50

35

NUT

08316-1006A

$2.19

36

CLAMP,MUF CONN

14459-31J10

$29.67

37

CONNECTOR,MUF

14771-18H00

$30.60

38

CUSHION (4X12X8) This part replaces 09320-04009.

09320-04013

$1.85

39

SENSOR, OXYGEN

18213-16H10

$380.50

40

SENSOR, OXYGEN

18213-18H20

$380.50

41

CLAMP (L:145)

09407-14407

$3.57
