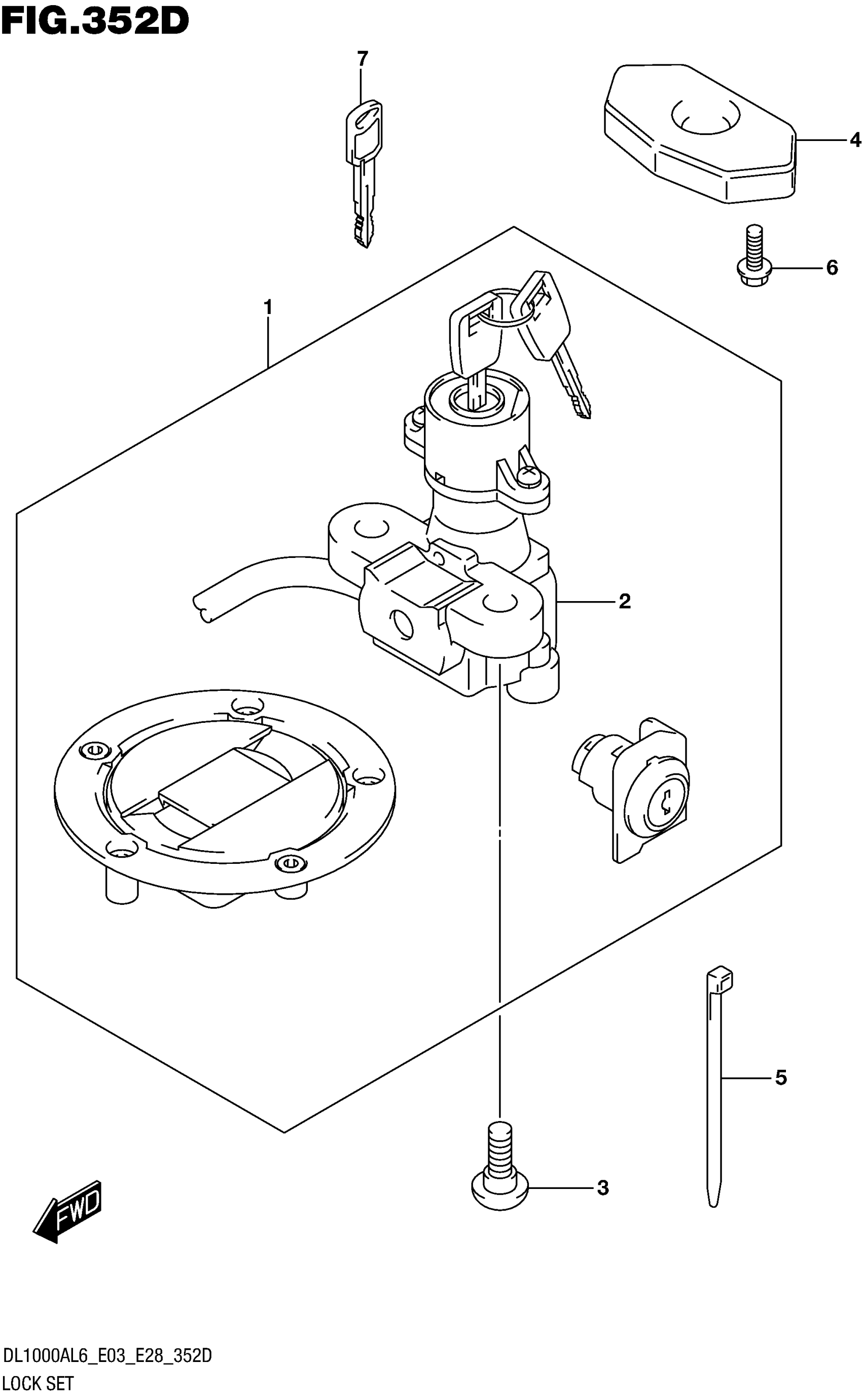

Suzuki DL1000AL6 (2016) LOCK SET (DL1000AL6 E28) Diagram

#

Description

Price

1

LOCK SET

37101-31880

$411.63

2

.LOCK ASSY, STEERING

37100-31JB0

$209.57

3

BOLT (8X20)

09139-08016

$3.37

4

COVER,STEERING LOCK This part replaces 37180-15H01.

37180-15HA0

$23.74

5

CLAMP (L:145)

09407-14407

$3.57

6

BOLT

01547-0512B

$3.05

7

KEY, BLANK | OPT

37146-11J00

$51.62
