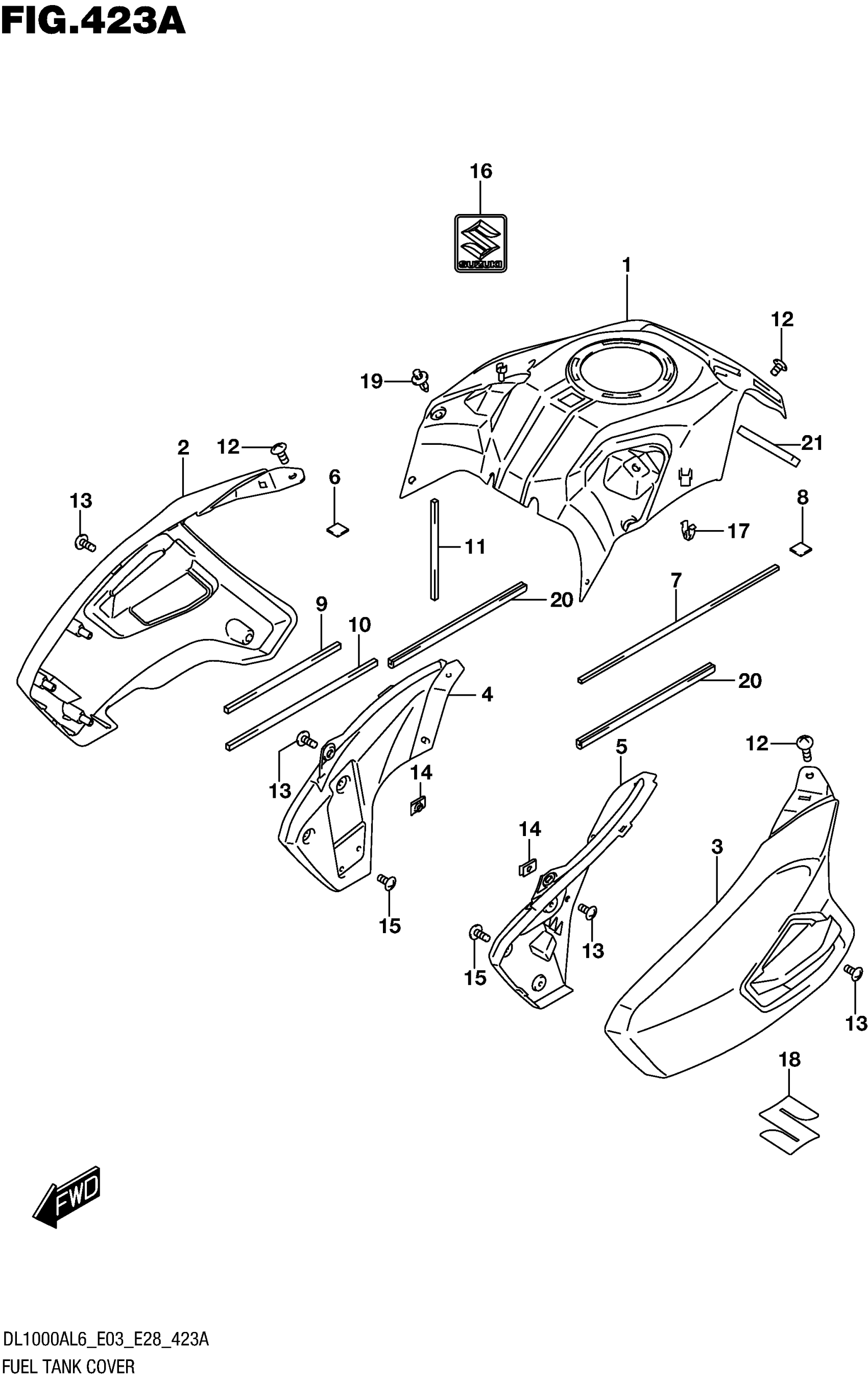

Suzuki DL1000AL6 (2016) FUEL TANK COVER Diagram

#

Description
Price

1

COVER,FUEL TANK This part replaces 44191-31J00-YKV.

44191-31J01-YKV

$325.18

1

COVER,FUEL TANK This part replaces 44191-31J00-YKV.

44191-31J01-YKV

$325.18

2

COVER,FUEL TANK This part replaces 44171-31J00-YKV.

44171-31J01-YKV

$181.52

2

COVER,FUEL TANK This part replaces 44171-31J00-YKV.

44171-31J01-YKV

$181.52

3

COVER COMP,FUEL This part replaces 44181-31J00-YKV.

44181-31J01-YKV

$197.52

3

COVER COMP,FUEL This part replaces 44181-31J00-YKV.

44181-31J01-YKV

$197.52

4

COVER, FUEL TANK FRONT RH

44271-31J00

$29.47

5

COVER, FUEL TANK FRONT LH

44281-31J00

$29.47

6

CUSHION, TANK COVER SIDE NO.4

44612-13600

$5.27

7

CUSHION, FUEL TANK COVER

44277-01H00

$4.87

8

CUSHION, FUEL TANK COVER NO.2

94642-10GA0

$4.57

9

CUSHION (5X120X6)

44176-31J00

$3.10

10

CUSHION, TANK COVER SIDE NO.2

44177-31J00

$3.48

11

CUSHION

44178-31J00

$3.25

12

BOLT (6X8)

09139-06178

$5.13

13

BOLT (5X13)

09139-05074

$2.58

14

NUT

09148-05052

$3.04

15

SCREW

03241-0516B

$1.68

16

EMBLEM, "S"

68281-47HA0

$7.11

17

CLIP

09409-08326

$2.45

18

EMBLEM, "S"

68111-47HA0

$37.02

19

CLIP (BLACK)

09409-06314-5PK

$2.80

20

MOLDING, FUEL TANK

44552-24B00

$13.26

21

CUSHION

45289-05H00

$3.01
