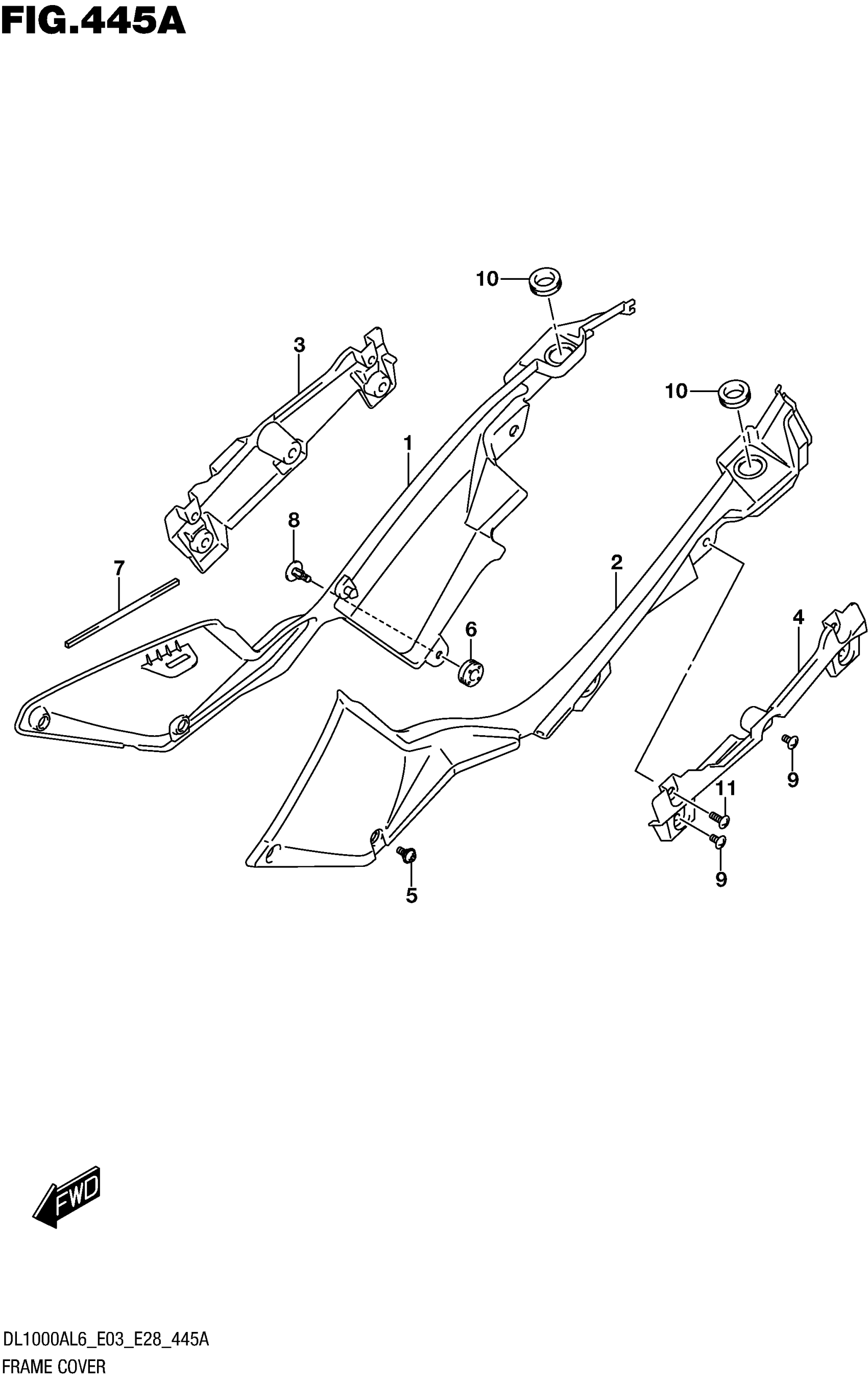

Suzuki DL1000AL6 (2016) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK)

47111-31J00

Unavailable

2

COVER, FRAME LH (BLACK)

47211-31J00

Unavailable

3

COVER, FRAME REAR RH

47411-31J00

$11.40

4

COVER, FRAME REAR LH

47511-31J00

$11.40

5

BOLT (5X13)

09139-05074

$2.61

6

CUSHION

09320-08028

$3.04

7

CUSHION, FRAME COVER

47121-31J00

$2.46

8

CLIP

94479-35F00

$5.62

9

SCREW

47913-31J00

$2.42

10

CUSHION (20X32X9) This part replaces 09320-20010.

09320-20011

$2.69

11

SCREW (6X16)

09139-06120

$2.83
