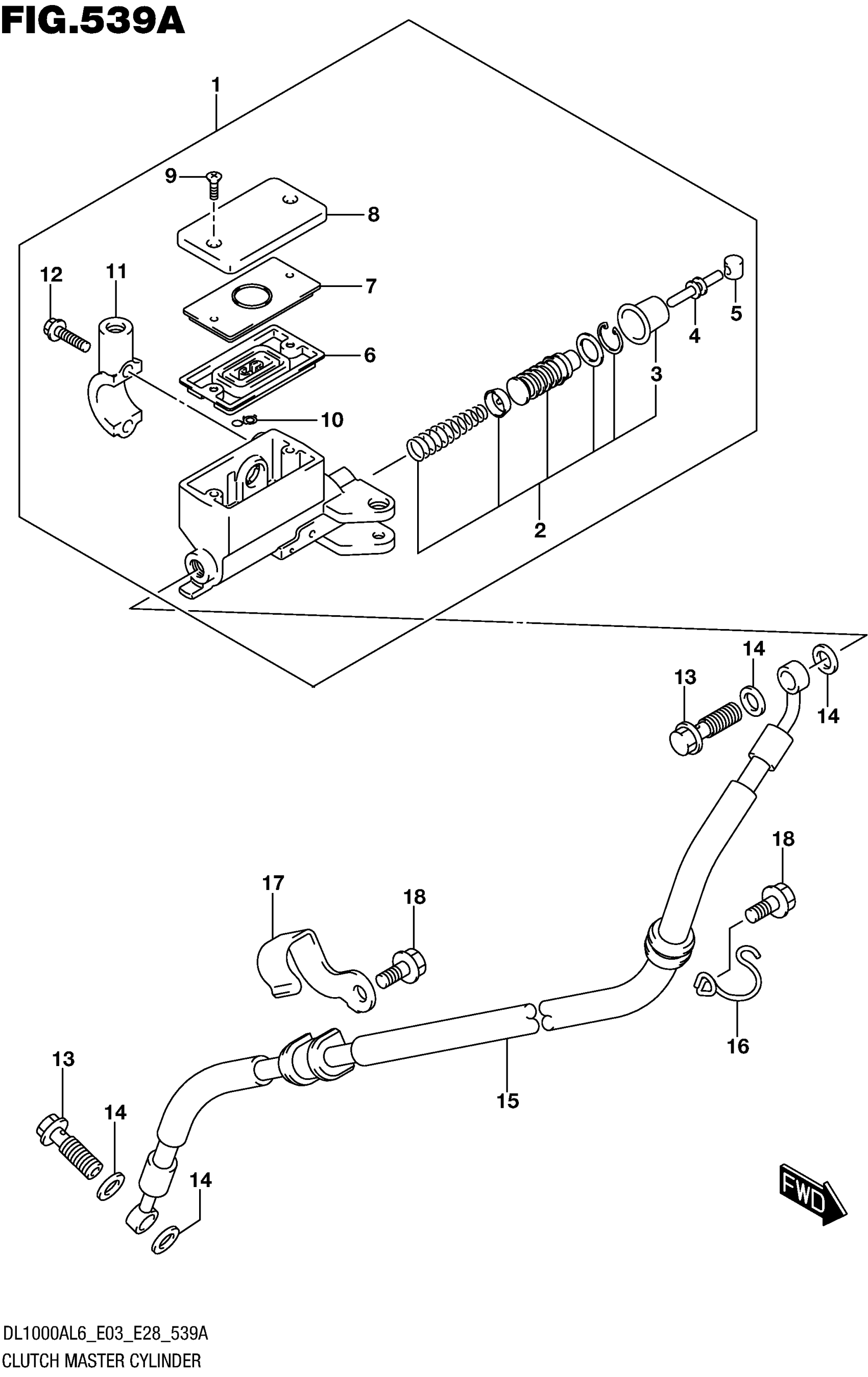

Suzuki DL1000AL6 (2016) CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,C This part replaces 59800-32F01.

59800-32F02

$330.85

2

.PISTON/CUP SET

59800-32810

$46.25

3

..BOOT

59866-23H00

$7.97

4

.PUSH ROD

59871-32F00

$5.84

5

.BUSH

59892-08A00

$5.05

6

.DIAPHRAGM

59667-49460

$9.78

7

.PLATE, DIAPHRAGM

59668-41C00

$9.32

8

.CAP

59669-10G00

$38.30

9

.SCREW

69689-49300

$1.91

10

.PROTECTOR

59664-32F00

$11.68

11

.HOLDER

59671-32F00

$19.52

12

.BOLT (6X22)

59675-02FA0

$3.82

13

UNION

09360-10062

$6.43

14

WASHER (10X15X1.5)

09161-10009

$1.84

15

HOSE, CLUTCH

59910-31J00

Unavailable

16

CLAMP, CLUTCH HOSE NO.1

59915-31J00

Unavailable

17

CLAMP, CLUTCH HOSE NO.2

59921-31J00

Unavailable

18

BOLT

01550-0612A

$1.97
