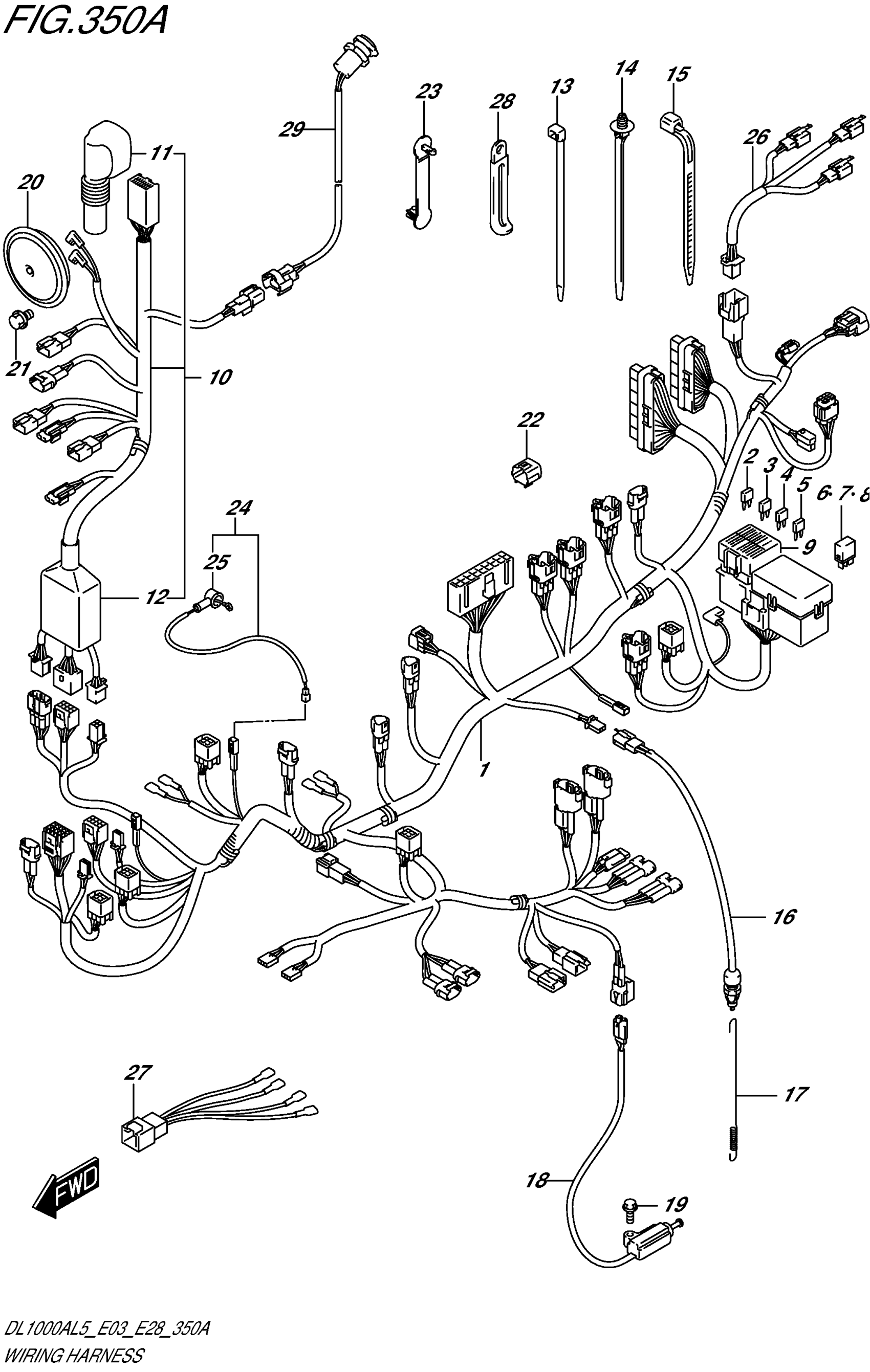

Suzuki DL1000AL5 (2015) WIRING HARNESS (DL1000AL5 E03) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1

36610-31J80

$1,372.57

2

FUSE (3A)

09481-03501

$2.45

3

FUSE (10A)

09481-10504

$2.04

4

FUSE (15A)

09481-15504

$2.57

5

FUSE (25A)

09481-25504

$2.98

6

RELAY ASSY | FOR FUEL PUMP

38860-76F01

$31.02

7

RELAY ASSY | FOR FAN MOTOR

38860-76F01

$31.02

8

RELAY ASSY | FOR SIDE STAND

38860-76F01

$31.02

9

CAP ASSY,FUSE BOX

36717-31J00

Unavailable

10

HARNESS,WIRING This part replaces 36620-31J00.

36620-31J01

$318.03

11

COVER, SPEEDOMETER

36618-41G00

Unavailable

12

COVER, SPEEDOMETER

36618-18G10

Unavailable

13

CLAMP (L:145)

09407-14407

$2.80

14

CLAMP (L:154)

09407-17403

$4.63

15

CLAMP (L:125)

09407-14403

$2.24

16

SWITCH ASSY, STOP LAMP

37740-31D00

$26.58

17

SPRING,STOP LAMP SWITCH

43259-31J00

$7.68

18

SWITCH ASSY,SIDE STAND This part replaces 37840-24F00.

37840-24F02

$66.52

19

BOLT (8X35)

09103-08357

$4.53

20

HORN ASSY

38500-41F50

$89.96

21

BOLT

01550-0612B

$2.38

22

CAP, TS

36654-06J20

Unavailable

23

CLAMP

36651-48E00

$3.67

24

WIRE, OIL PRESSURE SWITCH LEAD

36851-31J02

Unavailable

25

CAP, OIL PRESSURE SWITCH

36618-31J00

Unavailable

26

WIRE, REAR TURNSIGNAL LEAD

36856-31J00

Unavailable

27

WIRE, IGNITION COIL LEAD

36854-31J00

Unavailable

28

CLAMP (L:45)

09404-06429

$1.82

29

TERMINAL,POWER SOURCE

38850-31J00

$82.92
