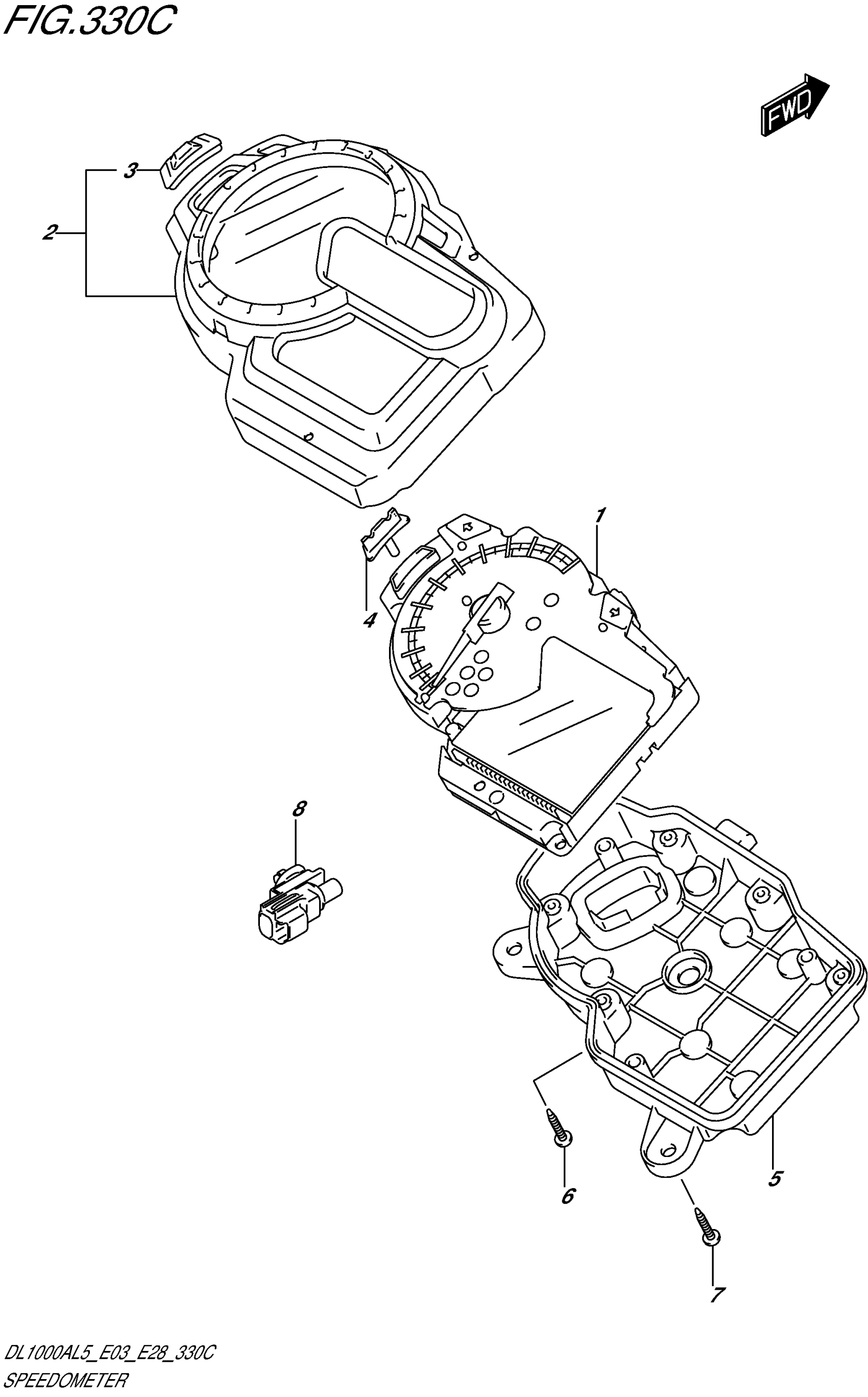

Suzuki DL1000AL5 (2015) SPEEDOMETER (DL1000AL5 E33) Diagram

#

Description

Price

1

SPEEDOMETER

34120-31J10

Unavailable

2

CASE, UPPER This part replaces 34150-31J00.

34150-31J01

Unavailable

3

RUBBER SWITCH

34126-31J00

$36.17

4

KNOB

34124-31J00

Unavailable

5

CASE, LOWER This part replaces 34152-31J00.

34152-31J01

Unavailable

6

SCREW (3X12)

34183-29F00

$3.62

7

SCREW

03541-0516A

$1.37

8

SENSOR, AIR TEMP

95643-58J00

$57.00
