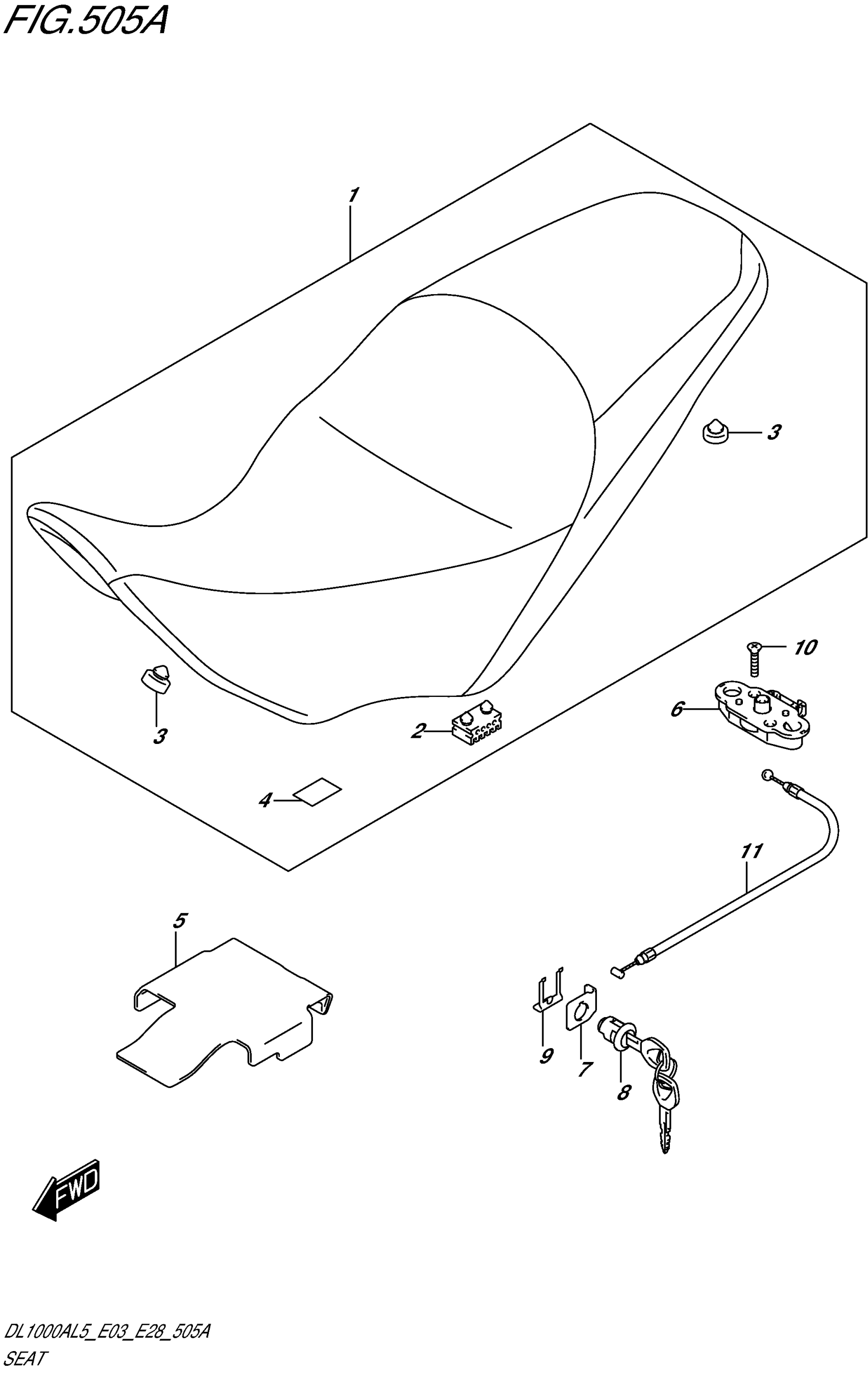

Suzuki DL1000AL5 (2015) SEAT Diagram

#

Description
Price

1

SEAT ASSY This part replaces 45100-31J00-AR8.

45100-31J01-AR8

$285.62

2

CUSHION

45149-31300

$3.56

3

CUSHION

09321-10012

$2.92

4

TAPE, SEAT BOTTOM

94474-17H00

$4.58

5

SHEET, HEAT SHIELD RUBBER

45256-31J00

Unavailable

6

BRACKET, SEAT SUPPORT

45220-47H00

$138.38

7

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.36

8

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

$107.30

9

PLATE, SEAT LOCK ASSY

45289-11F00

$6.20

10

SCREW

02122-0630A

$1.74

11

CABLE, SEAT LOCK

45280-31J00

Unavailable
