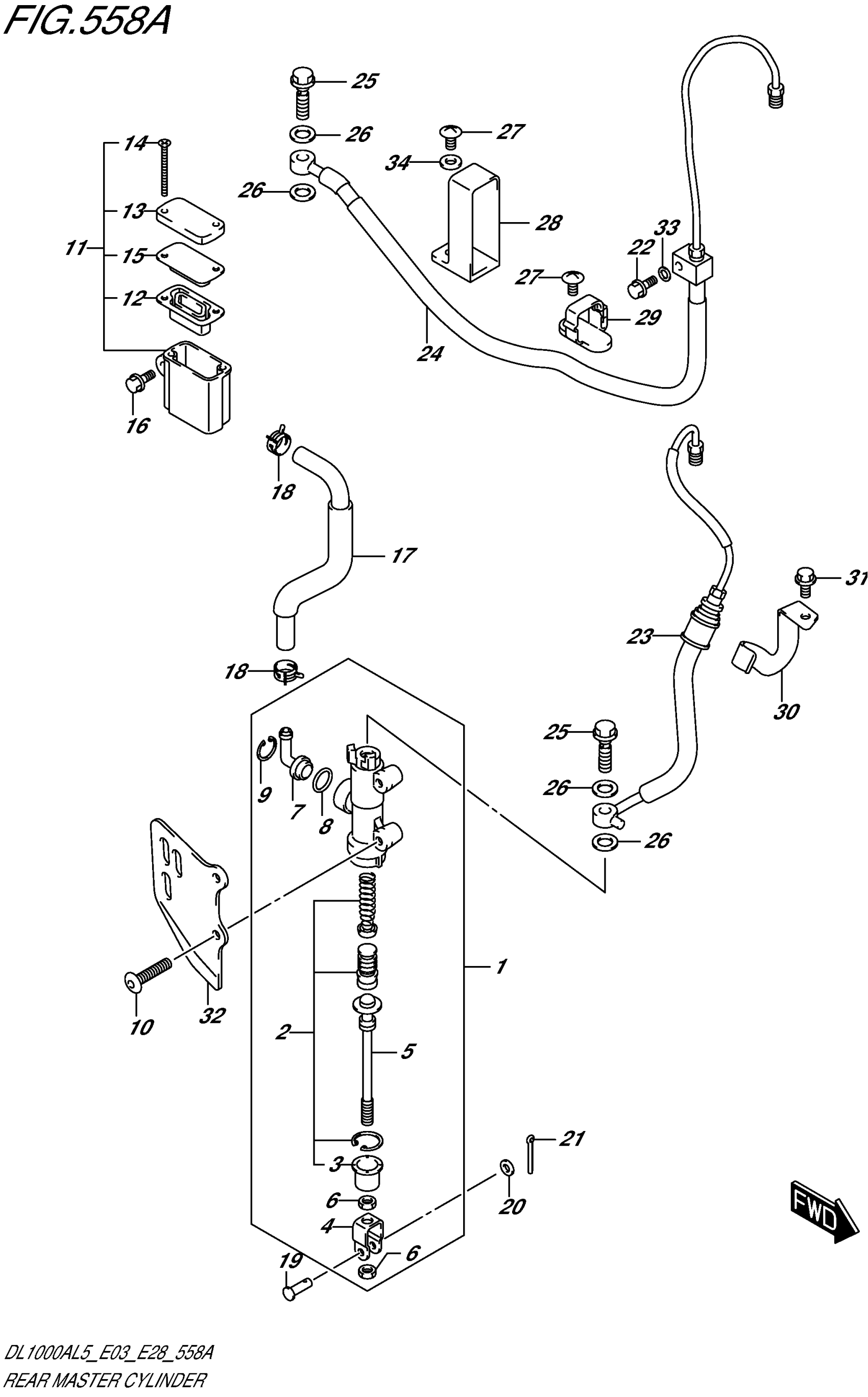

Suzuki DL1000AL5 (2015) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-31J00

$240.68

2

PISTON / CAP SET

69600-34830

$35.62

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-44H00

$16.87

5

ROD, PUSH

69670-31J00

$33.92

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00B20

$7.01

8

O RING

69686-34200

$2.93

9

CIRCLIP

69674-00B20

$3.97

10

SCREW (6X25)

09139-06029

$5.36

11

TANK ASSY,RESERVOIR This part replaces 69740-01H10.

69740-18K00

$28.10

12

DIAPHRAGM

69667-01H00

$6.30

13

CAP

69669-01H00

Unavailable

14

SCREW

69689-01H00

$4.45

15

PLATE, DIAPHRAGM

69668-01H00

$5.98

16

BOLT (6X16.5)

09111-06116

$2.65

17

HOSE, RR RESERVOIR TANK

69730-31J00

Unavailable

18

CLIP

09401-12404

$2.34

19

PIN (6X18.2)

09200-06068

$4.11

20

WASHER

08322-0106A

$1.84

21

PIN

04111-2015A

$1.49

22

BOLT

01547-0612A

$2.03

23

HOSE ASSY, REAR BRAKE NO.1

69200-31J00

Unavailable

24

HOSE ASSY, REAR BRAKE NO.2

69400-31J00

Unavailable

25

UNION

09360-10062

$6.43

26

WASHER (10X15X1.5)

09161-10009

$1.84

27

SCREW

02142-0616A

$1.49

28

GUIDE, REAR BRAKE HOSE

69243-16G00

Unavailable

29

GUIDE,RR BRAKE HOSE

61196-44H00

Unavailable

30

CLAMP, RR BRAKE HOSE

69261-31J00

Unavailable

31

BOLT

01547-0612A

$2.03

32

COVER, REAR MASTER CYLINDER

69641-31J00

Unavailable

33

CUSHION,REAR BRAKE HOSE

69273-31J00

$2.37

34

WASHER,REAR BRAKE HOSE GUIDE

69486-31J00

Unavailable
