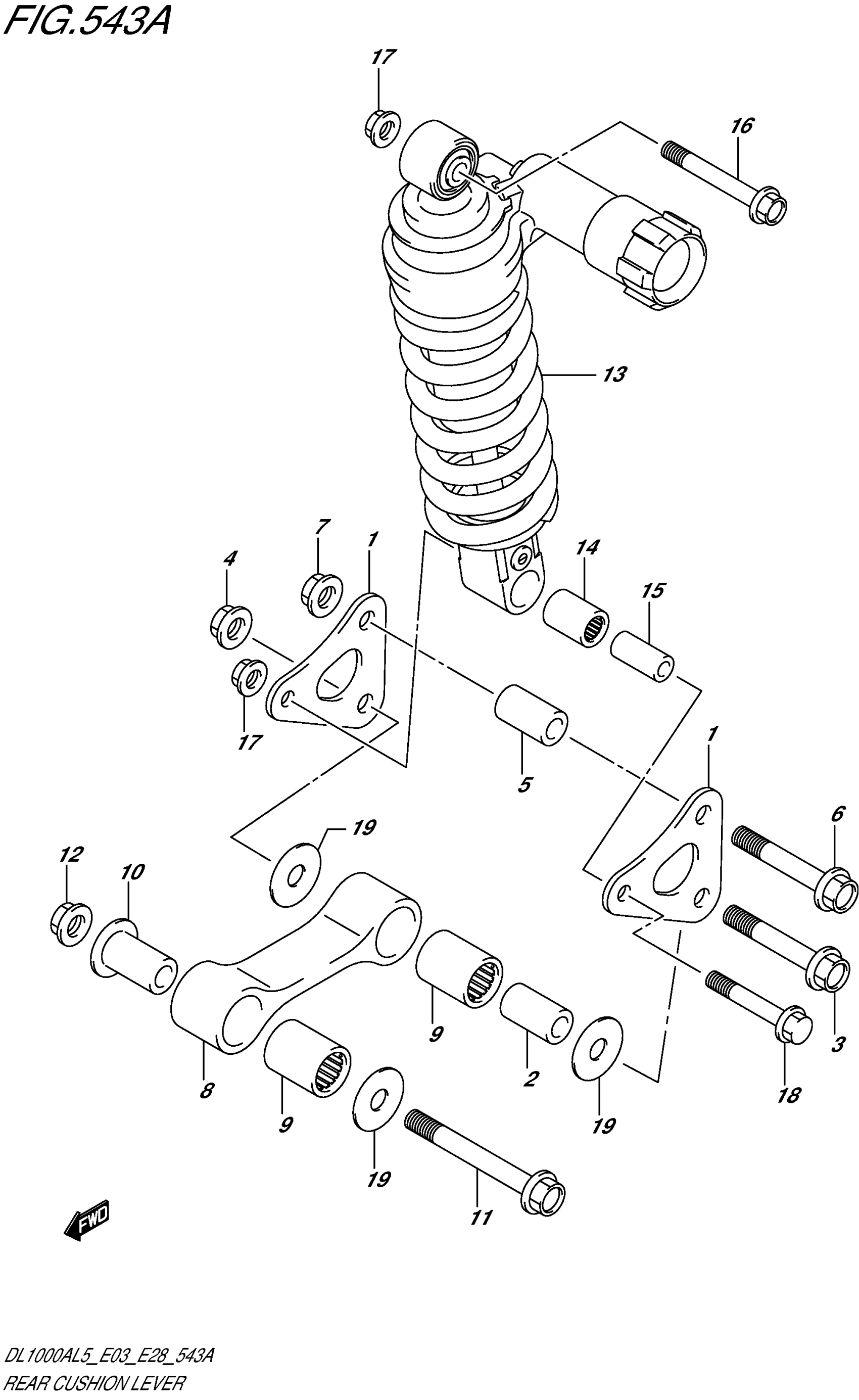

Suzuki DL1000AL5 (2015) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER,REAR CUSHION

62611-31J00

Unavailable

2

SPACER, LOWER

62317-27C10

$16.76

3

BOLT, LOWER

62668-42A02

$10.67

4

NUT

09159-12056

$7.37

5

SPACER, UPPER

62317-44B00

$21.03

6

BOLT, UPPER

62668-42A02

$10.67

7

NUT

09159-12056

$7.37

8

ROD SET,RR CUSHION This part replaces 62641-31J00.

62600-31850

$88.65

9

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

10

SPACER, ROD

62647-47H00

$35.28

11

BOLT, ROD

62658-37F10

$10.37

12

NUT

09159-12056

$7.37

13

ABSORBER ASSY,R This part replaces 62100-31JB0-YKS.

62100-31JB1-YKS

$1,136.05

14

BEARING (17X24X32)

09263-17046

$41.45

15

SPACER, SHOCK ABS LOWER

62317-47H00

$20.45

16

BOLT (10X70)

09103-10033

$6.17

17

NUT

09159-10115

$3.55

18

BOLT (10X58)

09103-10428

$5.07

19

WASHER (12X34X1)

09160-12037

$3.83
