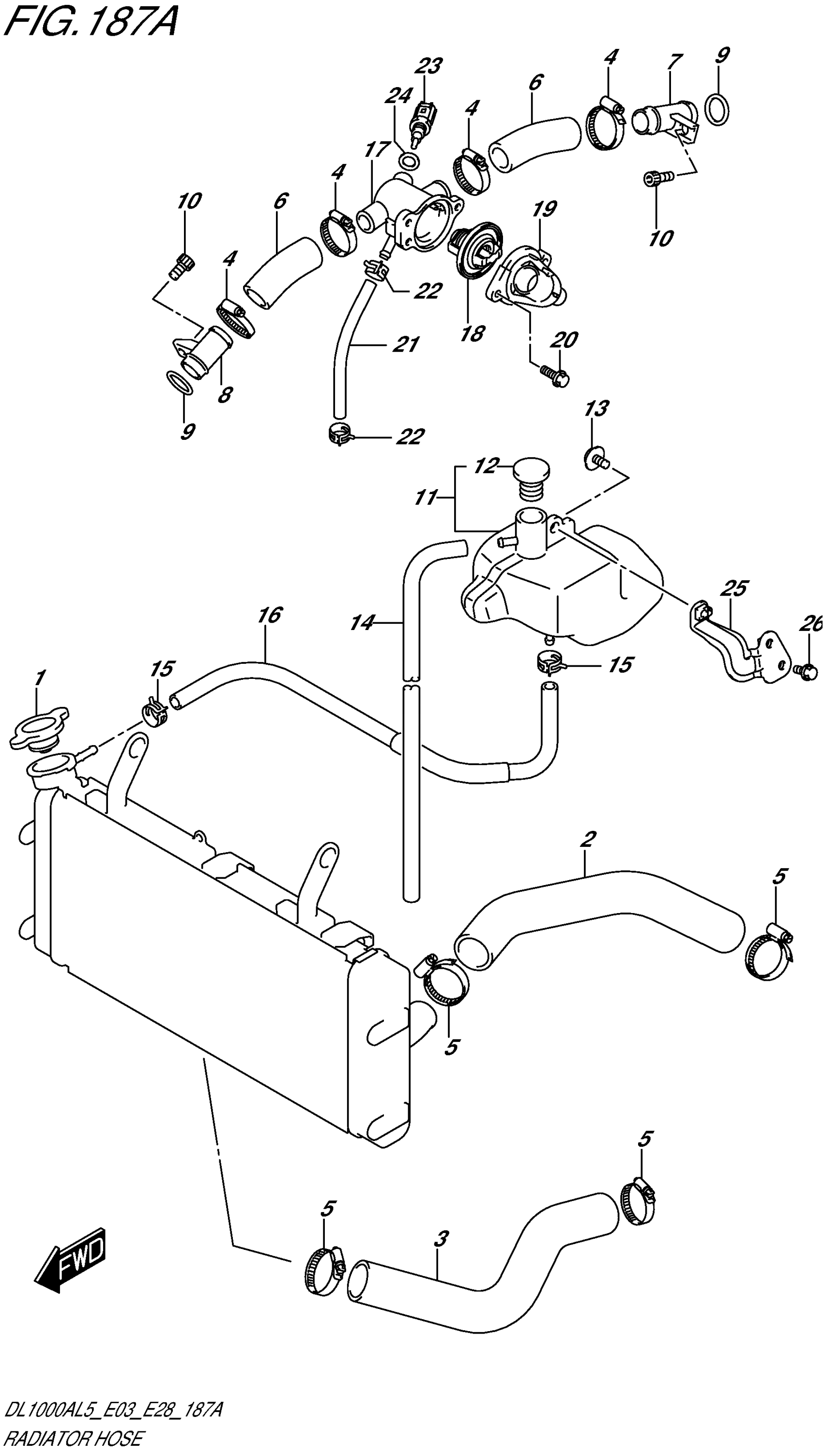

Suzuki DL1000AL5 (2015) RADIATOR HOSE Diagram

#

Description
Price

1

CAP, RADIATOR (1.1)

17730-14G00

$42.83

2

HOSE, RADIATOR INLET

17851-31J00

$31.40

3

HOSE, RADIATOR OUTLET

17852-31J00

$27.95

4

CLAMP

09402-28513

$6.88

5

CLAMP

09402-35501

$7.29

6

HOSE,CONNECTOR INLET

17853-02F10

$11.18

7

UNION, CONNECTOR HOSE

17890-06G20

$14.43

8

UNION, CONNECTOR HOSE

17890-06G20

$14.43

9

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

10

BOLT

07130-0612A

$2.50

11

TANK ASSY,RESERVOIR

17910-31J00

Unavailable

12

CAP

17931-31J00

$7.20

13

BOLT (6X12)

09111-06085

$4.54

14

HOSE,RSVR TANK OVFL

17982-31J00

Unavailable

15

CLIP

09401-08411

$1.78

16

HOSE, RESERVOIR TANK INLET

17981-31J00

$19.57

17

CONNECTOR,THERMOSTAT INLET

17662-02F11

$64.30

18

THERMOSTAT,WATER This part replaces 17670-06G50.

17670-06G51

$25.77

19

CAP,THERMOSTAT CONNECTOR

17663-42E00

$54.75

20

BOLT

01550-0616A

$1.97

21

HOSE, WATER BYPASS

17856-16G10

$22.22

22

CLIP

09401-12414

$3.26

23

SENSOR, WATER TEMP

13650-49X00

$90.19

24

GASKET (12X17X1)

09168-12017

$1.95

25

BRACKET,RSVR TANK

17920-31J00

Unavailable

26

BOLT

01550-0610A

$1.97
