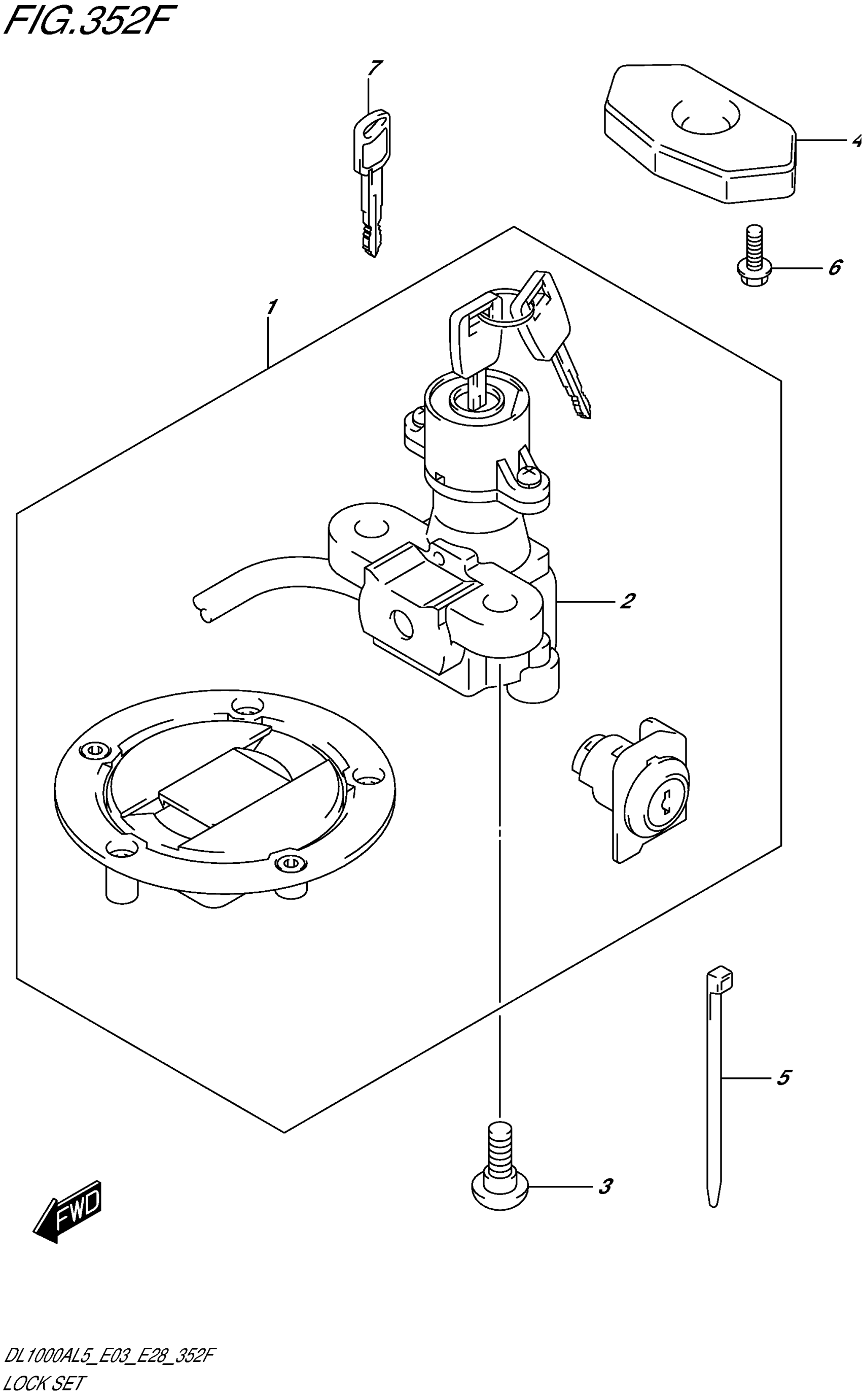

Suzuki DL1000AL5 (2015) LOCK SET (DL1000AL5 E33) Diagram

#

Description

Price

1

LOCK SET

37000-31870

Unavailable

2

LOCK ASSY,STEER This part replaces 37100-31J10.

37100-31J13

$185.68

3

BOLT (8X20)

09139-08016

$3.37

4

COVER,STEERING LOCK This part replaces 37180-15H01.

37180-15HA0

$23.74

5

CLAMP (L:145)

09407-14407

$3.57

6

BOLT

01547-0512B

$3.05

7

KEY, BLANK | OPT

37146-11J00

$51.62
