2015 Suzuki DL1000AL5 Hydraulic Unit Diagram

← All diagrams

Find the part on the Hydraulic Unit diagram for your 2015 Suzuki DL1000AL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

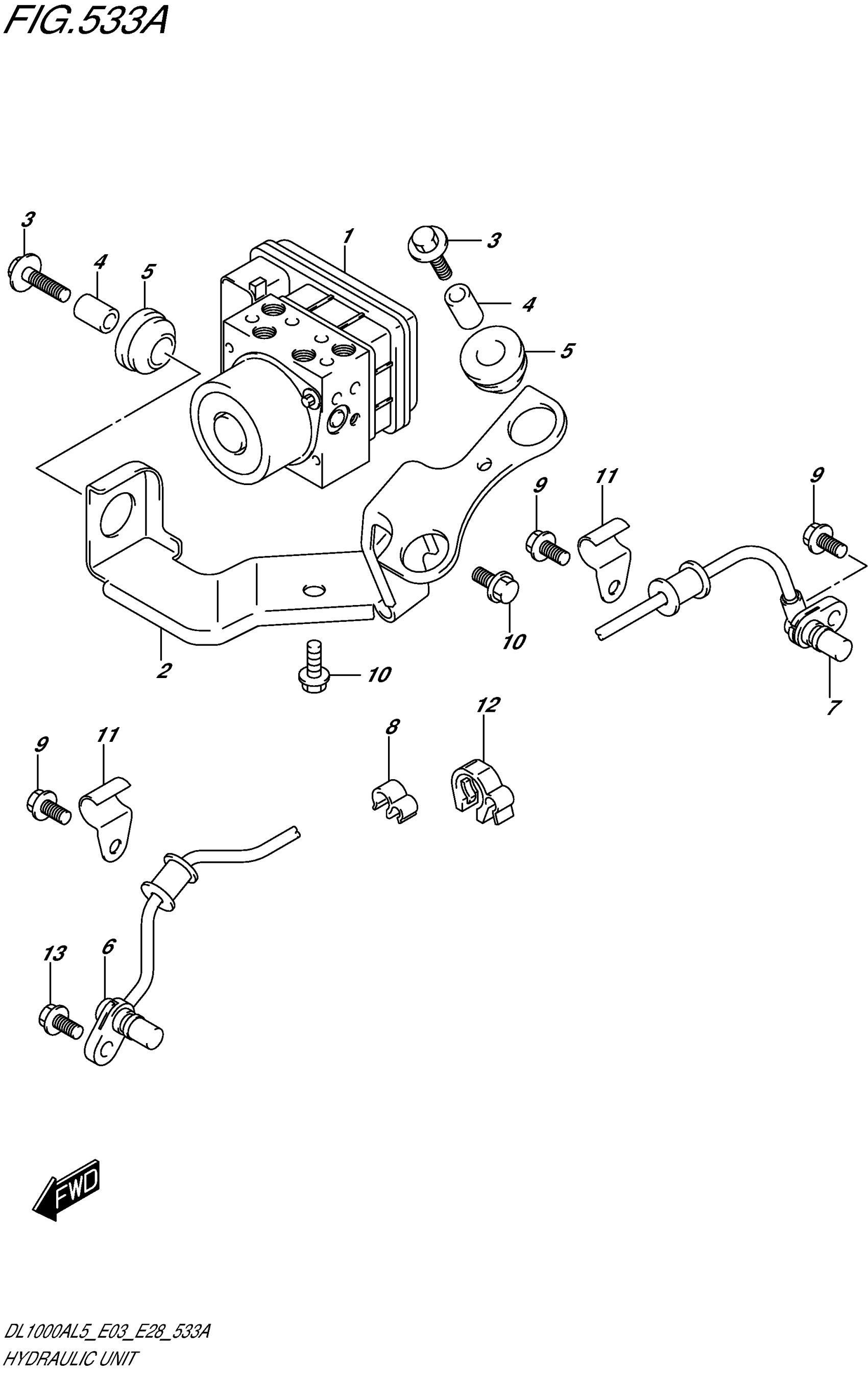

2015 Suzuki DL1000AL5 Hydraulic Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNIT ASSY, HYDRAULIC ABS

55610-31J00

1
Out of stock

2

HOLDER, HYDRAULIC UNIT

55660-31J00

1
Out of stock

3

BOLT (6X25)

55661-10G00

3
Out of stock

4

SPACER, HYDRAULIC UNIT

55662-10G00

3
Out of stock

5

RUBBER

09320-10066

3
Out of stock

6

SENSOR, FRONT WHEEL ABS

55710-31J00

1
Out of stock

7

1

$161.85

In stock

8

CLAMP

09408-00266

2
Out of stock

9

BOLT

01547-0612A

2
Out of stock

10

BOLT

01550-0612A

2
Out of stock

11

CLAMP, SENSOR LEAD

55731-23H00

2
Out of stock

12

CLAMP

09408-00307

4
Out of stock

13

BOLT

01547-0612A

2
Out of stock
