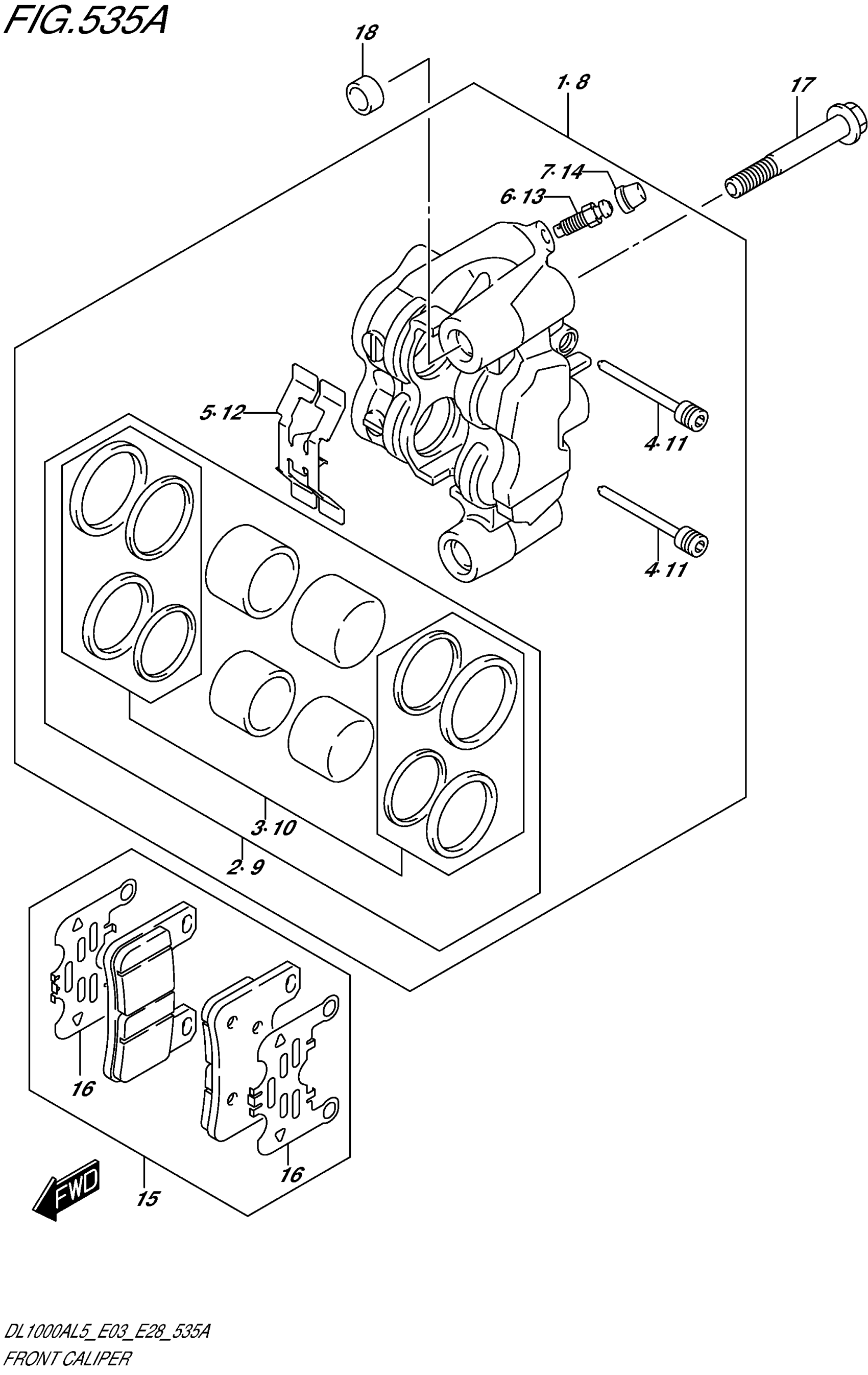

Suzuki DL1000AL5 (2015) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FR RH

59100-31J00-999

$597.87

2

PISTON SET

59100-31810

$160.48

3

SEAL SET, PISTON

59101-47810

$106.00

4

PIN, PAD

59141-41G10

$24.71

5

SPRING, PAD

59151-29G00

$11.75

6

BLEEDER

59121-18410

$7.99

7

CAP BLEEDER PLUG

55156-66310

$4.73

8

CALIPER ASSY,FR LH

59300-31J00-999

$612.82

9

PISTON SET

59100-31810

$160.48

10

SEAL SET, PISTON

59101-47810

$106.00

11

PIN, PAD

59141-41G10

$24.71

12

SPRING, PAD

59151-29G00

$11.75

13

BLEEDER

59121-18410

$7.99

14

CAP BLEEDER PLUG

55156-66310

$4.73

15

PAD & SHIM SET

59100-29860

$95.57

16

SHIM

59171-31J00

Unavailable

17

BOLT (10X70)

09103-10392

$4.42

18

PIN, CALIPER

59151-41G00

$10.96
