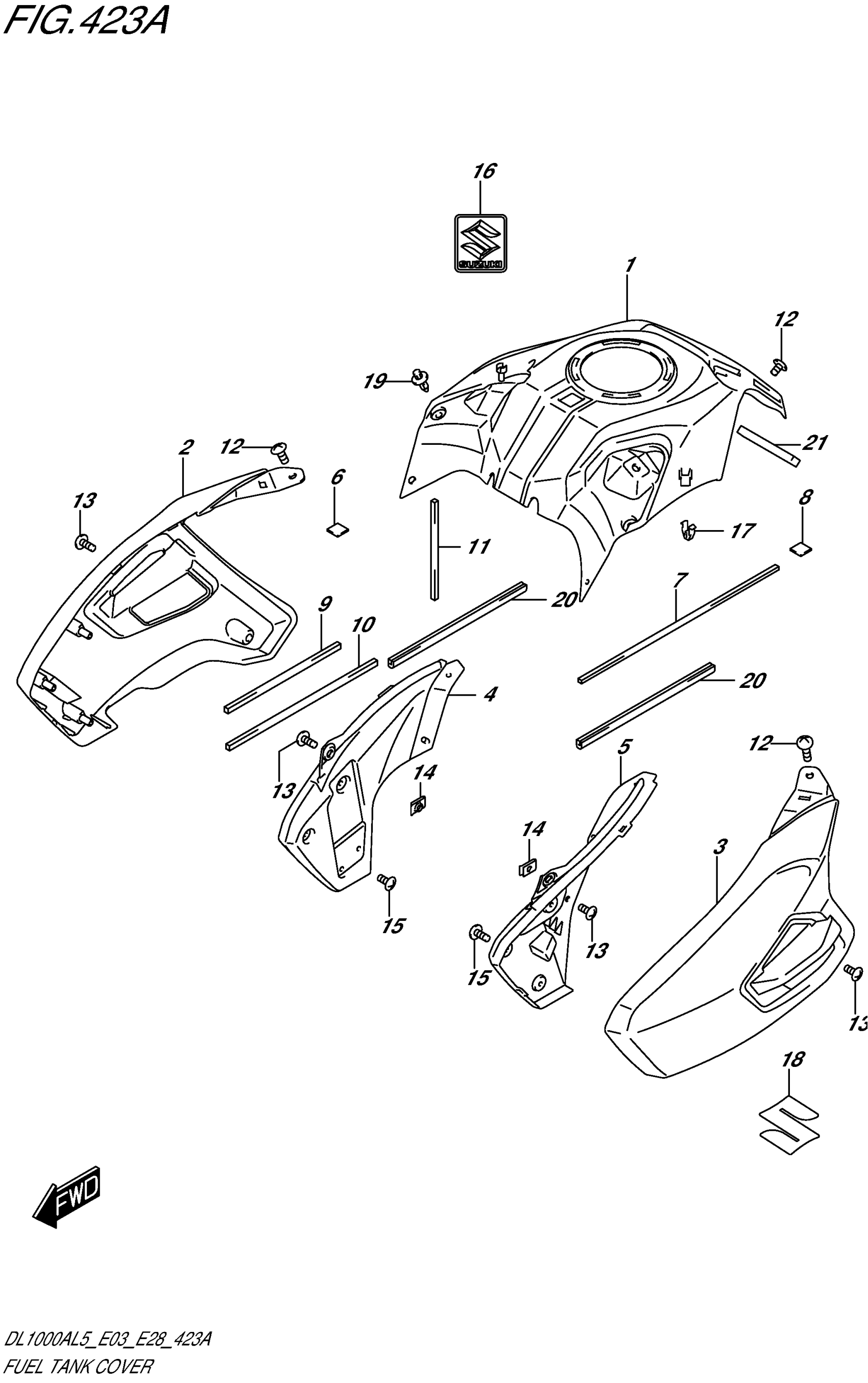

Suzuki DL1000AL5 (2015) FUEL TANK COVER Diagram

#

Description
Price

1

COVER,FUEL TANK This part replaces 44191-31J00-YKV.

44191-31J01-YKV

$295.07

2

COVER,FUEL TANK This part replaces 44171-31J00-YKV.

44171-31J01-YKV

$163.12

3

COVER COMP,FUEL This part replaces 44181-31J00-YKV.

44181-31J01-YKV

$177.48

4

COVER, FUEL TANK FRONT RH

44271-31J00

$26.10

5

COVER, FUEL TANK FRONT LH

44281-31J00

$26.10

6

CUSHION, TANK COVER SIDE NO.4

44612-13600

$4.65

7

CUSHION, FUEL TANK COVER

44277-01H00

$5.18

8

CUSHION, FUEL TANK COVER NO.2

94642-10GA0

$4.03

9

CUSHION (5X120X6)

44176-31J00

$2.75

10

CUSHION, TANK COVER SIDE NO.2

44177-31J00

$3.08

11

CUSHION

44178-31J00

$2.87

12

BOLT (6X8)

09139-06178

$4.72

13

BOLT (5X13)

09139-05074

$2.61

14

NUT

09148-05052

$3.37

15

SCREW

03241-0516B

$1.74

16

EMBLEM, "S"

68281-47HA0

$7.77

17

CLIP

09409-08326

$2.48

18

EMBLEM, "S"

68111-47HA0

$40.44

19

CLIP (BLACK)

09409-06314-5PK

$2.78

20

MOLDING, FUEL TANK

44552-24B00

$14.08

21

CUSHION

45289-05H00

$4.11
