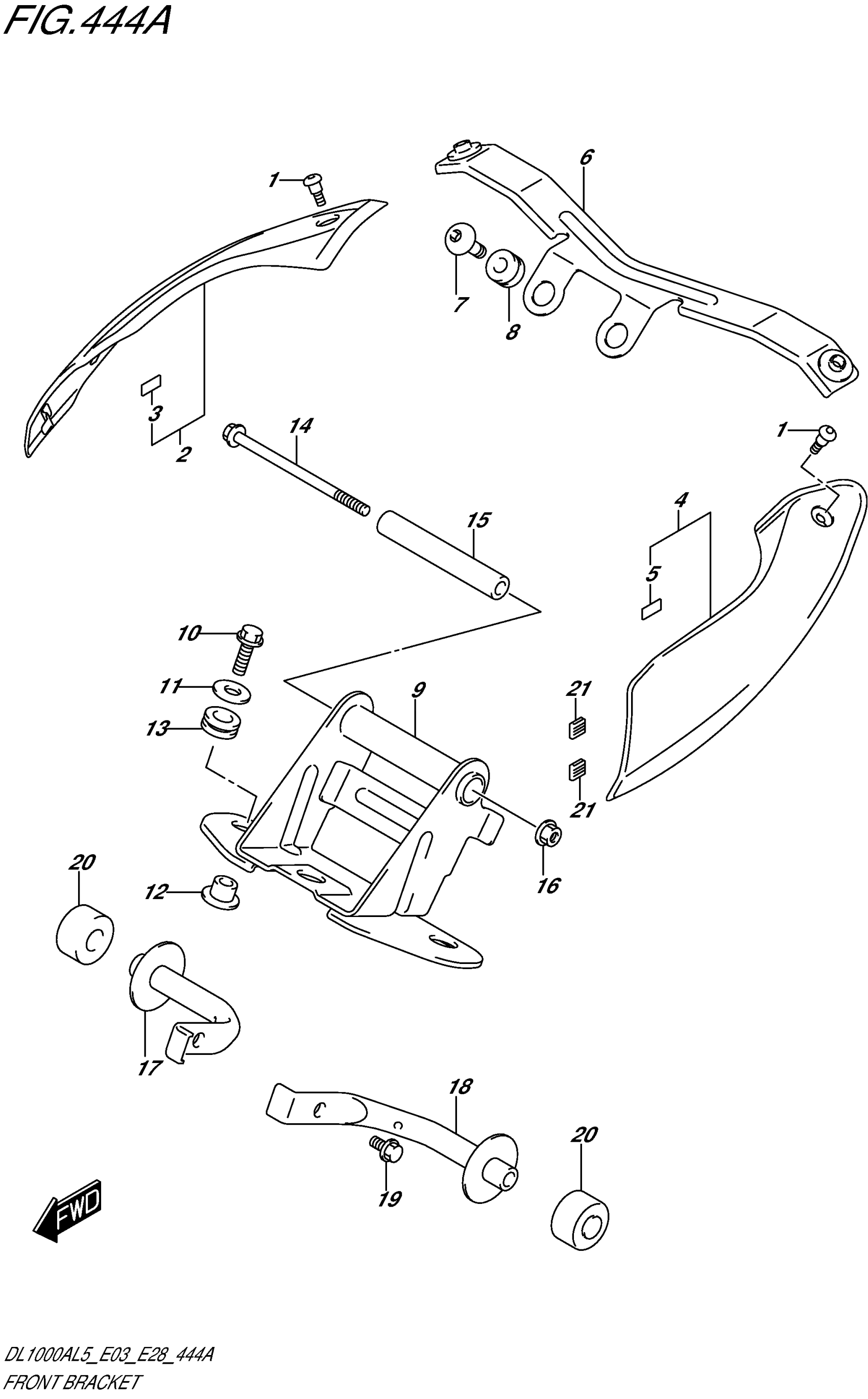

Suzuki DL1000AL5 (2015) FRONT BRACKET Diagram

#

Description
Price

1

SCREW (6X16)

09139-06197

$4.15

2

COVER,SIDE REAR This part replaces 94420-31J00.

94420-31J01

Unavailable

3

CUSHION, COVER SIDE

94633-31J00

$2.44

4

COVER,SIDE REAR This part replaces 94430-31J00.

94430-31J01

$164.15

5

CUSHION, COVER SIDE

94633-31J00

$2.44

6

BRACKET, COVER

44160-31J00

$21.38

7

BOLT (6X20)

09139-06190

$4.17

8

CUSHION, COVER

44164-31J00

Unavailable

9

BRACKET, FRONT

44520-31J00

Unavailable

10

SCREW (6X25)

09139-06192

$3.23

11

WASHER This part replaces 09160-06012.

09160-06054

$1.62

12

SPACER, FUEL TANK FR

44512-16G00

$7.44

13

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

14

BOLT

01550-0695B

$3.91

15

SPACER

44561-35F00

$13.88

16

NUT

08319-3106B

$2.45

17

BRACKET, SIDE RH

44560-31J00

$16.58

18

BRACKET, SIDE LH

44560-31J00

$16.58

19

BOLT

01550-0612B

$2.39

20

CUSHION,FRONT SIDE BRKT This part replaces 44543-31J00.

44543-31J01

$5.00

21

GROMMET

14795-10FA0

$5.58
