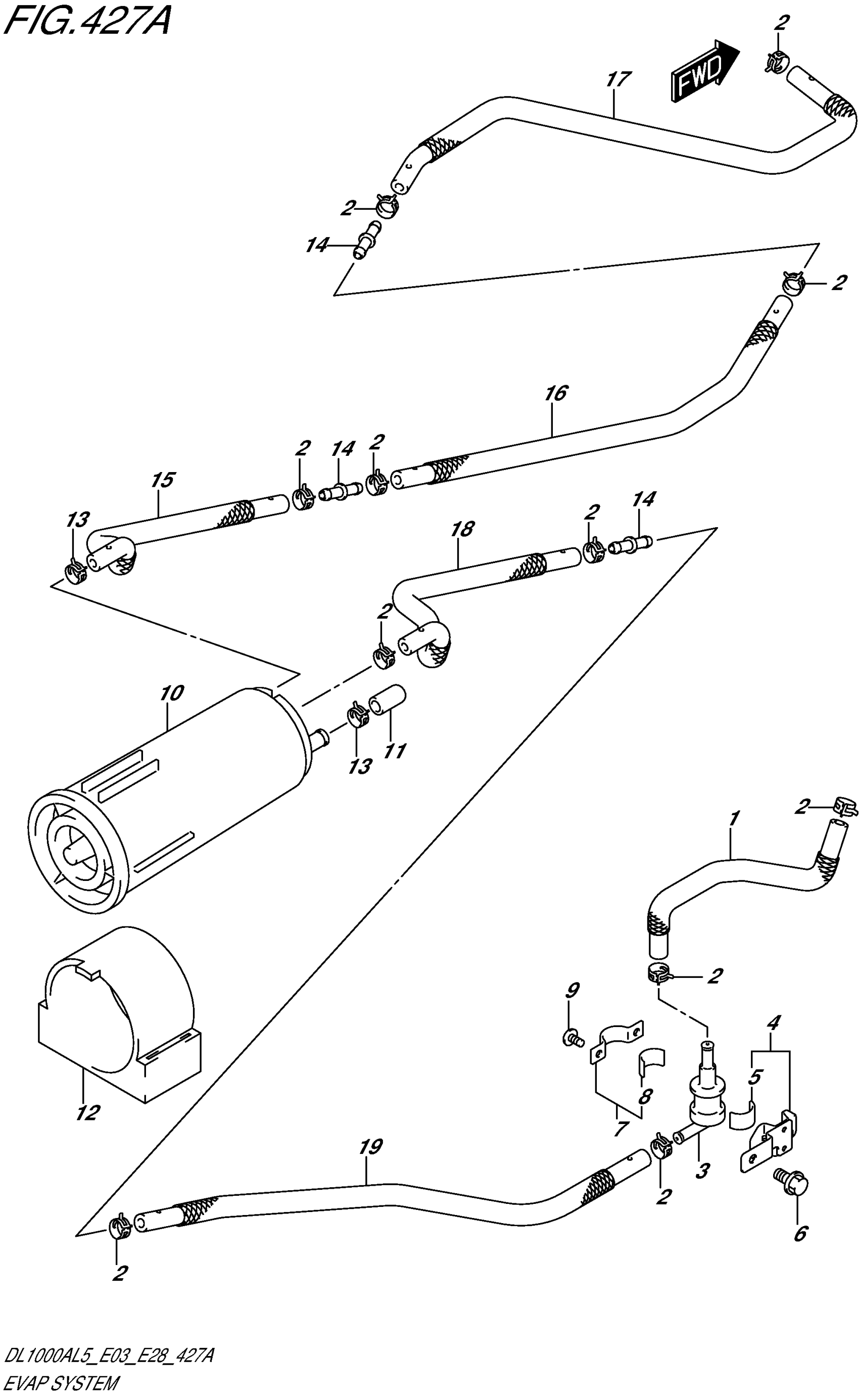

Suzuki DL1000AL5 (2015) EVAP SYSTEM (DL1000AL5 E33) Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE

44434-31J01

Unavailable

2

CLIP

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

BRACKET, BREATHER VALVE

44890-06G00

Unavailable

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

BOLT

01550-0612B

$2.39

7

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

8

CUSHION (10X30X2)

44894-24A00

$1.72

9

SCREW

02142-0408B

$1.70

10

CANISTER

17210-15H10

Unavailable

11

CAP (OD:11.5)

09251-07003

$2.53

12

CUSHION,CANISTER This part replaces 44883-06G00.

44883-06G01

$15.22

13

CLIP

09401-12404

$2.34

14

JOINT

09367-06009

Unavailable

15

HOSE, CSTR PURGE NO.1

18561-31J00

Unavailable

16

HOSE, CSTR PURGE NO.2

18561-31J10

Unavailable

17

HOSE, CSTR PURGE NO.3

18561-31J20

Unavailable

18

HOSE, CSTR SURGE NO.1

18563-31J00

Unavailable

19

HOSE, CSTR SURGE NO.2

18563-31J10

Unavailable
