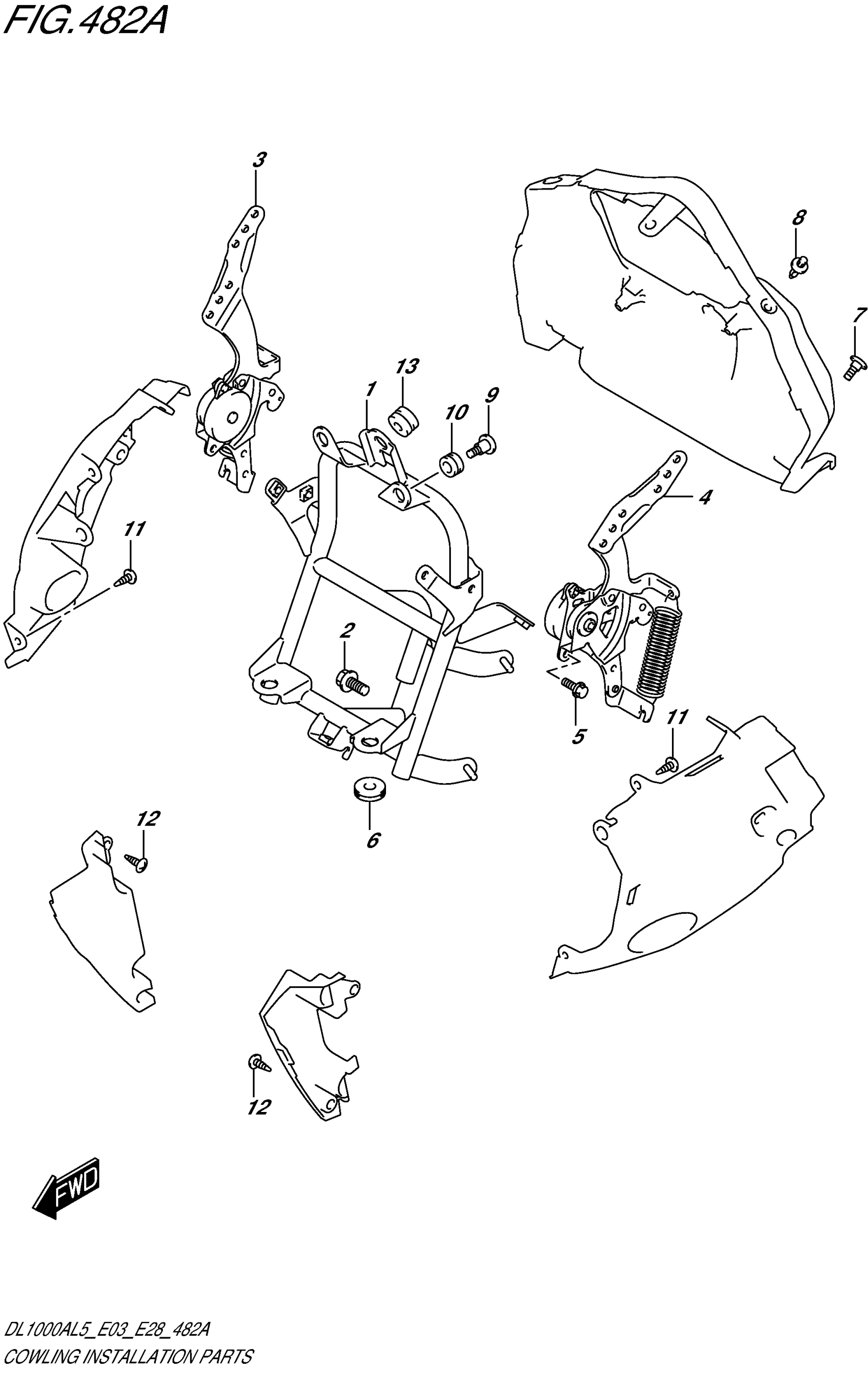

Suzuki DL1000AL5 (2015) COWLING INSTALLATION PARTS Diagram

#

Description
Price

1

BRACE, COWLING

94510-31J00

$215.23

2

BOLT

01550-0820B

$2.83

3

BRACE,WINDSCREE This part replaces 48420-31J00.

48420-31J01

$198.37

4

BRACE,WINDSCREE This part replaces 48430-31J00.

48430-31J01

$198.37

5

BOLT (6X16)

09103-06310

Unavailable

6

CUSHION

09320-08028

$3.04

7

SCREW (6X16)

09139-06120

$2.83

8

CLIP (BLACK)

09409-06314-5PK

$2.78

9

SCREW (6X20)

09139-06126

$4.04

10

CUSHION

09320-09016

$1.97

11

SCREW

03541-0512A

$1.49

12

SCREW

03541-0512A

$1.49

13

CUSHION,SPEEDOMETER This part replaces 34189-08J00.

34189-08J01

$3.59
