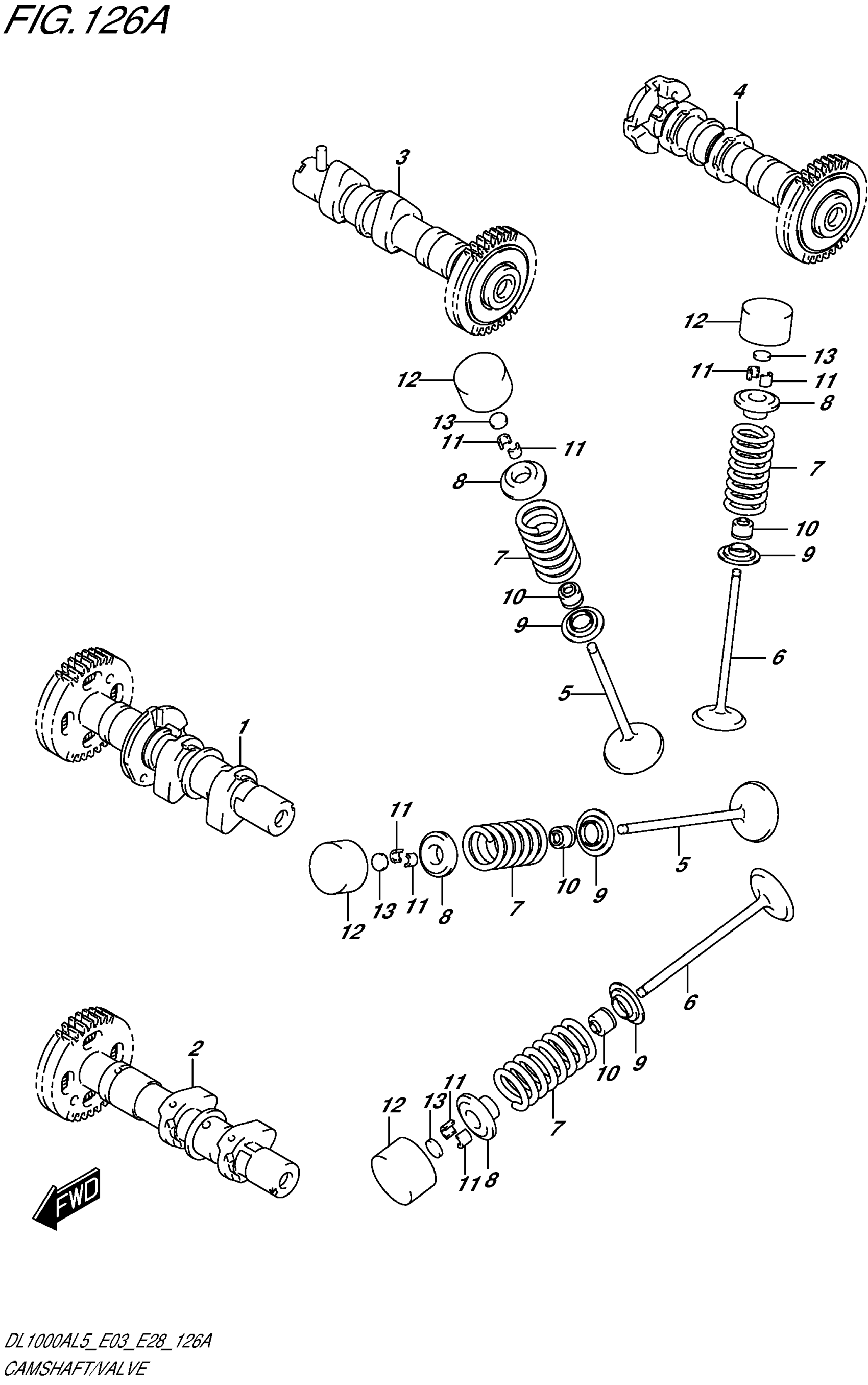

Suzuki DL1000AL5 (2015) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT ASSY, INTAKE FRONT

12701-06G00

Unavailable

2

CAMSHAFT ASSY, EXHAUST FRONT

12702-06G00

Unavailable

3

CAMSHAFT ASSY, INTAKE REAR

12703-06G00

$575.89

4

CAMSHAFT ASSY, EXHAUST REAR

12704-06G00

Unavailable

5

VALVE,INTAKE

12911-16G00

$48.38

6

VALVE, EXHAUST

12912-02F00

$72.00

7

SPRING VALVE

12921-06G00

$15.80

8

RETAINER,VALVE SPRING

12931-06G00

Unavailable

9

SEAT,VALVE SPRING

12933-06G00

$5.98

10

OIL SEAL (5.5X11X8.2)

09289-05015

$6.70

11

COTTER, VALVE

12932-24400

$1.94

12

TAPPET This part replaces 12891-02F00.

12891-02F10

$52.61

13

SHIM, TAPPET (T:2.30)

12892-41C00-230

$11.38

13

SHIM, TAPPET (T:2.35)

12892-41C00-235

$11.83

13

SHIM, TAPPET (T:2.40)

12892-41C00-240

$11.83

13

SHIM, TAPPET (T:2.45)

12892-41C00-245

$11.83

13

SHIM, TAPPET (T:2.50)

12892-41C00-250

$11.83

13

SHIM, TAPPET (T:2.55)

12892-41C00-255

$11.83

13

SHIM, TAPPET (T:2.60)

12892-41C00-260

$11.38

13

SHIM, TAPPET (T:2.65)

12892-41C00-265

$11.38

13

SHIM, TAPPET (T:2.70)

12892-41C00-270

$11.38

13

SHIM, TAPPET (T:2.75)

12892-41C00-275

$9.69

13

SHIM, TAPPET (T:2.80)

12892-41C00-280

$11.38

13

SHIM, TAPPET (T:2.85)

12892-41C00-285

$11.83

13

SHIM, TAPPET (T:2.90)

12892-41C00-290

$11.38

13

SHIM, TAPPET (T:2.95)

12892-41C00-295

$11.83

13

SHIM, TAPPET (T:3.00)

12892-41C00-300

$11.60

13

SHIM, TAPPET (T:3.05)

12892-41C00-305

$11.83

13

SHIM, TAPPET (T:3.10)

12892-41C00-310

$11.38

13

SHIM, TAPPET (T:3.15)

12892-41C00-315

Unavailable

13

SHIM, TAPPET (T:3.20)

12892-41C00-320

$11.60

13

SHIM, TAPPET (T:3.25)

12892-41C00-325

$11.83

13

SHIM, TAPPET (T:3.30)

12892-41C00-330

$11.83

13

SHIM, TAPPET (T:3.35)

12892-41C00-335

$11.83

13

SHIM, TAPPET (T:3.40)

12892-41C00-340

$11.83

13

SHIM, TAPPET (T:3.45)

12892-41C00-345

Unavailable

13

SHIM, TAPPET (T:3.50)

12892-41C00-350

$11.83

14

SHIM SET, TAPPET T:2.50, 2.55...3.45, 3.50 (5PCS.EACH) & CASE | OPT NOT ILLUSTRATED

12800-41810

$1,138.37

15

CASE, TAPPET SHIM | OPT NOT ILLUSTRATED

99000-69471

Unavailable
