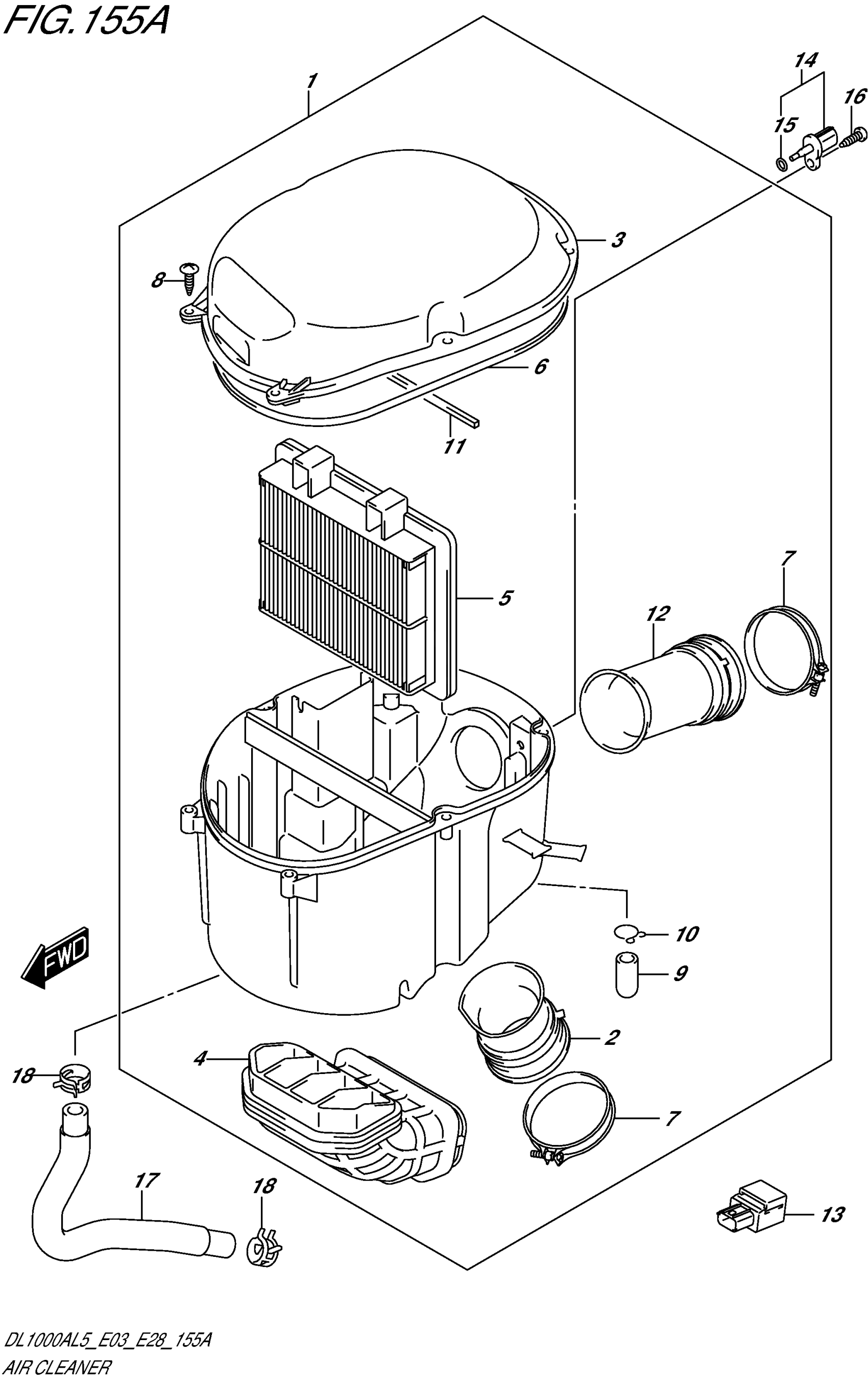

Suzuki DL1000AL5 (2015) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-31J00

Unavailable

2

TUBE, OUTLET FR

13881-31J00

$18.25

3

CAP, AIR CLEANER

13741-31J00

Unavailable

4

TUBE, INLET

13891-31J00

Unavailable

5

FILTER, AIR CLEANER

13780-31J00

$41.00

6

GASKET, AIR CLEANER

13746-31J00

$6.65

7

CLAMP, OUTLET TUBE

13827-31J00

$16.03

8

SCREW

03541-0520B

$2.63

9

.PLUG This part replaces 13878-10G00.

13878-10G01

$4.93

10

CLIP

09401-14301

$2.35

11

GASKET, AIR CLEANER

13746-31J10

$12.58

12

TUBE, OUTLET RR

13882-31J00

$28.90

13

SENSOR BOOST

18590-32G00

$298.15

14

SENSOR, AIR TEMP

13650-41F10

$63.25

15

O-RING

13655-41F10

Unavailable

16

SCREW

03511-0516A

$1.86

17

TUBE,BREATHER

13850-31J00

$36.78

18

CLIP

09401-22405

Unavailable
