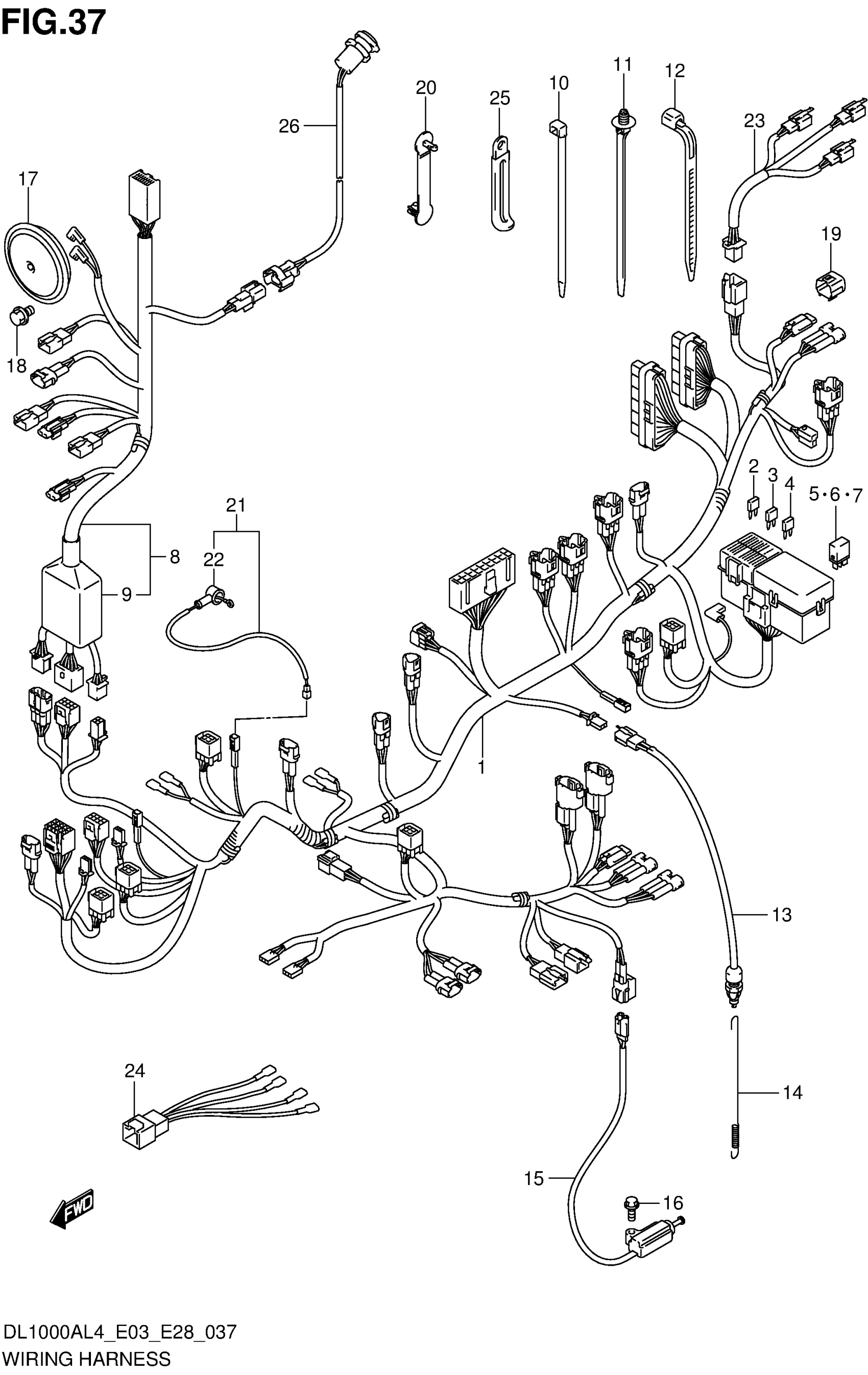

Suzuki DL1000AL4 (2014) WIRING HARNESS (DL1000AL4 E28) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1

36610-31J80

$1,257.15

2

FUSE (10A)

09481-10504

$2.06

3

FUSE (15A)

09481-15504

$2.07

4

FUSE (25A)

09481-25504

$2.75

5

RELAY ASSY, FUEL PUMP

38860-76F01

$34.37

6

RELAY ASSY, FAN MOTOR

38860-76F01

$34.37

7

RELAY ASSY, SIDE STAND

38860-76F01

$34.37

8

HARNESS,WIRING This part replaces 36620-31J00.

36620-31J01

$285.78

9

COVER, SPEEDOMETER

36618-18G10

Unavailable

10

CLAMP (L:145)

09407-14407

$3.57

11

CLAMP (L:154)

09407-17403

$4.91

12

CLAMP (L:125)

09407-14403

$2.26

13

SWITCH ASSY, STOP LAMP

37740-31D00

$28.23

14

SPRING,STOP LAMP SWITCH

43259-31J00

$6.82

15

SWITCH ASSY,SIDE STAND This part replaces 37840-24F00.

37840-24F02

$58.63

16

BOLT (8X35)

09103-08357

$4.17

17

HORN ASSY

38500-41F50

$79.70

18

BOLT

01550-0612B

$2.39

19

CAP,TS This part replaces 36654-06J00.

36654-06J01

$13.85

20

CLAMP

36651-48E00

$3.25

21

WIRE, OIL PRESSURE SWITCH LEAD

36851-31J00

Unavailable

22

CAP, OIL PRESSURE SWITCH

36618-43410

$2.90

23

WIRE, REAR TURNSIGNAL LEAD

36856-31J00

Unavailable

24

WIRE, IGNITION COIL LEAD

36854-31J00

Unavailable

25

CLAMP (L:45)

09404-06429

$1.83

26

TERMINAL,POWER SOURCE

38850-31J00

$73.47
