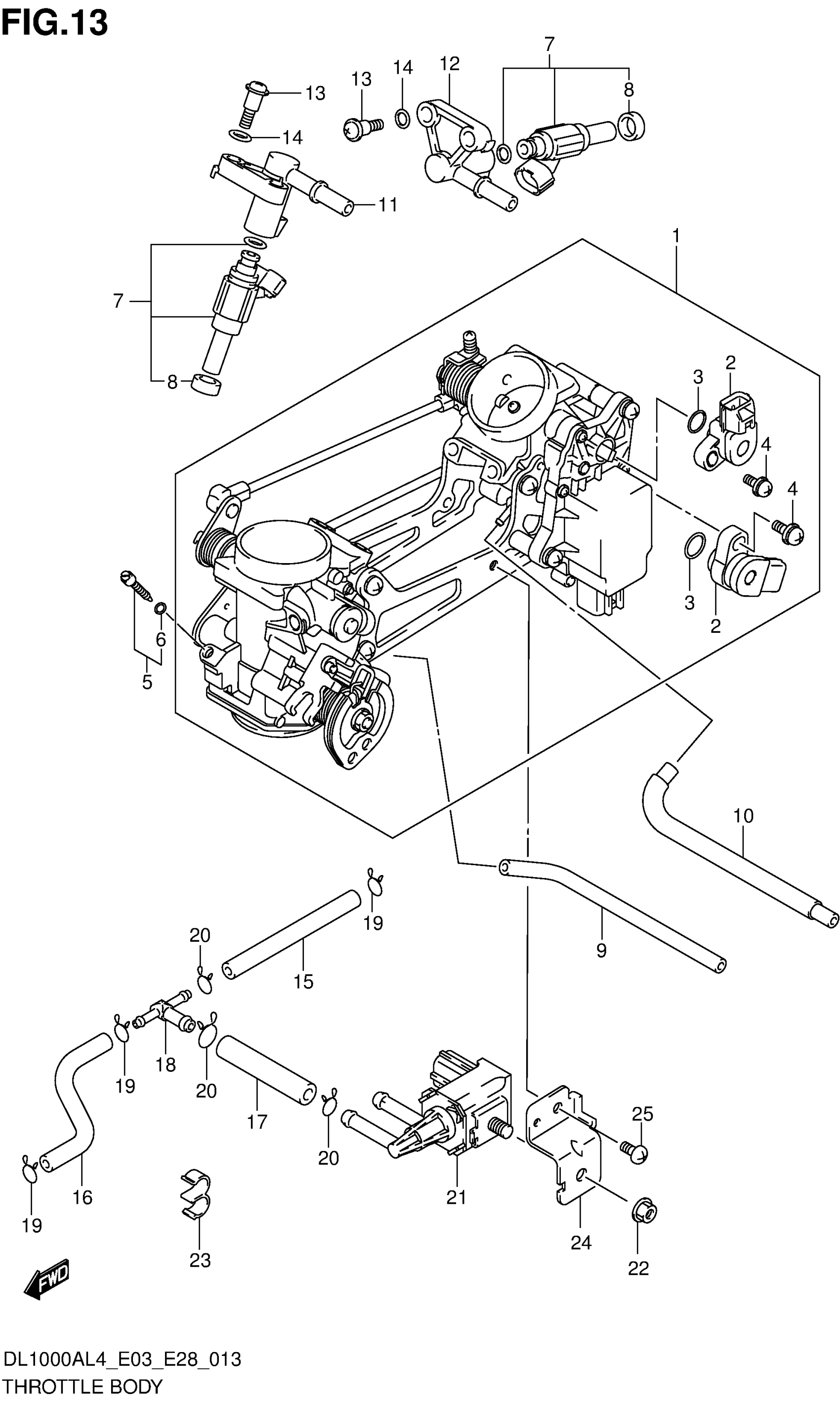

Suzuki DL1000AL4 (2014) THROTTLE BODY (DL1000AL4 E33) Diagram

#

Description
Price

1

THROTTLE BODY

13405-31J10

Unavailable

2

SENSOR ASSY

13580-27G21

$145.53

3

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

4

SCREW

13605-02F00

$3.71

5

ADJUSTER

13662-22J00

$16.97

6

O RING

13453-36F00

$5.58

7

.INJECTOR ASSY

15710-31J00

Unavailable

8

SEAL

15722-14J00

$11.36

9

HOSE This part replaces 13683-48G10.

13683-48G11

$41.20

10

HOSE

13683-31J20

Unavailable

11

DELIVERY PIPE

15731-11J00

Unavailable

12

DELIVERY PIPE

15732-11J00

Unavailable

13

SCREW

13601-11J00

$4.79

14

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43

15

HOSE

13681-06G40

Unavailable

16

HOSE

13683-31J00

Unavailable

17

HOSE

13683-31J10

Unavailable

18

NIPPLE

13685-04F10

$11.07

19

CLIP This part replaces 13671-12C00.

09401-06101

$2.03

20

CLIP This part replaces 13671-48B10.

09401-10401

$1.49

21

VALVE,CANISTER PURGE

18117-52G10

$151.17

22

NUT

08316-1006A

$2.19

23

CLAMP

09408-00200

$2.67

24

BRACKET

13627-31J00

$38.05

25

SCREW

13602-06128

$2.96
