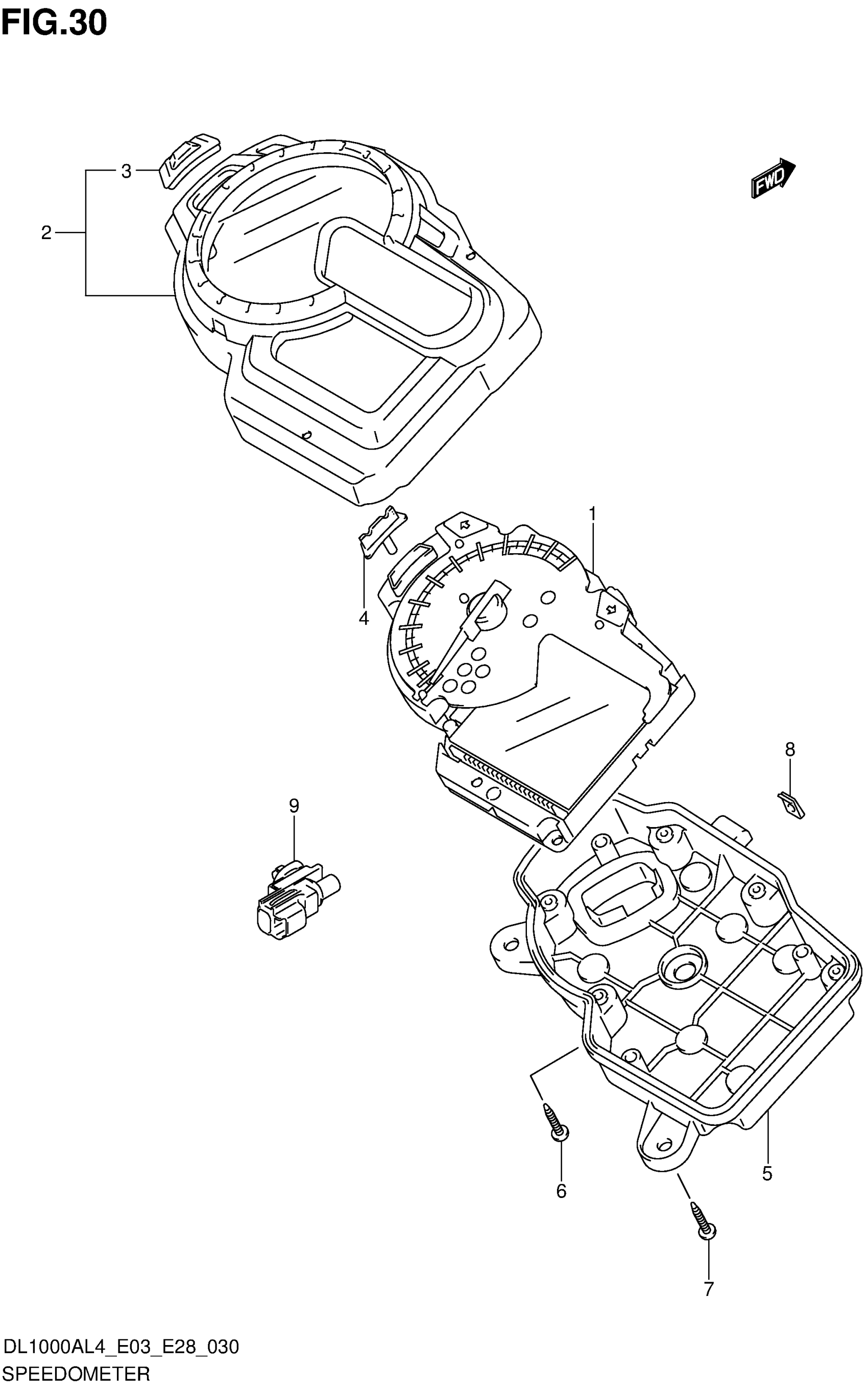

Suzuki DL1000AL4 (2014) SPEEDOMETER (DL1000AL4 E03) Diagram

#

Description
Price

1

SPEEDOMETER

34120-31J10

Unavailable

2

CASE, UPPER This part replaces 34150-31J00.

34150-31J01

$175.35

3

RUBBER SWITCH

34126-31J00

$32.03

4

KNOB

34124-31J00

Unavailable

5

CASE, LOWER This part replaces 34152-31J00.

34152-31J01

$68.88

6

SCREW (3X12)

34183-29F00

$3.84

7

SCREW

03541-0516A

$1.49

8

NUT

09148-05052

$3.37

9

SENSOR, AIR TEMP

95643-58J00

$50.50
