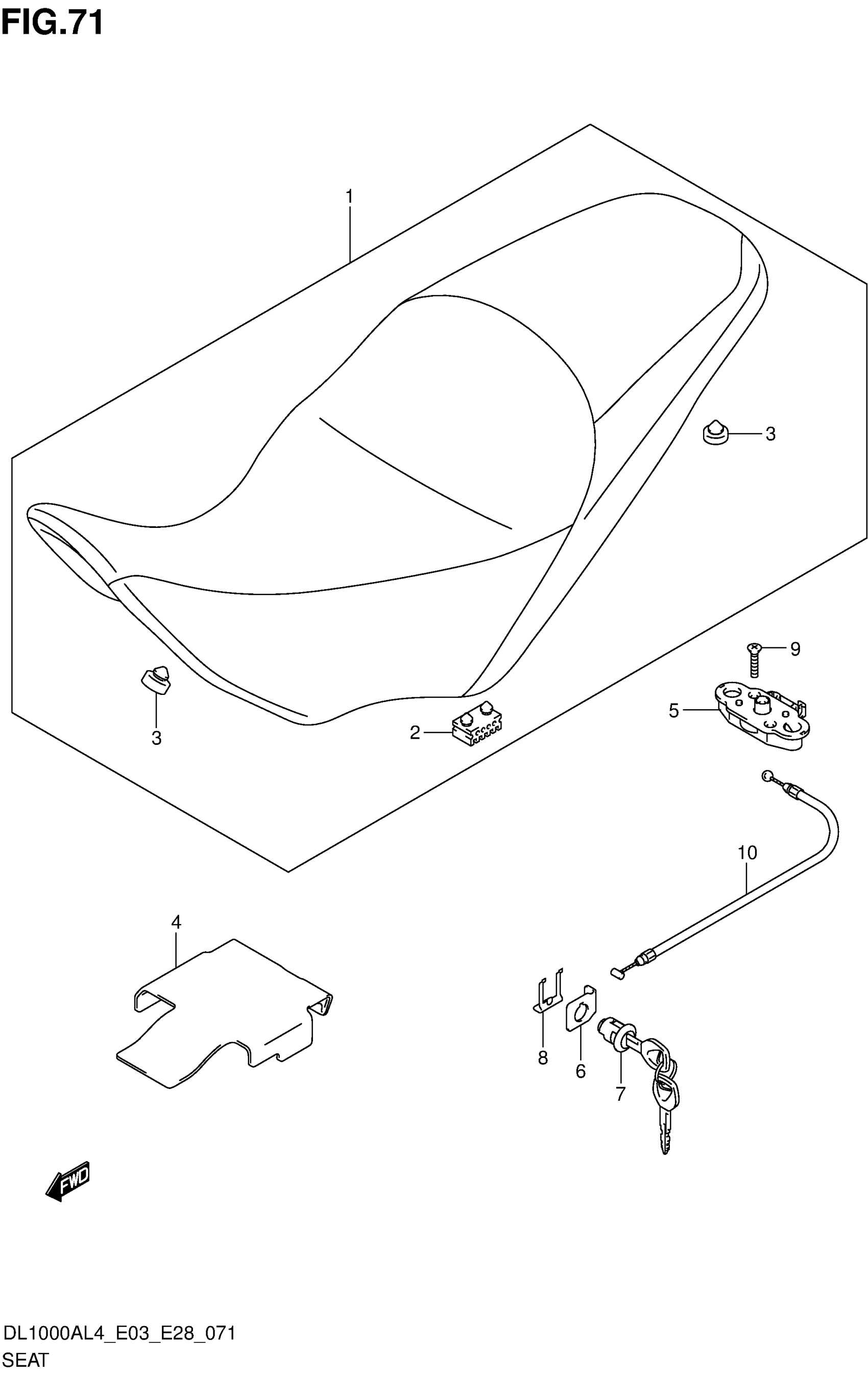

Suzuki DL1000AL4 (2014) SEAT Diagram

#

Description
Price

1

SEAT ASSY | FOR YVB,YWW,YYG This part replaces 45100-31J00-AR8.

45100-31J01-AR8

$285.62

1

SEAT ASSY (KHAKI/BLACK) | FOR PRU

45100-31J00-AT3

Unavailable

2

CUSHION

45149-31300

$3.56

3

CUSHION

09321-10012

$2.92

4

SHEET, HEAT SHIELD RUBBER

45256-31J00

Unavailable

5

BRACKET, SEAT SUPPORT

45220-47H00

$138.38

6

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.36

7

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

$107.30

8

PLATE, SEAT LOCK ASSY

45289-11F00

$6.20

9

SCREW

02122-0630A

$1.74

10

CABLE, SEAT LOCK

45280-31J00

Unavailable
