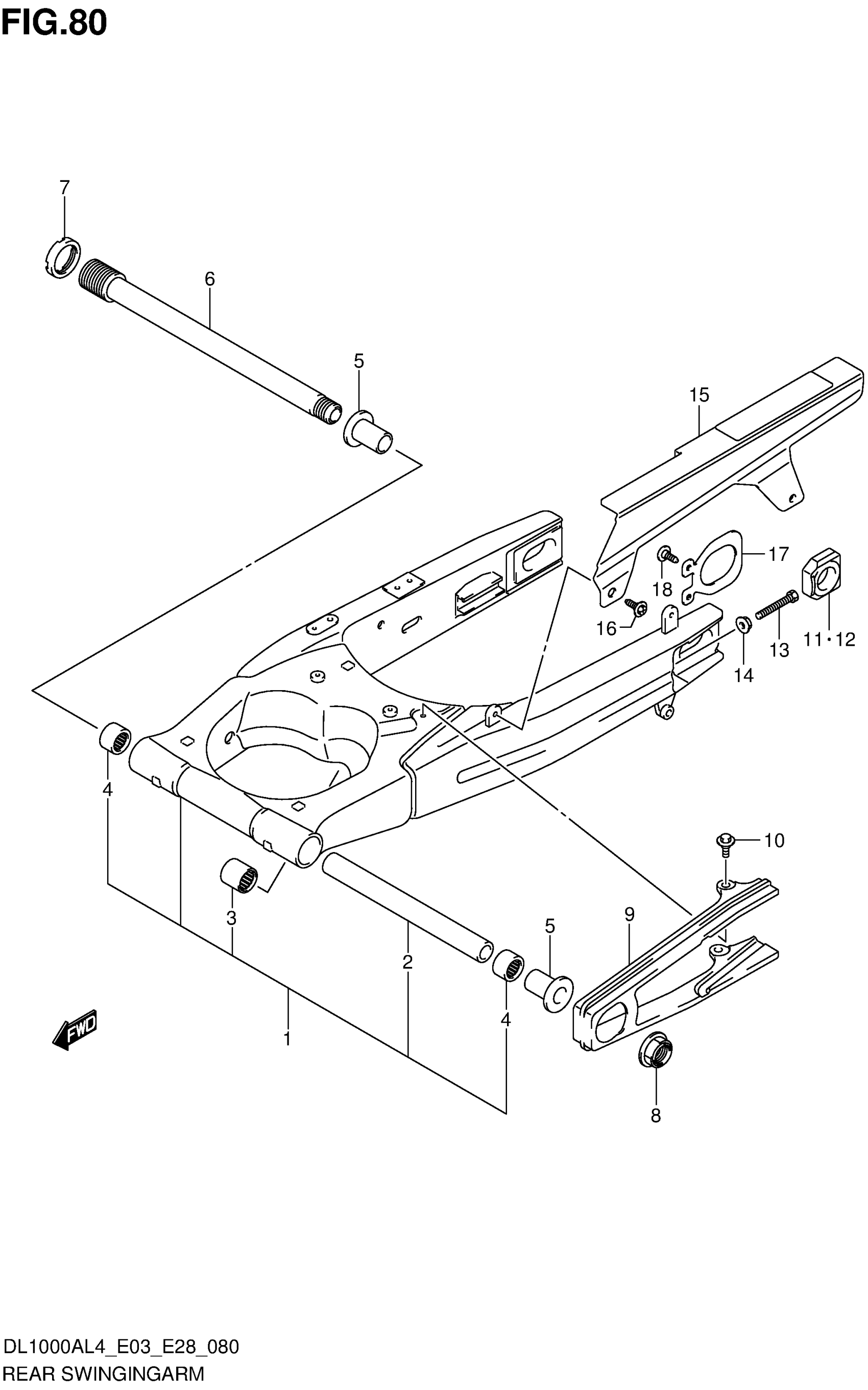

Suzuki DL1000AL4 (2014) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR (BLACK)

61000-31J00-YAP

Unavailable

2

SPACER (20.8X27.2X196.7)

61281-31J00

Unavailable

3

BEARING (20X27X30)

09263-20070

$37.72

4

.BEARING (27X35X35) This part replaces 09263-27013.

09263-27015

$27.55

5

SPACER, SWINGING ARM

61251-41G00

$38.37

6

SHAFT,RR SWGARM PIVOT

61211-31J00

Unavailable

7

NUT, PIVOT SHAFT

61214-42E10

$42.53

8

NUT

09159-20006

$27.12

9

BUFFER,CHAIN TOUCH DEFENSE This part replaces 61273-31J00.

61273-31J01

$34.88

10

BOLT (6X17.8)

09111-06072

$2.03

11

ADJUSTER, CHAIN, L This part replaces 61446-40F10.

61446-40F00

$47.20

12

ADJUSTER, CHAIN, R This part replaces 61445-40F20.

61445-40F00

$47.20

13

BOLT (8X50)

09100-08287

$3.10

14

NUT

08316-1008A

$2.45

15

CASE,CHAIN

61310-16G00

$98.40

16

BOLT (6X12)

09111-06107

$2.60

17

PLATE, RR SWINGARM BRKT

61124-33E00

$6.85

18

SCREW (6X12)

09125-06060

$1.78
