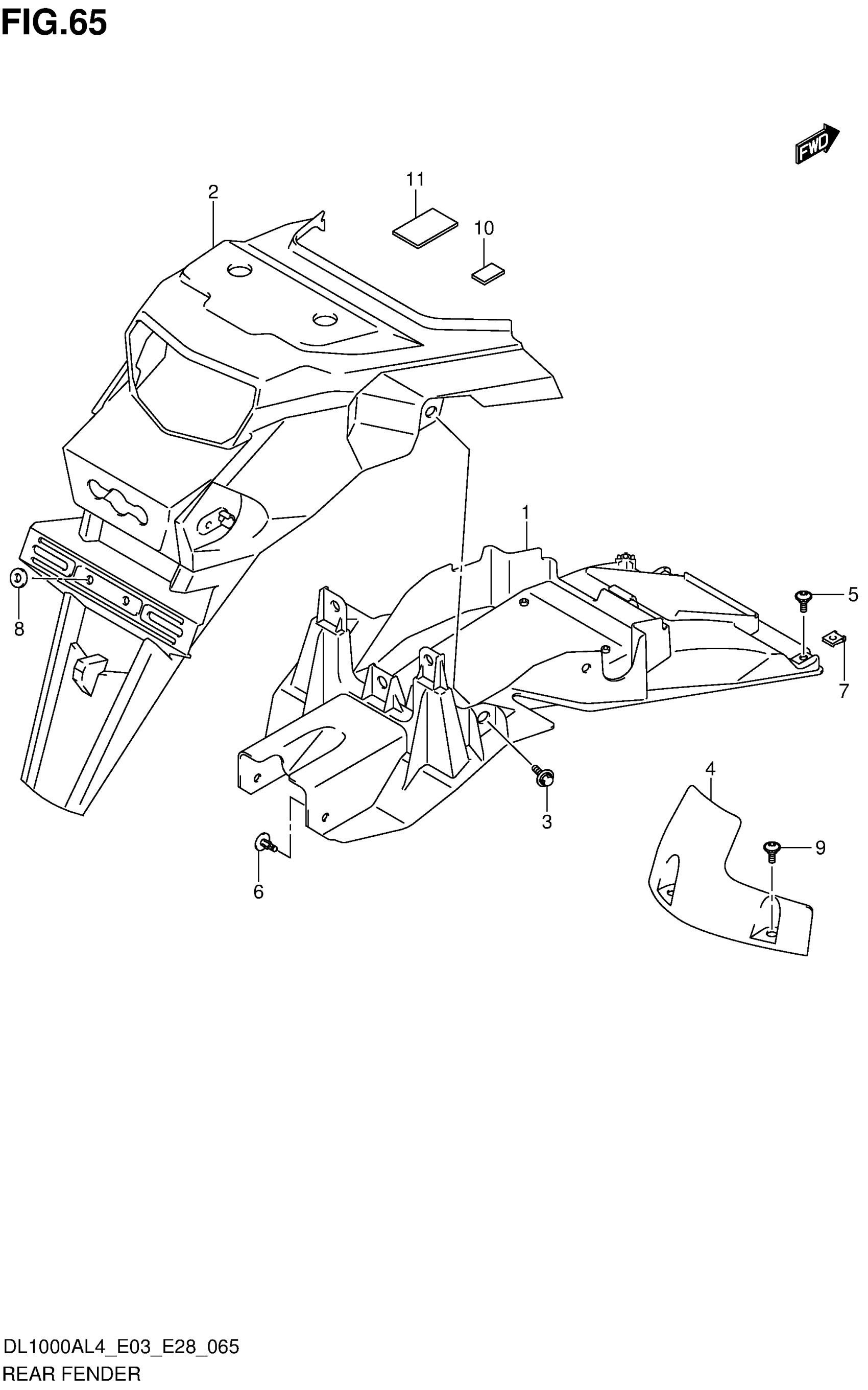

Suzuki DL1000AL4 (2014) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR FRONT (BLACK)

63111-31J00-291

$144.45

2

FENDER, REAR (BLACK)

63112-31J00-291

$144.45

3

BOLT (6X20)

09116-06165

$3.03

4

MUD GUARD, REAR FENDER

63411-31J00

$13.75

5

BOLT (5X13)

09139-05074

$2.61

6

CLIP

94479-35F00

$5.62

7

NUT

09148-05052

$3.37

8

WASHER

08322-0106B

$2.26

9

SCREW (5X13)

47912-31J00

$2.92

10

CUSHION, BATTERY (30X130X3) This part replaces 33972-31D00.

33652-19B00

$6.03

11

CUSHION

15896-65J00

Unavailable
