Description

Price

1

CALIPER ASSY,RR

69100-31J00-999

$444.30

2

PISTON SET

69100-44890

$66.40

3

SEAL SET, PISTON

69102-05880

$18.94

4

BOOT, AXLE

59112-44B00

$8.91

5

SPRING, PAD

69115-44G00

$17.58

6

PIN, PAD

59141-40F00

$37.45

7

PIN, BOLT

69105-44G00

$14.08

8

RETAINER

69116-44G00

$10.93

9

BLEEDER

59121-18410

$8.73

10

CAP, BLEEDER PLUG

55156-66310

$5.17

11

BRACKET

69150-31J00

$293.32

12

BOLT

69182-44G00

$12.10

13

SLEEVE

69185-44G00

$21.58

14

BOOT, SLEEVE

69186-44G00

$13.22

15

PAD & SHIM SET

69101-44890

$61.97

16

INSULATOR

69132-44G10

$17.78

17

SHIM

69133-44G00

$9.90

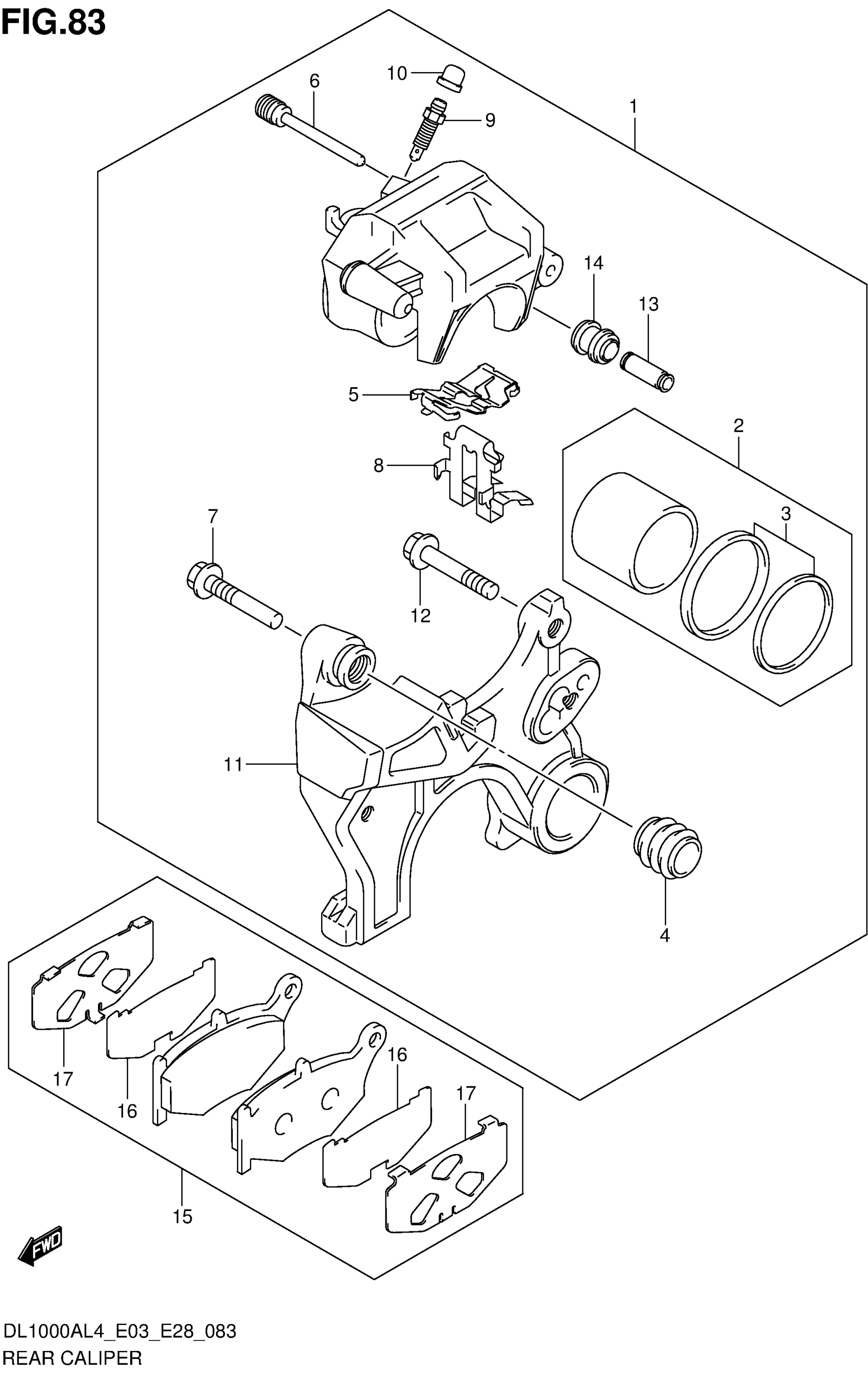

Suzuki DL1000AL4 (2014) REAR CALIPER Diagram
