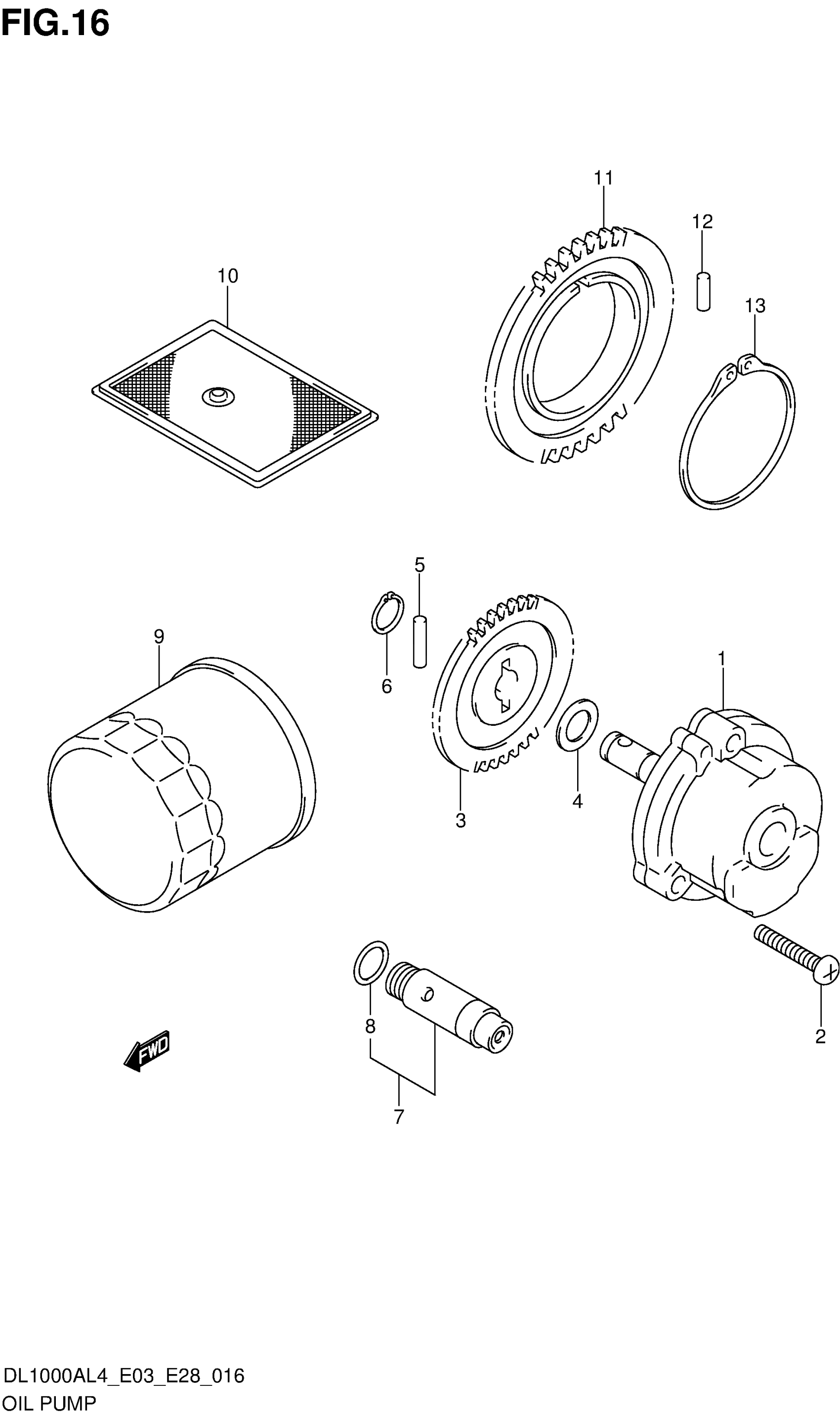

Suzuki DL1000AL4 (2014) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY,ENG OIL

16400-02FB0

$208.38

2

BOLT (6X25)

07130-0625A

$2.62

3

GEAR, OIL PUMP DRIVEN (NT:29)

16331-02F00

$69.38

4

SHIM (10X18X0.5)

09181-10158

$1.97

5

PIN (4X15.8)

09261-04009

$1.56

6

CIRCLIP

08331-31109

$1.78

7

VALVE ASSY, OIL RELIEF

16440-24F00

$50.04

8

O RING (D:1.9,ID:13)

09280-13004

$2.17

9

FILTER ASSY, ENGINE OIL

16510-07J00

$13.10

10

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

$13.10

11

GEAR, OIL PUMP DRIVE (NT:41)

16321-02F00

Unavailable

12

PIN (6X6)

09261-06002

$1.53

13

CIRCLIP

08331-31509

Unavailable
