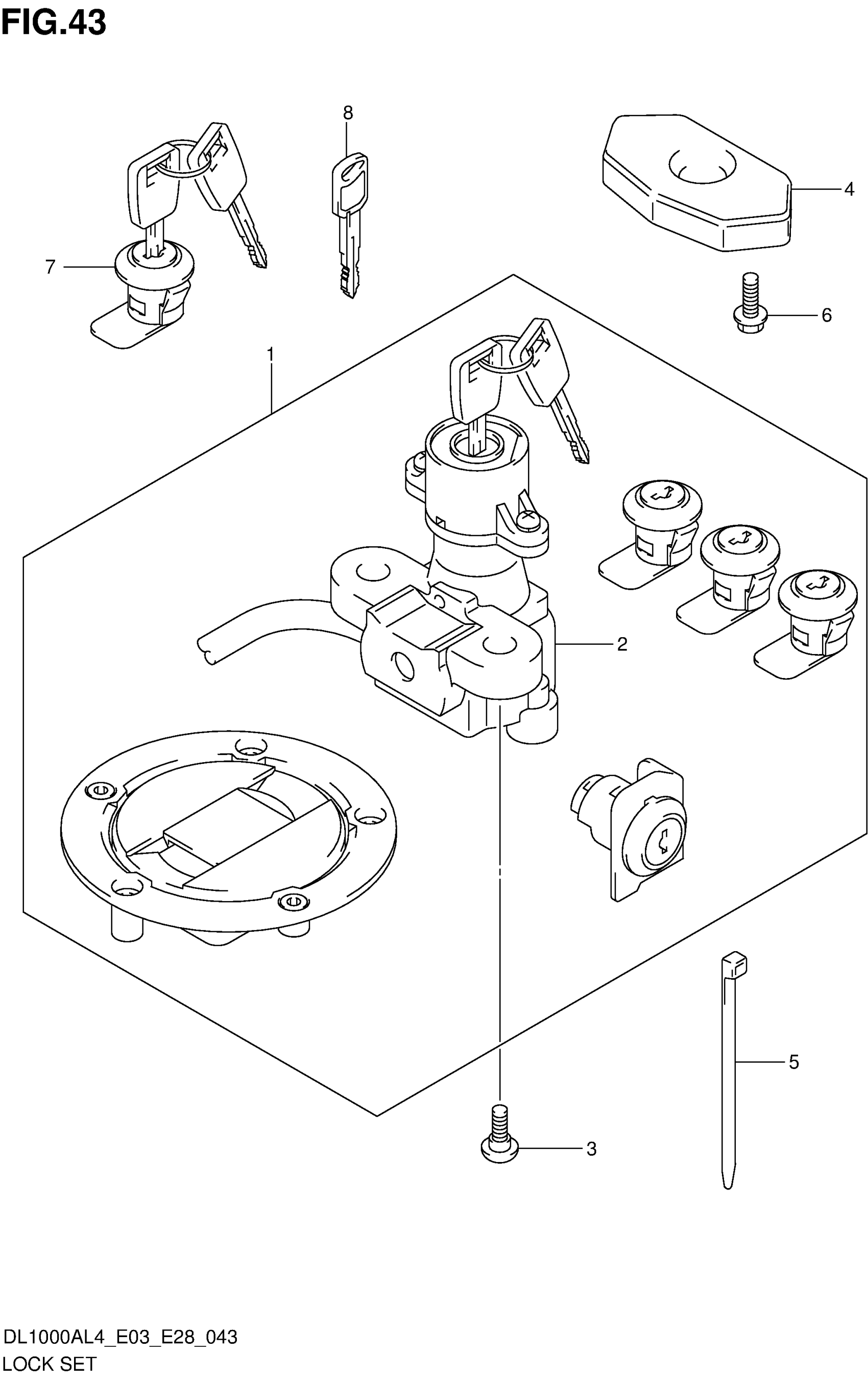

Suzuki DL1000AL4 (2014) LOCK SET (FOR PANNIR CASE) (DL1000AL4 E33) Diagram

#

Description

Price

1

LOCK SET This part replaces 37000-31840.

37000-31841

Unavailable

2

LOCK ASSY,STEER This part replaces 37100-31J10.

37100-31J13

$243.08

3

BOLT (8X20)

09139-08016

$3.04

4

COVER,STEERING LOCK This part replaces 37180-15H00.

37180-15HA0

$22.35

5

CLAMP (L:145)

09407-14407

$2.80

6

BOLT

01547-0512B

$3.32

7

LOCK SET, CASE

95700-31870

$73.38

8

KEY, BLANK | OPT

37146-11J00

$57.43
