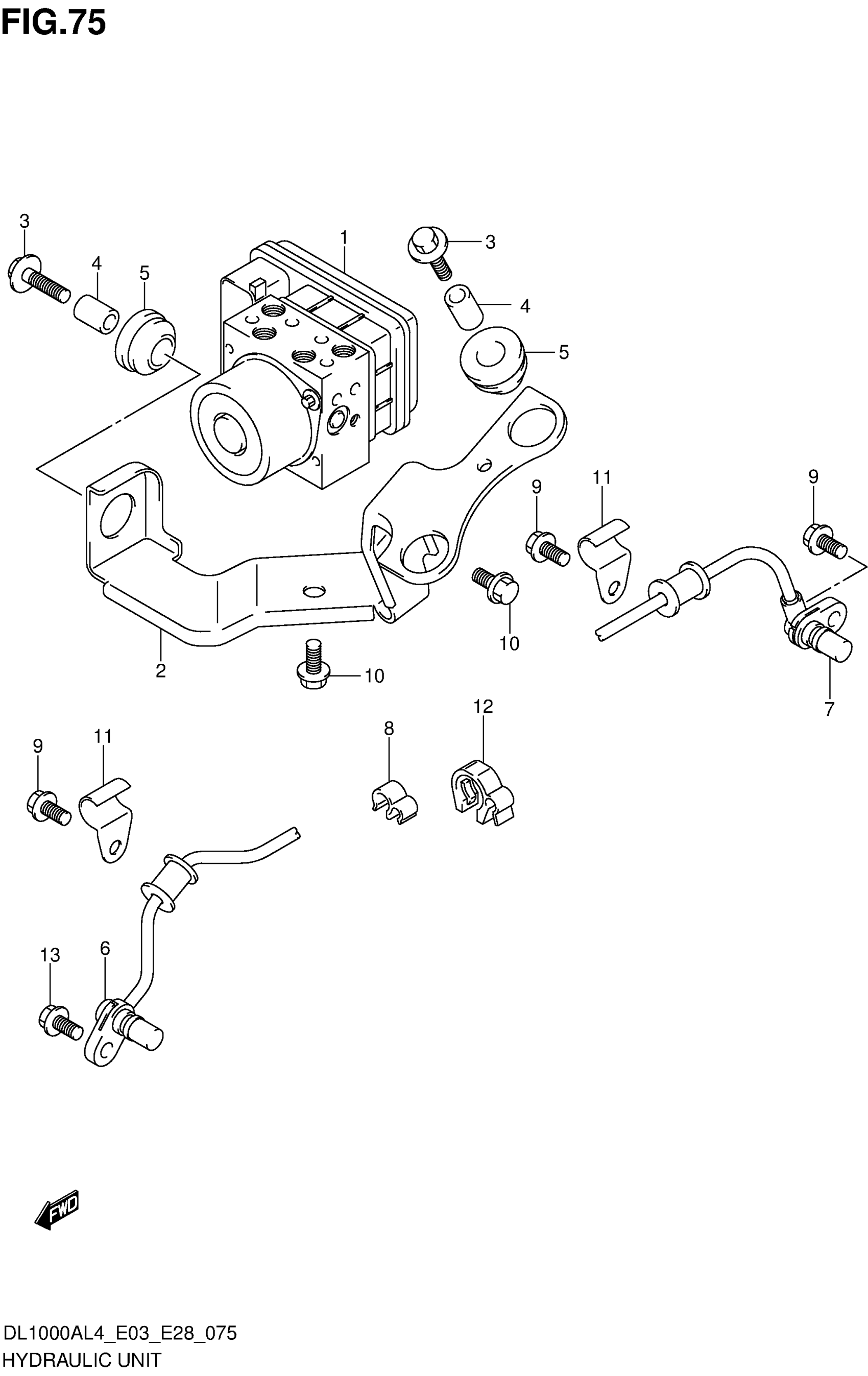

Suzuki DL1000AL4 (2014) HYDRAULIC UNIT Diagram

#

Description
Price

1

UNIT ASSY, HYDRAULIC ABS

55610-31J00

$2,737.00

2

HOLDER, HYDRAULIC UNIT

55660-31J00

$28.48

3

BOLT (6X25)

55661-10G00

Unavailable

4

SPACER, HYDRAULIC UNIT

55662-10G00

Unavailable

5

RUBBER

09320-10066

$4.82

6

SENSOR, FRONT WHEEL ABS

55710-31J00

$133.08

7

SENSOR, REAR WHEEL ABS

65710-31J00

$145.45

8

CLAMP

09408-00266

$2.51

9

BOLT

01547-0612A

$2.03

10

BOLT

01550-0616A

$1.97

11

CLAMP, SENSOR LEAD

55731-23H00

Unavailable

12

CLAMP

09408-00307

$2.97

13

BOLT

01547-0612A

$2.03
