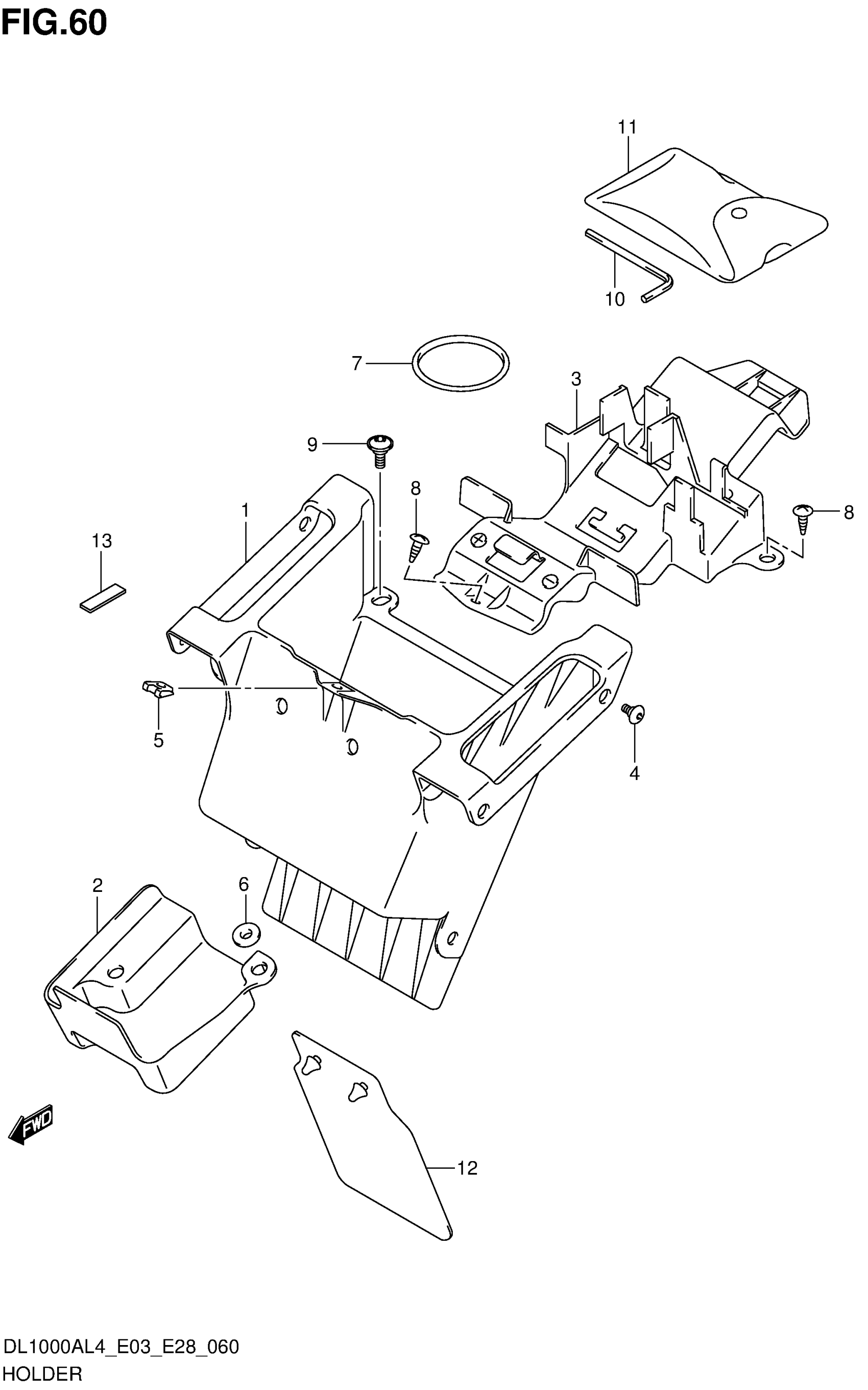

Suzuki DL1000AL4 (2014) HOLDER (DL1000AL4 E28) Diagram

#

Description
Price

1

HOLDER, BATTERY

47414-31J00

$38.77

2

COVER, ACTUATOR

47421-31J00

Unavailable

3

HOLDER, TOOL

47431-31J00

Unavailable

4

SCREW (6X12)

09139-06144

$2.50

5

NUT (M5)

09148-05045

$2.36

6

WASHER

09169-06082

$4.32

7

O RING(D:3.5,ID This part replaces 09280-63003.

09280-61004

$2.60

8

SCREW

03541-0512B

$1.78

9

BOLT (5X13)

09139-05074

$2.61

10

HEXAGON SPANNER, 5

09816-00059

$8.45

11

TOOL ASSY This part replaces 09800-21055.

09800-21102

$20.21

12

MUDGUARD, ACTUATOR COVER

63411-34E00

Unavailable

13

CUSHION

94424-03H00

Unavailable
