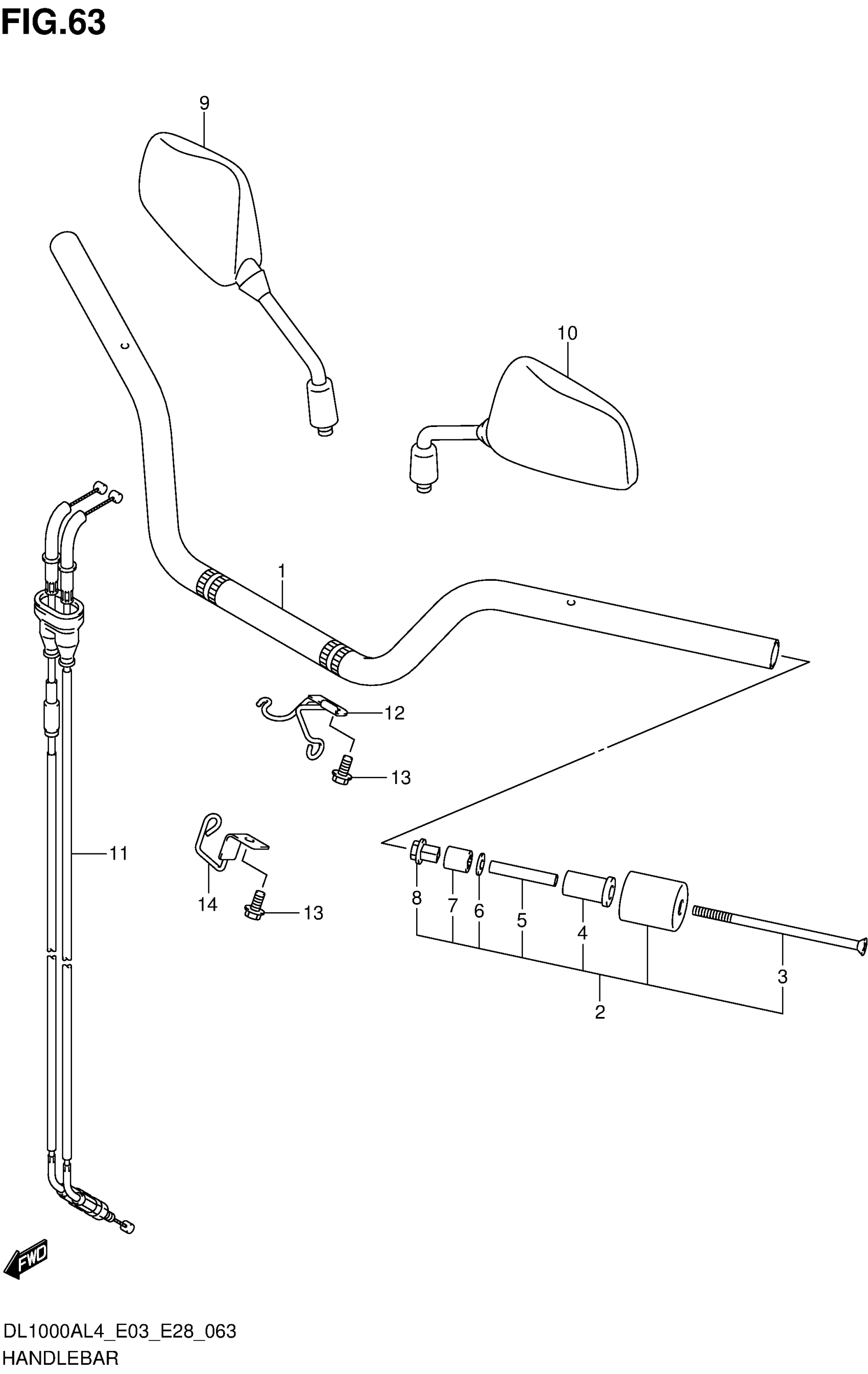

Suzuki DL1000AL4 (2014) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (SILVER)

56111-31J00-YMC

$159.92

2

BALANCER SET,HANDLEBAR This part replaces 56200-32840.

56200-32842

$46.23

3

SCREW (6X110)

09127-06018

$3.38

4

EXPANDER, OUTER

56272-06G00

$8.13

5

SPACER

56276-17D00

$5.07

6

.WASHER (6.5X16X1.6)

09160-06130

$1.91

7

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.72

8

NUT

56273-10G10

$8.65

9

MIRROR ASSY, RR VIEW RH

56500-04F30

$124.58

10

MIRROR ASSY, RR VIEW LH

56600-04F30

$123.98

11

CABLE SET,THROT This part replaces 58300-31J00.

58300-31J01

$108.02

12

GUIDE, CABLE

58620-31J00

Unavailable

13

BOLT

01547-0612A

$2.03

14

GUIDE, CABLE

58620-31J10

$11.93
