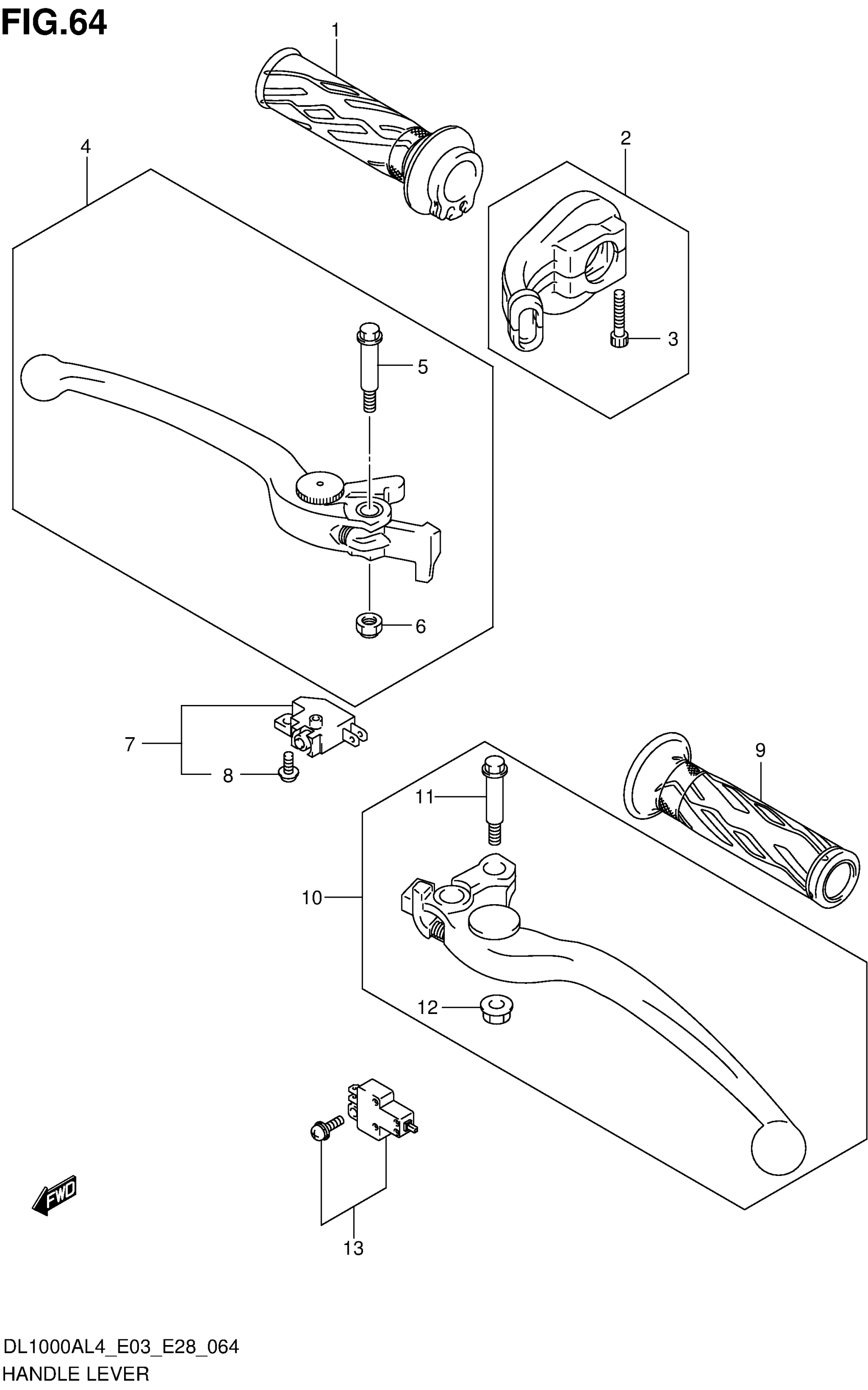

Suzuki DL1000AL4 (2014) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-21H01.

57110-21H02

$20.33

2

CASE ASSY,THROT This part replaces 57100-42F00.

57100-42F01

$54.75

3

BOLT

07130-0525B

$2.52

4

LEVER ASSY, BRAKE

57300-10G32

$44.13

5

BOLT

57431-17H02

$7.13

6

NUT

08319-2106A

$1.91

7

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$38.46

8

SCREW

57465-17C00

$2.19

9

GRIP, LH This part replaces 57211-21H00.

57211-21H01

$11.13

10

LEVER ASSY,CLUTCH

57500-24F22

$58.96

11

BOLT

57431-17H02

$7.13

12

NUT

08316-1606B

$2.93

13

SWITCH ASSY,CLUTCH

57560-02FA0

$23.58
