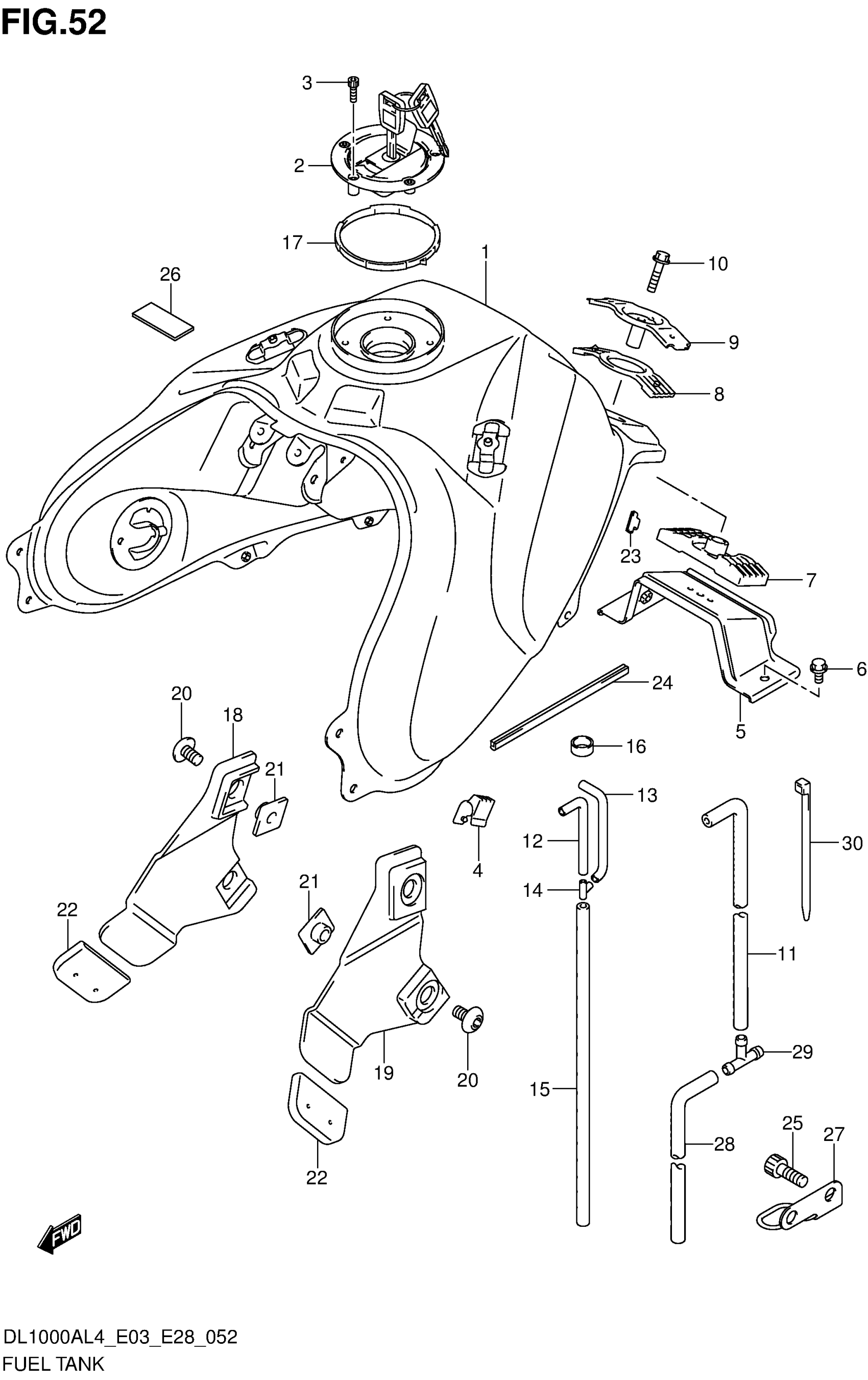

Suzuki DL1000AL4 (2014) FUEL TANK (DL1000AL4 E03) Diagram

#

Description
Price

1

TANK, FUEL (BLACK) This part replaces 44100-31J00-YVB.

44100-31J01-YVB

Unavailable

1

TANK, FUEL (WHITE) This part replaces 44100-31J00-YWW.

44100-31J01-YWW

Unavailable

1

TANK, FUEL (RED) This part replaces 44100-31J00-YYG.

44100-31J01-YYG

$1,201.45

1

TANK ASSY,FUEL( This part replaces 44100-31J00-PRU.

44100-31J01-PRU

$1,283.18

2

CAP SET,FUEL TA This part replaces 44200-17810.

44200-17811

$215.69

3

BOLT

44244-11J00

$4.00

4

CUSHION,FUEL TANK SIDE

44541-31J00

Unavailable

5

BRACKET,FUEL TANK REAR

44550-31J00

Unavailable

6

BOLT (8X16)

01550-0816A

$2.32

7

CUSHION,FUEL TANK RR LWR

44545-06G00

$18.25

8

CUSHION,FUEL TANK RR UPR

44542-06G00

$16.78

9

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

10

BOLT (8X35)

01550-0835A

$3.04

11

HOSE, WATER DRAIN

44423-31J00

$17.80

12

HOSE, FUEL TANK BRTHR NO.1

44424-31J00

Unavailable

13

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$13.72

14

3 WAY

09367-06007

$3.46

15

HOSE,FUEL TANK BRTHR NO.2

44424-31J10

Unavailable

16

HOSE (12X16X600) | L:600->10

09352-12163-600

Unavailable

17

MOLDING, FUEL TANK COVER

68241-31J00

Unavailable

18

BRACKET, FUEL TANK COVER SIDE, RH

44179-31J00

$11.58

19

BRACKET, FUEL TANK COVER SIDE, LH

44189-31J00

$11.58

20

SCREW (6X10)

09139-06181

$3.83

21

NUT(M6)

44523-47H00

$10.02

22

CUSHION,FUEL TANK COVER BRKT

44542-31J00

$4.82

23

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.80

24

MOLDING, FUEL TANK RR

44552-24B00

$14.08

25

BOLT

07130-1016B

Unavailable

26

CUSHION, FUEL TANK

44544-31J00

$5.52

27

GUIDE,DRAIN HOSE

44480-31J00

$10.18

28

HOSE, FUEL TANK DRAIN NO.2

44423-31J10

Unavailable

29

JOINT, WATER DRAIN

09367-08005

$4.83

30

CLAMP

09407-14407

$3.57
