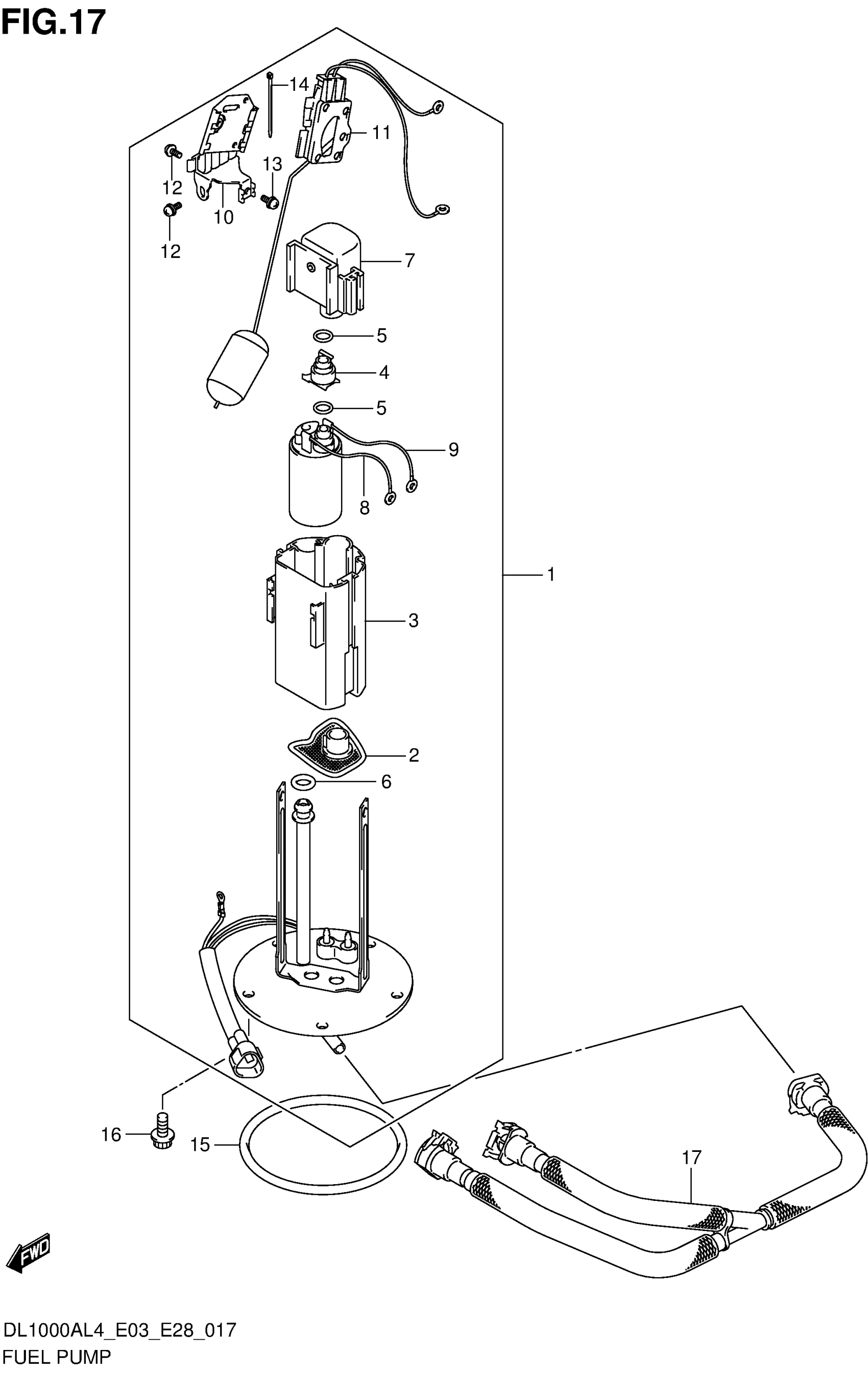

Suzuki DL1000AL4 (2014) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, FUEL This part replaces 15100-31J00.

15100-31J01

$740.47

2

STRAINER

15420-05H00

$41.17

3

CUP, RESERVOIR

15111-27G00

$42.43

4

JOINT

15112-05H00

$28.12

5

O RING

15113-05H00

$19.98

6

O RING

15113-35F00

$8.91

7

REGULATOR

15610-14J00

$171.30

8

WIRE, EARTH

15114-14J00

Unavailable

9

.WIRE,LEAD

15115-08J00

Unavailable

10

BRACKET, FUEL GAUGE

15181-31J00

Unavailable

11

GAUGE ASSY

34810-31J00

$179.03

12

SCREW

15116-10F00

$5.58

13

SCREW

15116-31J00

Unavailable

14

BINDER

15151-31J00

Unavailable

15

O-RING

15201-35F00

$27.60

16

BOLT

07120-0612A

$2.50

17

HOSE, FUEL

15810-31J00

$136.47
