Description

Price

1

WHEEL,FR (BLACK) This part replaces 54111-31J00-019.

54111-31J01-019

$515.80

2

SPACER, FRONT WHEEL BEARING

54731-33E20

$49.02

3

BEARING (25X52X15) This part replaces 09262-25167.

09262-25191

$24.28

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

AXLE,FR

54711-31J00

$117.64

6

SPACER, FRONT AXLE

54751-41G10

$19.66

7

RING, SPEED SENSOR FRONT

54162-27G00

$140.15

8

BOLT

07130-0512A

$2.19

9

DISC, FRONT BRAKE

59210-31J00

$300.52

10

BOLT (8X21)

09106-08160

$3.57

11

TIRE, FRONT (110/80R19M/C 59V)

55110-31J00

Unavailable

12

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

13

NUT, FRONT AXLE

54712-47H00

$41.53

14

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$8.60

14

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$10.07

14

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$11.47

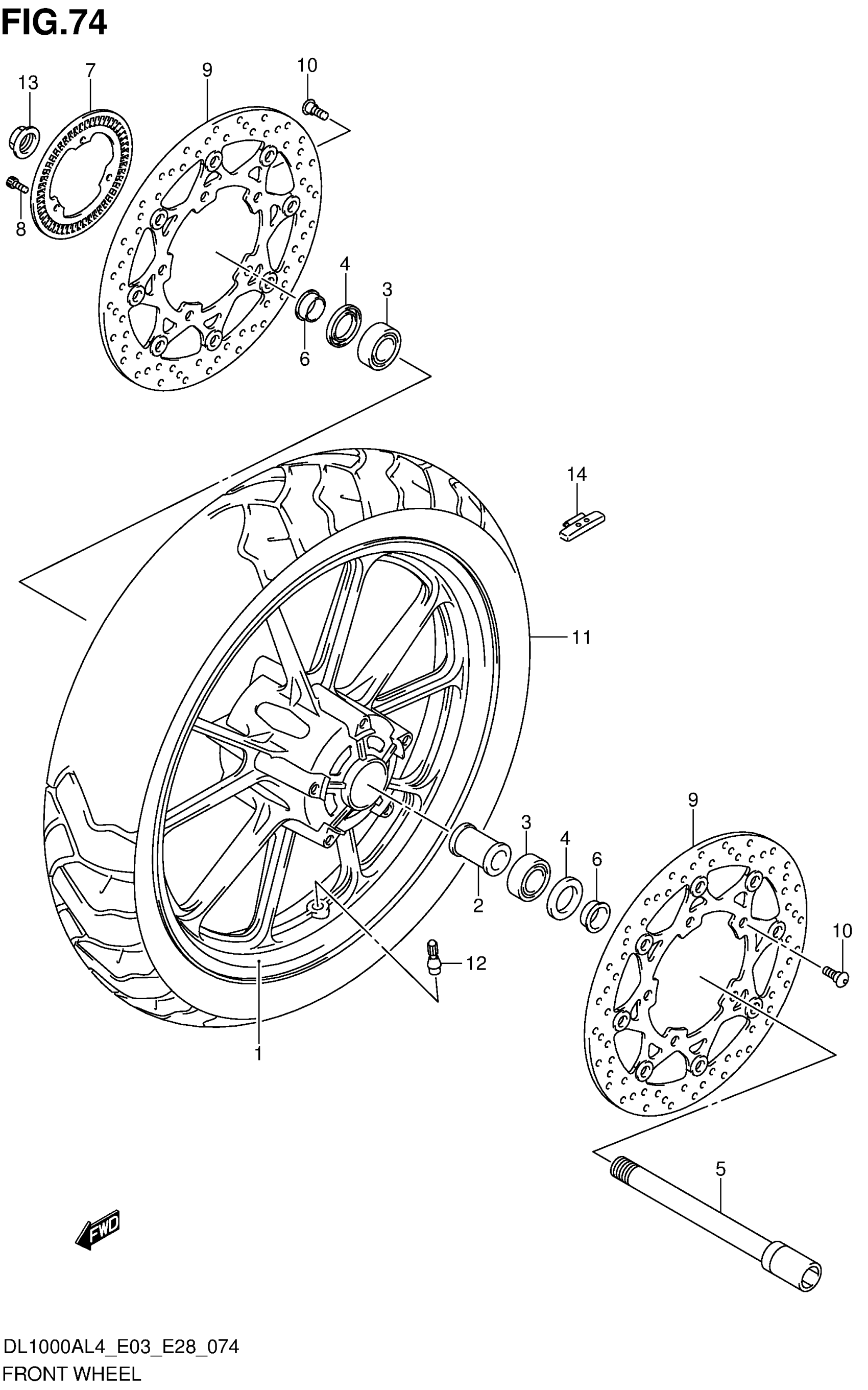

Suzuki DL1000AL4 (2014) FRONT WHEEL Diagram
