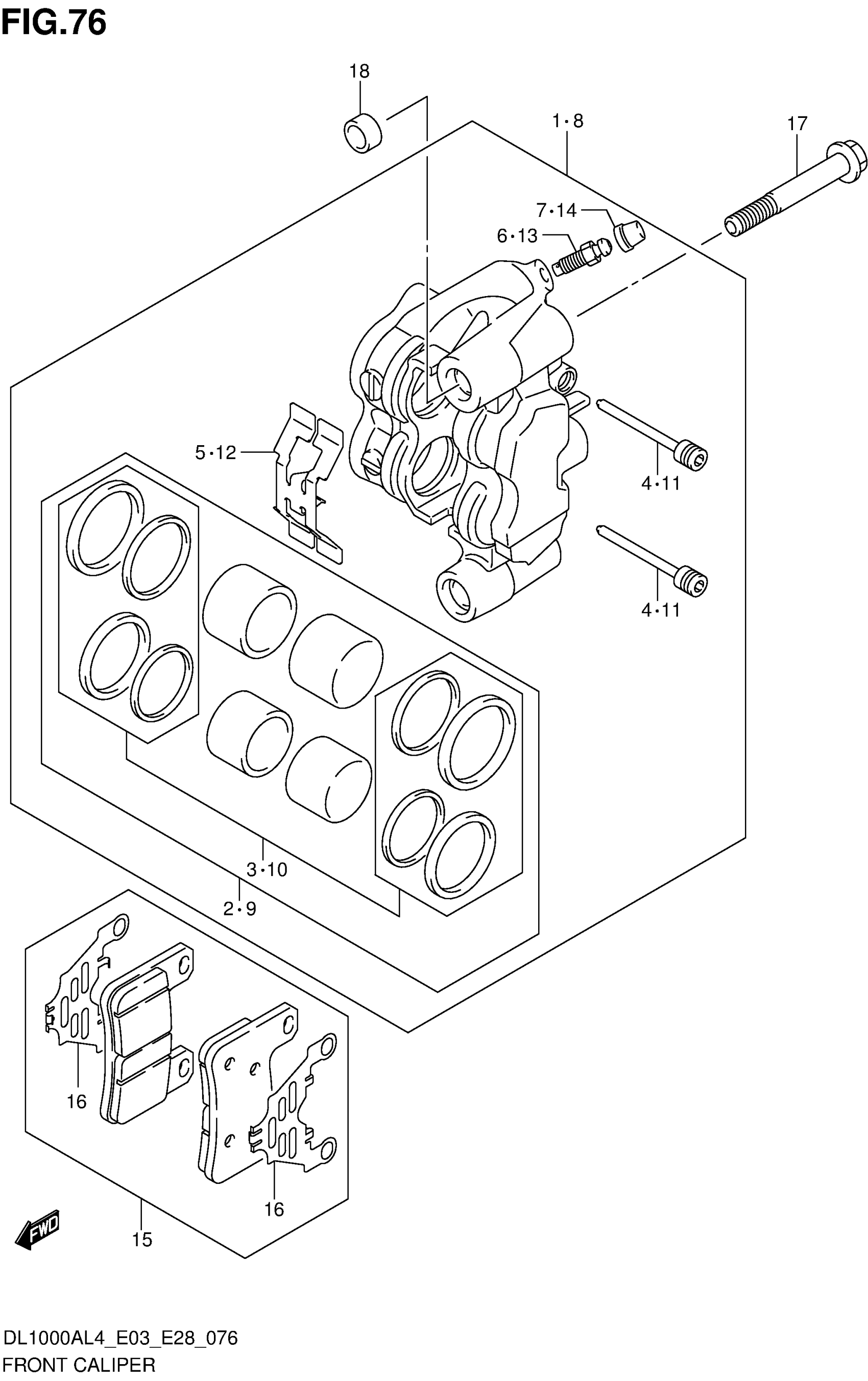

Suzuki DL1000AL4 (2014) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FR RH

59100-31J00-999

$537.27

2

PISTON SET

59100-31810

$142.88

3

SEAL SET, PISTON

59101-47810

$94.55

4

PIN, PAD

59141-41G10

$26.99

5

SPRING, PAD

59151-29G00

$12.48

6

BLEEDER

59121-18410

$8.73

7

CAP BLEEDER PLUG

55156-66310

$5.17

8

CALIPER ASSY,FR LH

59300-31J00-999

$550.70

9

PISTON SET

59100-31810

$142.88

10

SEAL SET, PISTON

59101-47810

$94.55

11

PIN, PAD

59141-41G10

$26.99

12

SPRING, PAD

59151-29G00

$12.48

13

BLEEDER

59121-18410

$8.73

14

CAP BLEEDER PLUG

55156-66310

$5.17

15

PAD & SHIM SET

59100-29860

$88.37

16

SHIM

59171-47H00

Unavailable

17

BOLT (10X70)

09103-10392

$4.90

18

PIN, CALIPER

59151-41G00

$11.64
