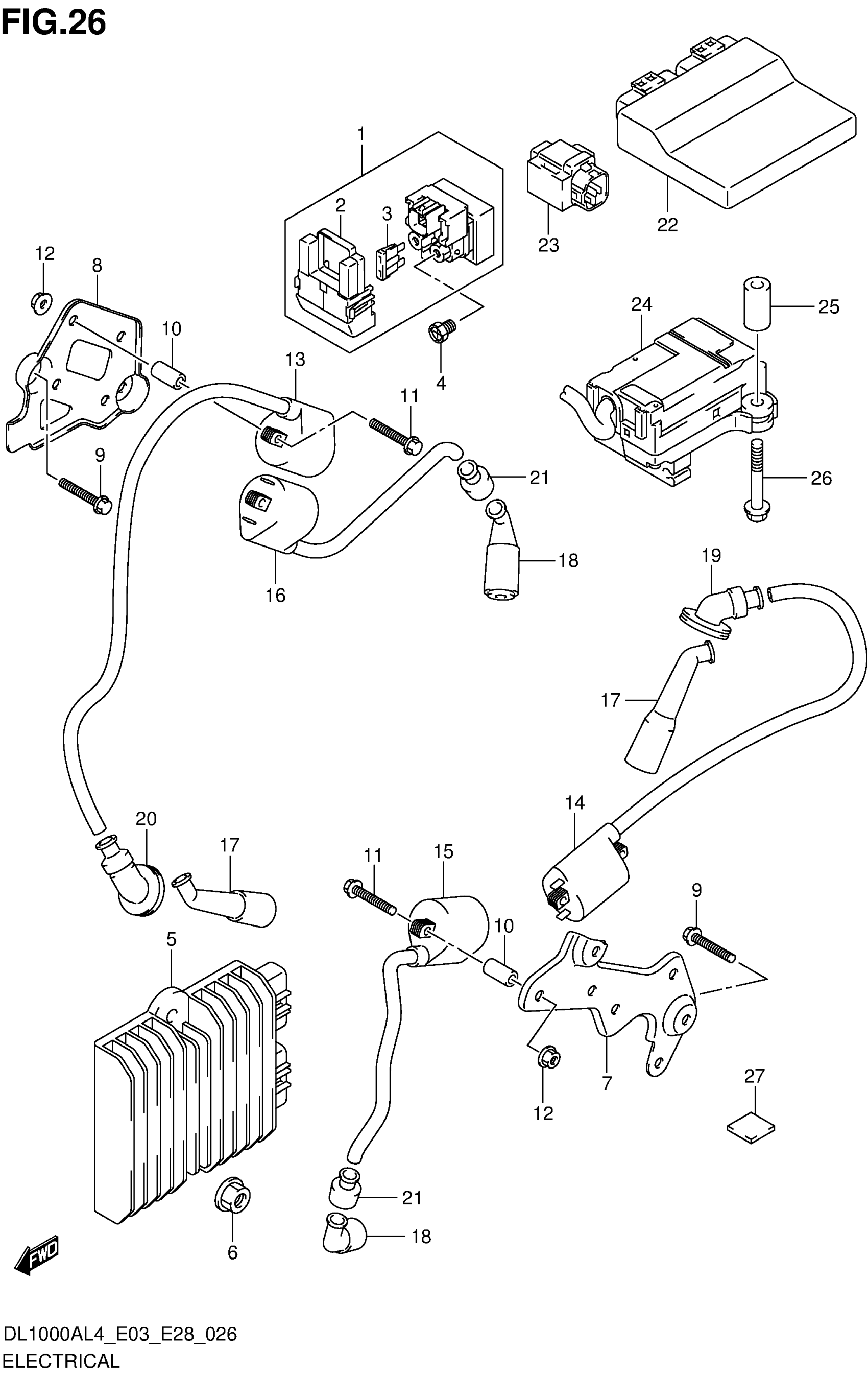

Suzuki DL1000AL4 (2014) ELECTRICAL (DL1000AL4 E03) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

$67.32

2

COVER, RELAY ASSY

31861-47E00

$16.15

3

FUSE (30A)

09481-30101

$2.26

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-31J00

$271.48

6

NUT

08316-1006A

$2.19

7

BRACKET, IGNITION COIL

33414-31J00

Unavailable

8

BRACKET, IGNITION COIL

33424-31J00

Unavailable

9

BOLT

01550-0620A

$1.97

10

SPACER (6.4X10X18)

09180-06195

$3.68

11

BOLT (6X35)

09103-06231

$3.23

12

NUT

09159-06096

$3.15

13

COIL ASSY,IGNITION This part replaces 33410-06G00.

33410-06G01

$99.25

14

COIL ASSY, IGNITION This part replaces 33410-17G00.

33410-17G01

$72.92

15

COIL ASSY, IGNITION

33410-20H00

Unavailable

16

COIL ASSY,IGNITION This part replaces 33410-26G00.

33410-26G01

$119.72

17

CAP ASSY,SPARK PLUG

33510-31G00

$39.09

18

CAP ASSY,SPARK PLUG

33510-31G10

$32.95

19

SEAL,HT CORD RR

33542-06G00

$8.12

20

SEAL,HT CORD FR

33542-06G10

$8.28

21

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

22

CONTROL UNIT, FI This part replaces 32920-31J10.

32920-31J12

$1,656.57

23

SENSOR ASSY,FUEL CUT

33960-27G00

$109.88

24

ACTUATOR ASSY This part replaces 33970-47H01.

33970-47H03

$422.63

25

SPACER (6.2X14.5X26)

09180-06345

$10.28

26

BOLT

01550-0655A

Unavailable

27

CUSHION

44534-24F00

$3.78
