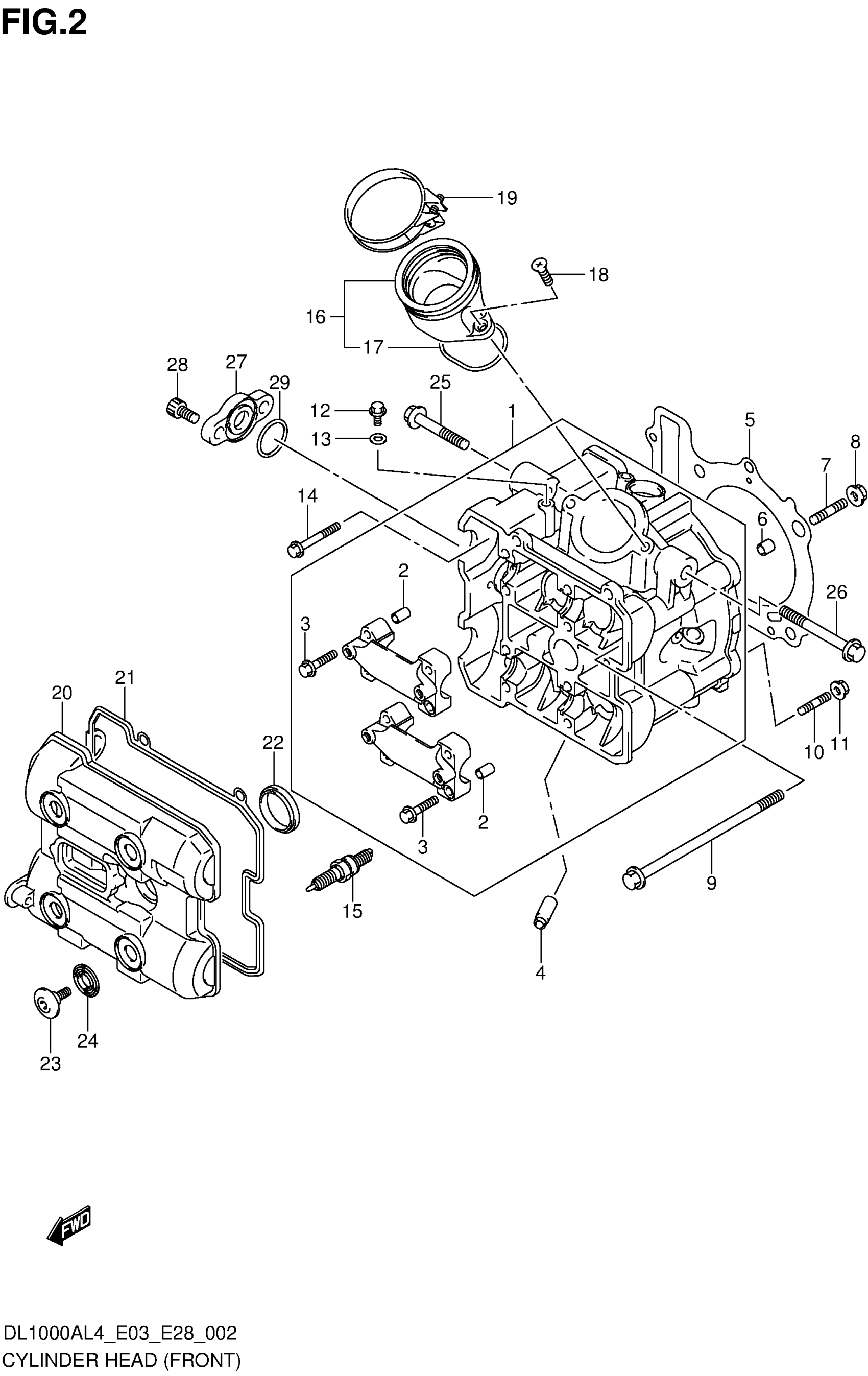

Suzuki DL1000AL4 (2014) CYLINDER HEAD (FRONT) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER FRONT

11100-31J00

Unavailable

2

PIN (8X11)

09206-08001

$1.78

3

BOLT (6X40)

09103-06266

$2.12

4

GUIDE, VALVE (OS:0.3) | OPT

11115-32E70

$33.35

5

GASKET, CYLINDER HEAD

11141-31J00

$52.18

6

PIN

04211-13189

$2.19

7

STUD BOLT

09108-08143

$3.78

8

NUT

08316-1008A

$2.45

9

BOLT (10X175)

11117-33H00

$15.16

10

STUD BOLT

09108-06096

$2.27

11

NUT

08316-1006A

$2.19

12

BOLT (6X12)

09103-06222

$2.26

13

GASKET (5.8X13X1.2)

09168-06023

$2.35

14

BOLT (6X60)

09103-06220

$2.47

15

PLUG,SPARK (LMAR8BI-9) | NGK

09482-00635

$24.47

16

PIPE,INTAKE FRO This part replaces 13101-31J00.

13101-31J01

$78.07

17

O RING (D:2.4,ID:55.6)

09280-55005

$6.42

18

SCREW

02122-0616B

$1.96

19

CLAMP

13170-40H00

Unavailable

20

COVER, CYLINDER HEAD

11171-31J00

$266.23

21

GASKET, CYLINDER HEAD COVER

11173-02F00

$36.79

22

GASKET

11178-17E00

$6.64

23

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.50

24

WASHER

11191-27E00

$4.27

25

BOLT (10X65) | RH

01550-1050A

$3.38

26

BOLT (10X85) | LH

01550-1070A

$3.72

27

COVER, CYLINDER HEAD NO.2

11134-31J00

Unavailable

28

BOLT (6X12)

09106-06075

$2.48

29

O RING (D:2.4,ID:19)

09280-19005

$2.33
