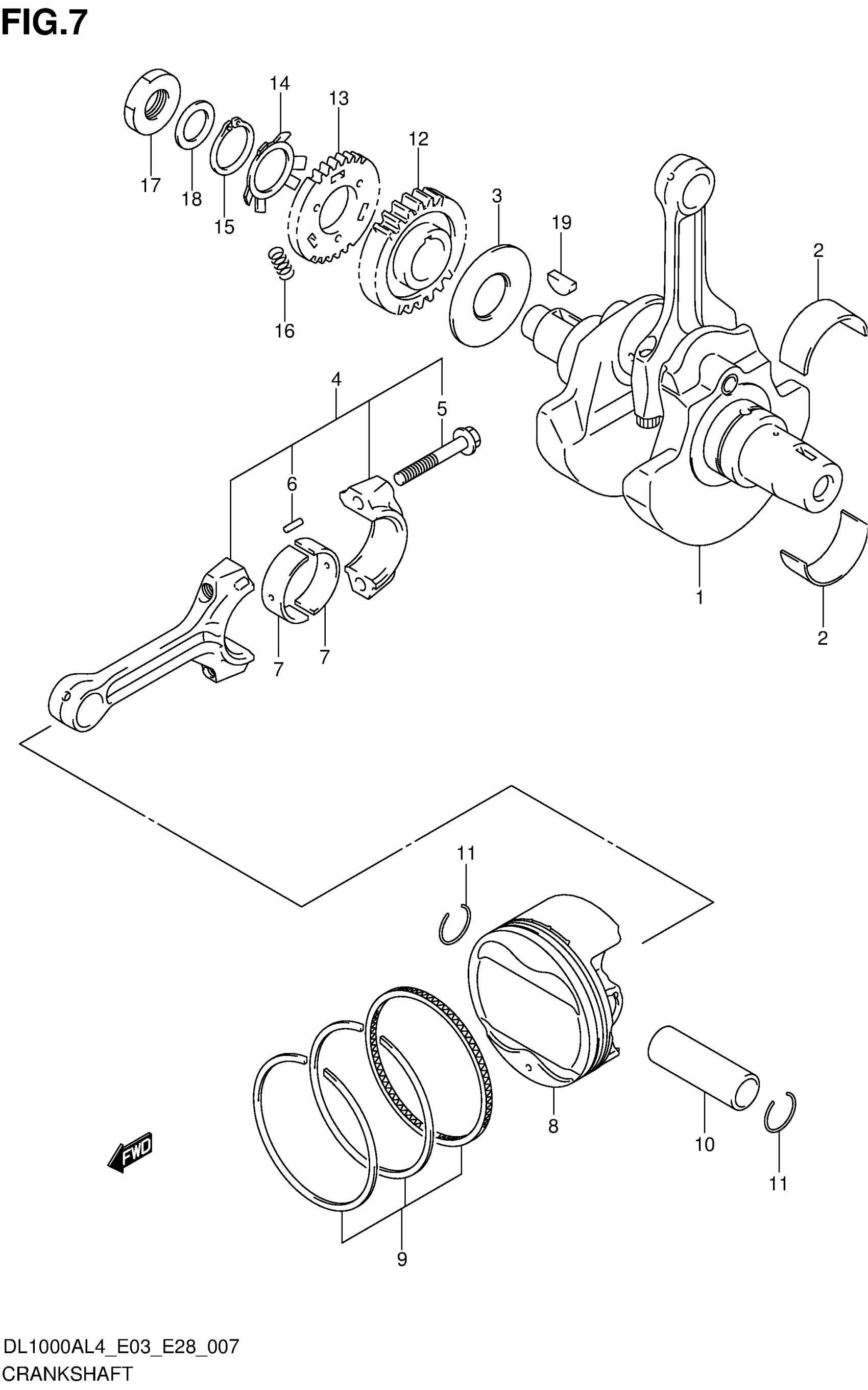

Suzuki DL1000AL4 (2014) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

12220-31J00

$1,404.12

2

BEARING,CRANKSHAFT

12229-31J00-0A0

$25.57

2

BEARING,CRANKSHAFT

12229-31J00-0B0

Unavailable

2

BEARING,CRANKSHAFT

12229-31J00-0C0

$26.05

3

WASHER,CRANK THRUST

12652-38B00

Unavailable

4

CONNECTING ROD ASSY

12160-06G10

Unavailable

5

BOLT

12163-06G00

$20.85

6

PIN

12165-27A50

$1.54

7

BEARING,CRANK PIN

12164-31J00-0A0

Unavailable

7

BEARING,CRANK PIN

12164-31J00-0B0

$22.78

7

BEARING,CRANK PIN

12164-31J00-0C0

Unavailable

7

BEARING,CRANK PIN

12164-31J00-0D0

Unavailable

8

PISTON

12111-31J00-0F0

Unavailable

9

RING SET,PISTON

12140-31J00

$112.18

10

PIN, PISTON

12151-02F10

$29.15

11

CIRCLIP

09381-22002

$1.65

12

GEAR, PRIMARY DRIVE (NT:31)

21111-02F11

Unavailable

13

GEAR, PRIMARY DRIVE SCISSORS (NT:31)

21112-02F00

Unavailable

14

WASHER

21114-02F00

$10.65

15

CIRCLIP

08331-31409

$3.58

16

SPRING

09440-07001

$2.38

17

NUT

09140-22012

$13.20

18

WASHER

09164-22007

$7.35

19

KEY

09420-06001

$9.27
