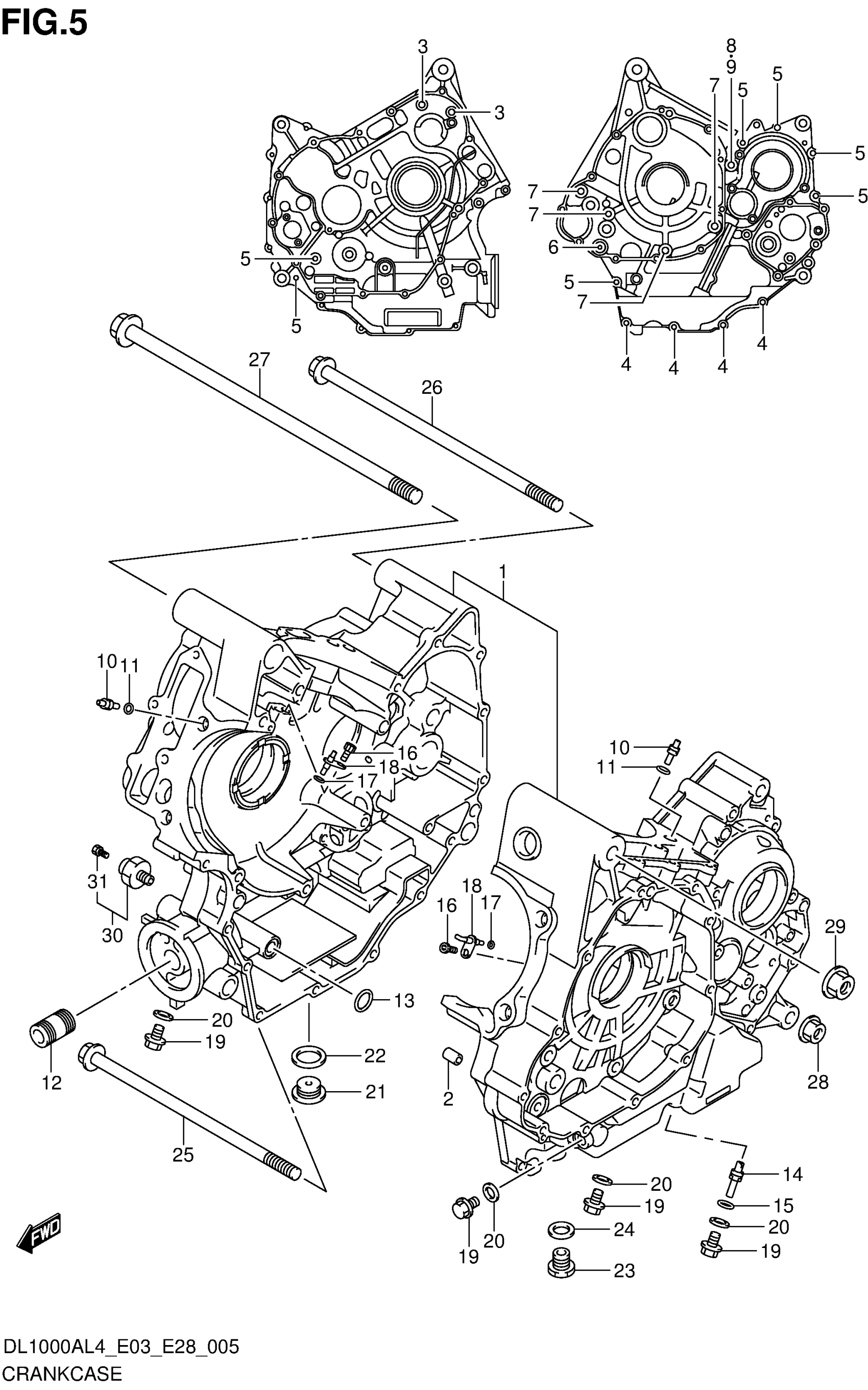

Suzuki DL1000AL4 (2014) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11306-06830

$2,996.18

2

PIN

11319-33E00

Unavailable

3

BOLT (8X110)

09106-08142

Unavailable

4

BOLT

01547-0630A

$2.32

5

BOLT

01547-0670A

$2.92

6

BOLT

01547-0685A

Unavailable

7

BOLT

07120-0890A

Unavailable

8

BOLT (8X125)

09106-08136

Unavailable

9

WASHER

08322-0108A

$1.92

10

JET AIR(14)

09493-28010

$16.57

11

O RING (D:1.2,ID:4)

09280-04004

$1.91

12

UNION,OIL STAND

16591-06B01

$7.05

13

O RING (D:1.9,ID:12.6)

09280-12009

$3.18

14

JET,T/M OIL GALLERY

09493-20014

$16.87

15

O RING (D:1.2,ID:4)

09280-04004

$1.91

16

BOLT (6X12)

09106-06075

$2.48

17

O RING (D:1.2,ID:4.7)

09280-05007

$1.92

18

JET,PISTON COOLING

11390-06G10

Unavailable

19

BOLT (8X12)

01550-0812A

$2.32

20

GASKET (8.2X14X1)

09168-08016

$1.65

21

PLUG (16X8)

09248-16012

$4.64

22

GASKET (16X22X2)

09168-16002

$1.91

23

PLUG (14X20) | OIL DRAIN

09247-14036

$6.17

24

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

25

BOLT (10X225)

09103-10205

$19.52

26

BOLT (10X265)

09103-10226

$16.75

27

BOLT (12X300)

09103-12016

$26.28

28

NUT

08319-3110A

$2.73

29

NUT

09159-12056

$7.37

30

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$25.13

31

BOLT

37822-33D00

$4.35
