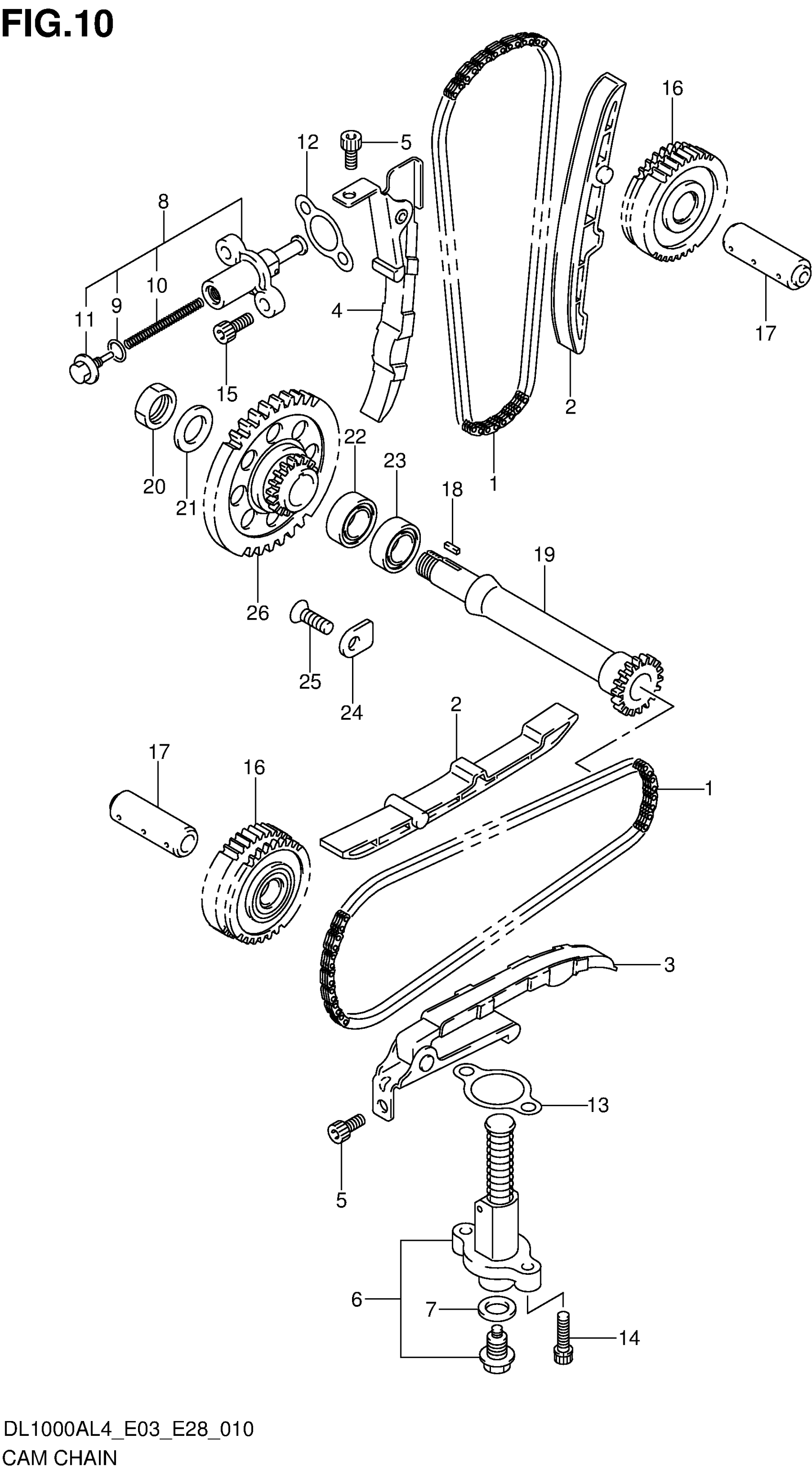

Suzuki DL1000AL4 (2014) CAM CHAIN Diagram

#

Description
Price

1

CHAIN,CAMSHAFT DRIVE

12760-23F20

$68.83

2

GUIDE,CAM CHAIN

12771-06G00

$34.15

3

TENSIONER,CAM CHAIN FR

12810-06G00

$96.22

4

TENSIONER,CAM CHAIN,REAR

12815-06G00

$96.22

5

BOLT

07120-0612A

$2.50

6

ADJUSTER ASSY, FRONT TENSIONER

12832-05A10

$167.15

7

GASKET (12X21X2)

09168-12018

$3.08

8

ADJUSTER ASSY,TENSIONER

12830-30A01

$121.77

9

O RING

12832-02A00

$2.82

10

SPRING

12833-30A01

Unavailable

11

PLUG

12834-02A00

Unavailable

12

.GASKET,TENSIONER ADJUSTER

12837-19B10

$2.73

13

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.25

14

BOLT (6X25)

07130-0625A

$2.62

15

BOLT

07130-0620A

$2.50

16

GEAR, CAM CHAIN IDLER NO.2

12750-31J00

Unavailable

17

SHAFT,IDLER NO.2

12755-31J00

Unavailable

18

KEY

09421-04004

$3.99

19

SHAFT,IDLER

12716-06G00

$147.77

20

NUT This part replaces 09140-16001.

09140-16005

$3.75

21

SHIM (16X26X1.5)

09181-16212

Unavailable

22

BEARING | RH

08112-63030

Unavailable

23

BEARING (25X47X8) | LH

09262-25006

$25.54

24

RETAINER

24741-20A00

$2.81

25

SCREW (6X12)

09126-06011

$2.03

26

SPROCKET, IDLER NO.1

12731-06G01

Unavailable
