2014 Suzuki DL1000AL4 AIR Cleaner Diagram

← All diagrams

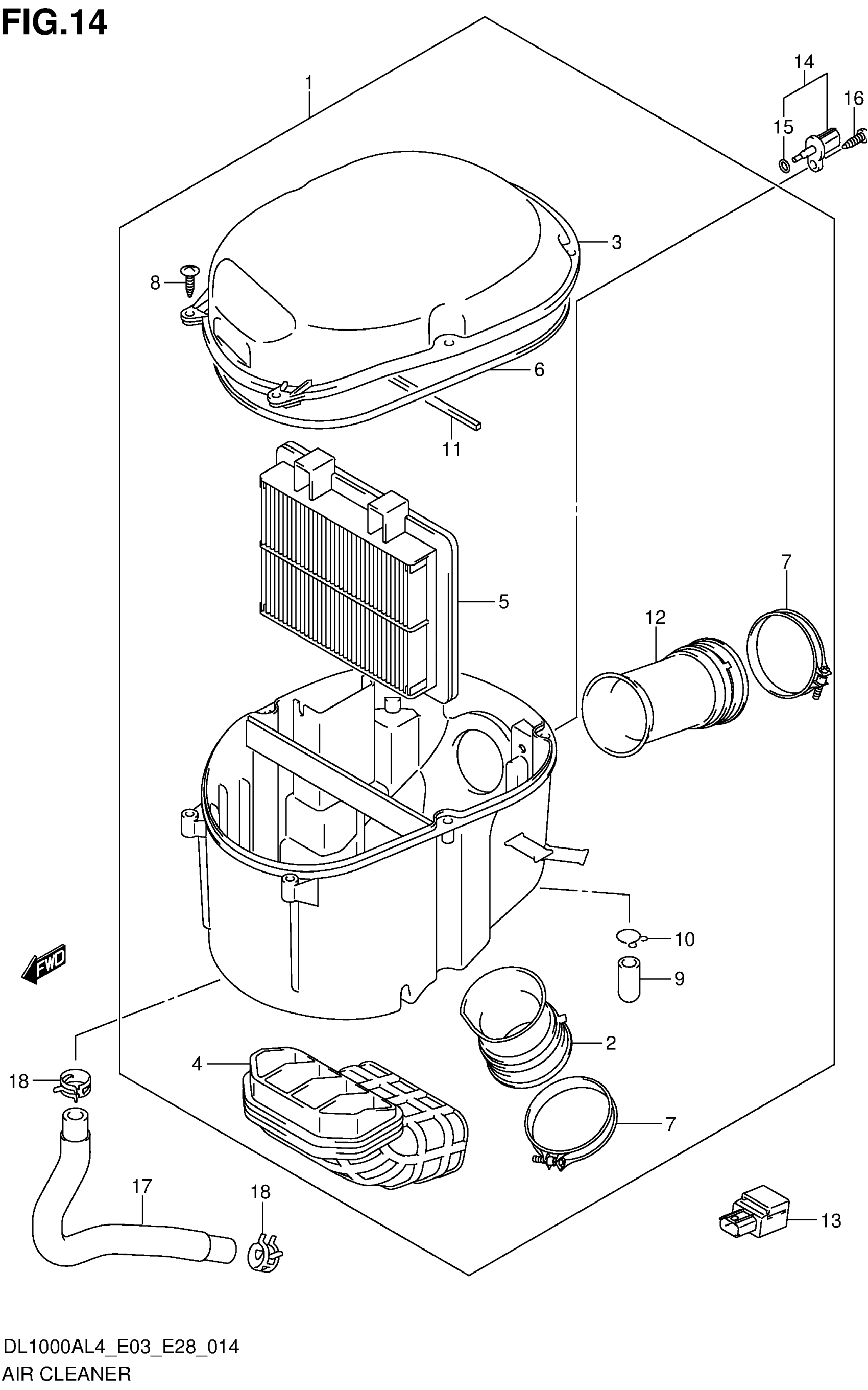

Find the part on the AIR Cleaner diagram for your 2014 Suzuki DL1000AL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki DL1000AL4 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR

13700-31J00

1
Out of stock

2

TUBE, OUTLET FR

13881-31J00

1
Out of stock

3

CAP, AIR CLEANER

13741-31J00

1
Out of stock

4

TUBE, INLET

13891-31J00

1
Out of stock

5

FILTER, AIR CLEANER

13780-31J00

1
Out of stock

6

GASKET, AIR CLEANER

13746-31J00

1
Out of stock

7

CLAMP, OUTLET TUBE

13827-31J00

2
Out of stock

8

SCREW

03541-0520B

6
Out of stock

9

.PLUG This part replaces 13878-10G00.

13878-10G01

1
Out of stock

10

CLIP

09401-14301

1
Out of stock

11

GASKET, AIR CLEANER

13746-31J10

1
Out of stock

12

TUBE, OUTLET RR

13882-31J00

1
Out of stock

13

SENSOR BOOST

18590-32G00

2
Out of stock

14

SENSOR, AIR TEMP

13650-41F10

1
Out of stock

15

O-RING

13655-41F10

1
Out of stock

16

SCREW

03511-0516A

1
Out of stock

17

TUBE,BREATHER

13850-31J00

1
Out of stock

18

CLIP

09401-22405

2
Out of stock
